GS1100GK 1982 (Z) USA (E03)

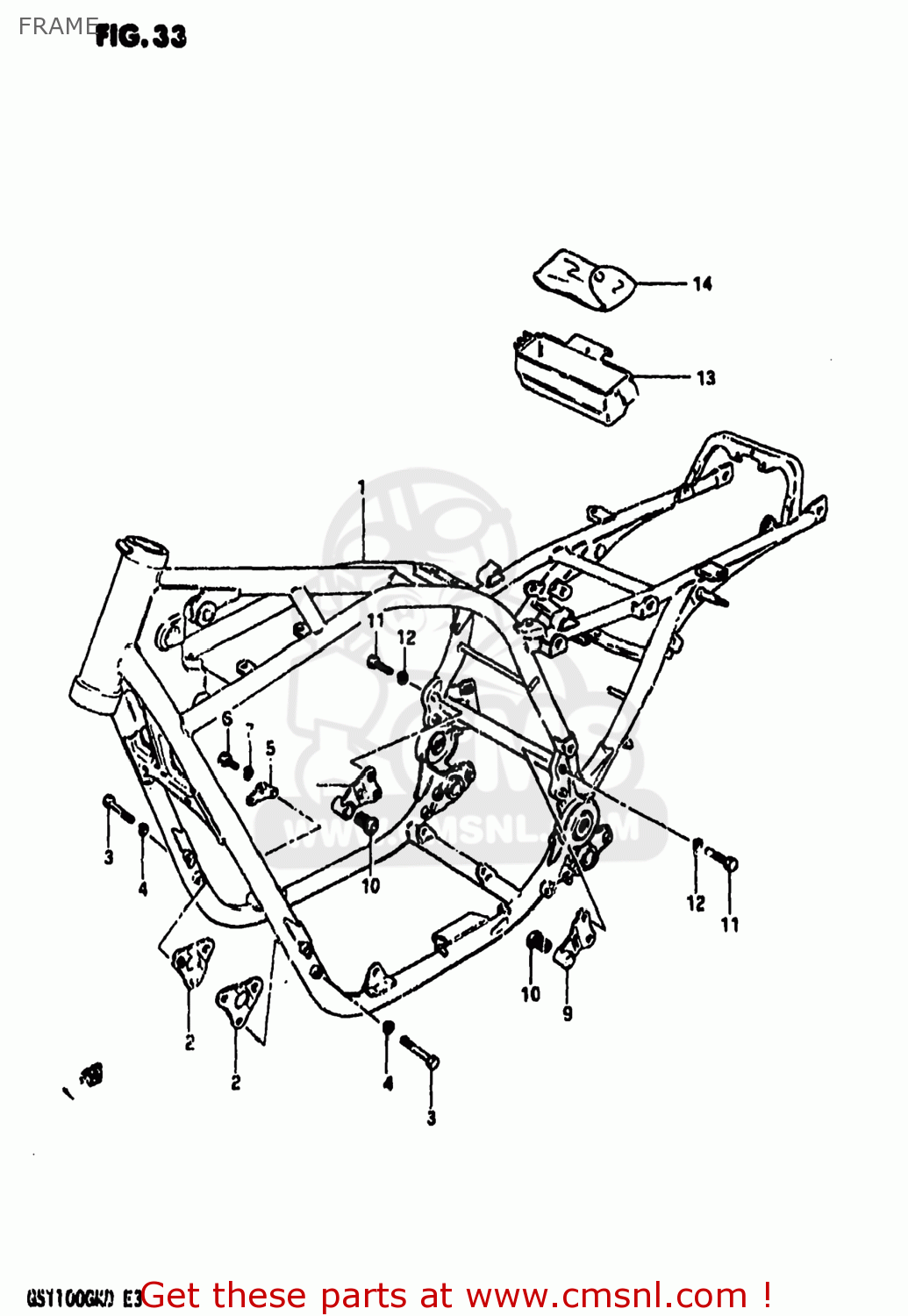

Frame diagram GS1100GK 1982 (Z) USA (E03)
FRAME GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110049450019
ref: 1
FRAME
€ 0.00
2
4191049450019
ref: 2
PLATE,ENGINE MOUNTING
€ 0.00
3
0110708658
ref: 3
01500-0865B
BOLT
€ 3.00
4
0832121088
ref: 4
08321-01087
LOCK WASHER
€ 2.00
5
4199349450019
ref: 5
PLATE,ENGINE MOUNTING
€ 0.00
6
0110708168
ref: 6
01500-0816B
BOLT
€ 2.00
7
0832121088
ref: 7
08321-01087
LOCK WASHER
€ 2.00
8-1
4197049450019
ref: 8-1
PLATE,ENGINE MOUNTING
€ 0.00
8-2
4197045100019
ref: 8-2
PLATE,ENGINE MOUNTING
€ 0.00
9-1
4198049450019
ref: 9-1
PLATE,ENGINE MOUNTING
€ 0.00
9-2
4198045350019
ref: 9-2
PLATE,ENGINE MOUNTING
€ 0.00
10
0931910035
ref: 10
09319-10042
BUSHING
€ 16.50
11
0110708408
ref: 11
01500-0840A
BOLT 8X40
€ 3.00
12
0832121088
ref: 12
08321-01087
LOCK WASHER
€ 2.00
13
4155145110
ref: 13
HOLDER,TOOL
€ 29.00
14
0980000251
ref: 14
09800-21025
TOOL SET
€ 43.00
