TURN SIGNAL LAMP

GS1100GK 1982 (Z) USA (E03)

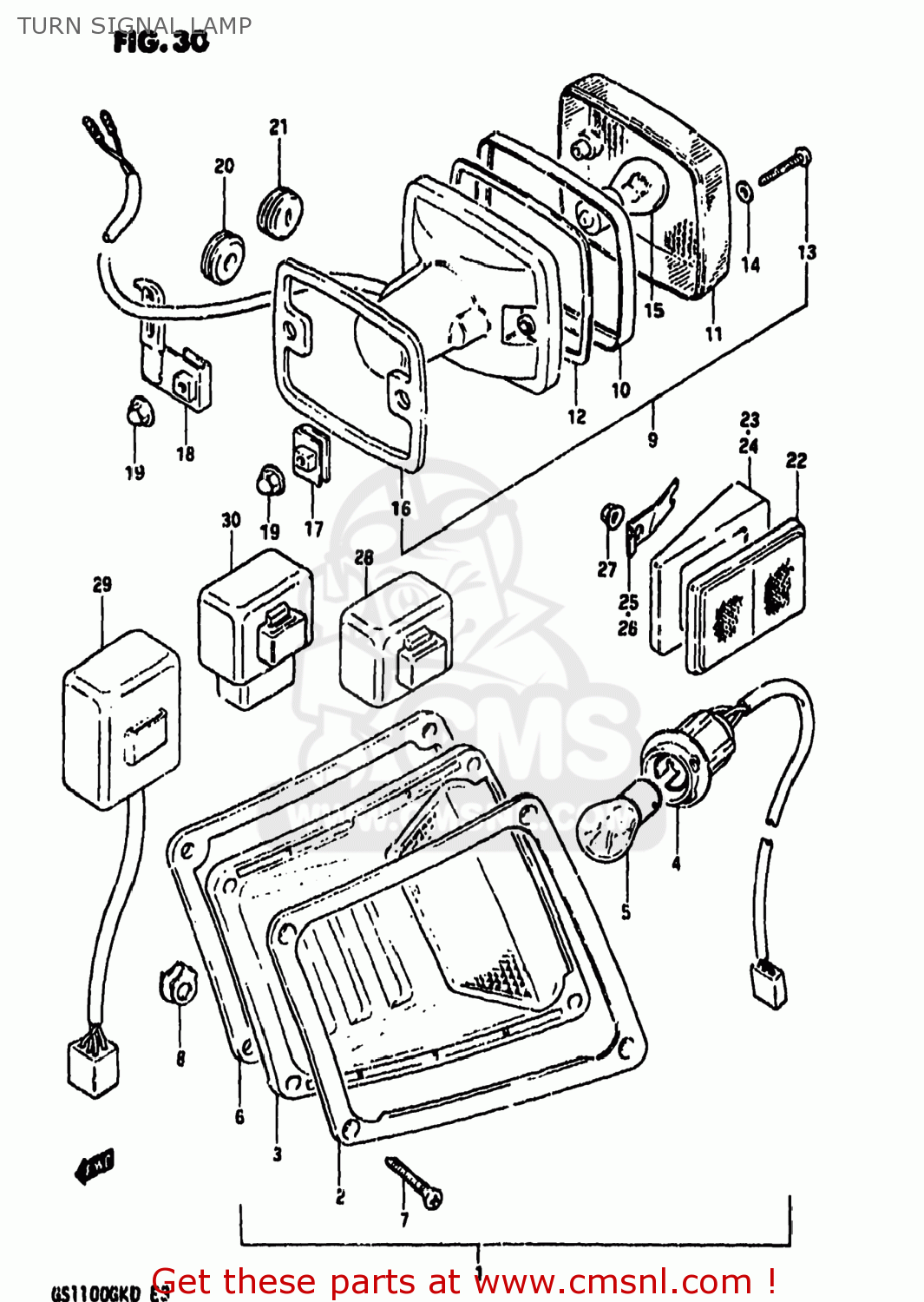

Turn signal lamp diagram GS1100GK 1982 (Z) USA (E03)

TURN SIGNAL LAMP GS1100GK 1982 (Z) USA (E03)
TURN SIGNAL LAMP GS1100GK 1982 (Z) USA (E03)
TURN SIGNAL LAMP GS1100GK 1982 (Z) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3560149410
ref: 1-1
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 0.00
1-2
3560149411
ref: 1-2
35601-49412
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 18.50
1-3
3560249410
ref: 1-3
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 0.00
1-4
3560249411
ref: 1-4
35602-49412
LAMP ASSEMBLY,FRONT TURN SIGNAL
€ 17.00
2-1
3561149410
ref: 2-1
RIM,FRONT TURN SIGNAL LAMP
€ 15.00
2-2
3561149411
ref: 2-2
35611-49412
RIM,FRONT TURN SIGNAL LAMP
€ 12.50
2-3
3563149410
ref: 2-3
RIM,FRONT TURN SIGNAL LAMP
€ 0.00
2-4
3563149411
ref: 2-4
35631-49412
RIM,FRONT TURN SIGNAL LAMP
€ 6.50
3-1
3561049410
ref: 3-1
35610-49411
COVER,COWLING
€ 43.00
3-2
3563049410
ref: 3-2
35630-49411
COVER,COWLING,LEFT
€ 34.50
4
3561849410
ref: 4
SOCKET & CORD
€ 0.00
5
0947112035
ref: 5
BULB(12V23W)
0947112035
€ 5.50
6
3561349410
ref: 6
GASKET,TURN SIGNAL LAMP
€ 12.50
7
3562349410
ref: 7
SCREW,TURN SIGNAL LAMP
€ 2.50
8
9469149400
ref: 8
PLATE
9469149400
€ 1.50
9
3560349410
ref: 9
LAMP ASSEMBLY,REAR TURN SIGNAL
€ 0.00
10
3565149410
ref: 10
RIM
€ 6.00
11
3565249410
ref: 11
LENS,TURN SIGNAL
€ 0.00
12
3561349230
ref: 12
GASKET (NAS)
3561349230
€ 5.00
13
3562549410
ref: 13
BOLT
€ 0.00
14
3562743010
ref: 14
GASKET (NAS)
3562743010
€ 2.00
15
0947112006
ref: 15
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
16
3565349410
ref: 16
GASKET
€ 0.00
17
3569349410
ref: 17
PLATE,RR TURN SIGNAL
€ 0.00
18
3569449410
ref: 18
CUSHION
€ 0.00
19
0831311048
ref: 19
08313-11047
NUT 4MM
€ 2.00
20
0930807009
ref: 20
GROMMET
€ 2.00
21
3566149410
ref: 21
GROMMET,TURN SIGNAL LAMP
€ 0.00
22
3597049330
ref: 22
REFLEX REFLECTOR,RR
3597049330
€ 16.50
23-1
3597749430
ref: 23-1
SPACER
€ 3.00
23-2
3597749431
ref: 23-2
SPACER
€ 2.50
24-1
3597849430
ref: 24-1
SPACER
€ 3.00
24-2
3597849431
ref: 24-2
SPACER
€ 0.00
25
3599749430
ref: 25
WASHER,RIGHT
3599749430
€ 1.50
26
3599849430
ref: 26
WASHER,REFLECTOR LH
€ 1.00
27
0831616058
ref: 27
08316-1005A
NUT
€ 2.50
28
3861049231
ref: 28
RELAY ASSY,TURNSIGNAL
3861049231
€ 71.00
29
3883049201
ref: 29
38830-49X00
UNIT,TURN SIGNAL CONTROL
€ 269.50
30
3883049500
ref: 30
38830-49X00
UNIT,TURN SIGNAL CONTROL
€ 269.50
