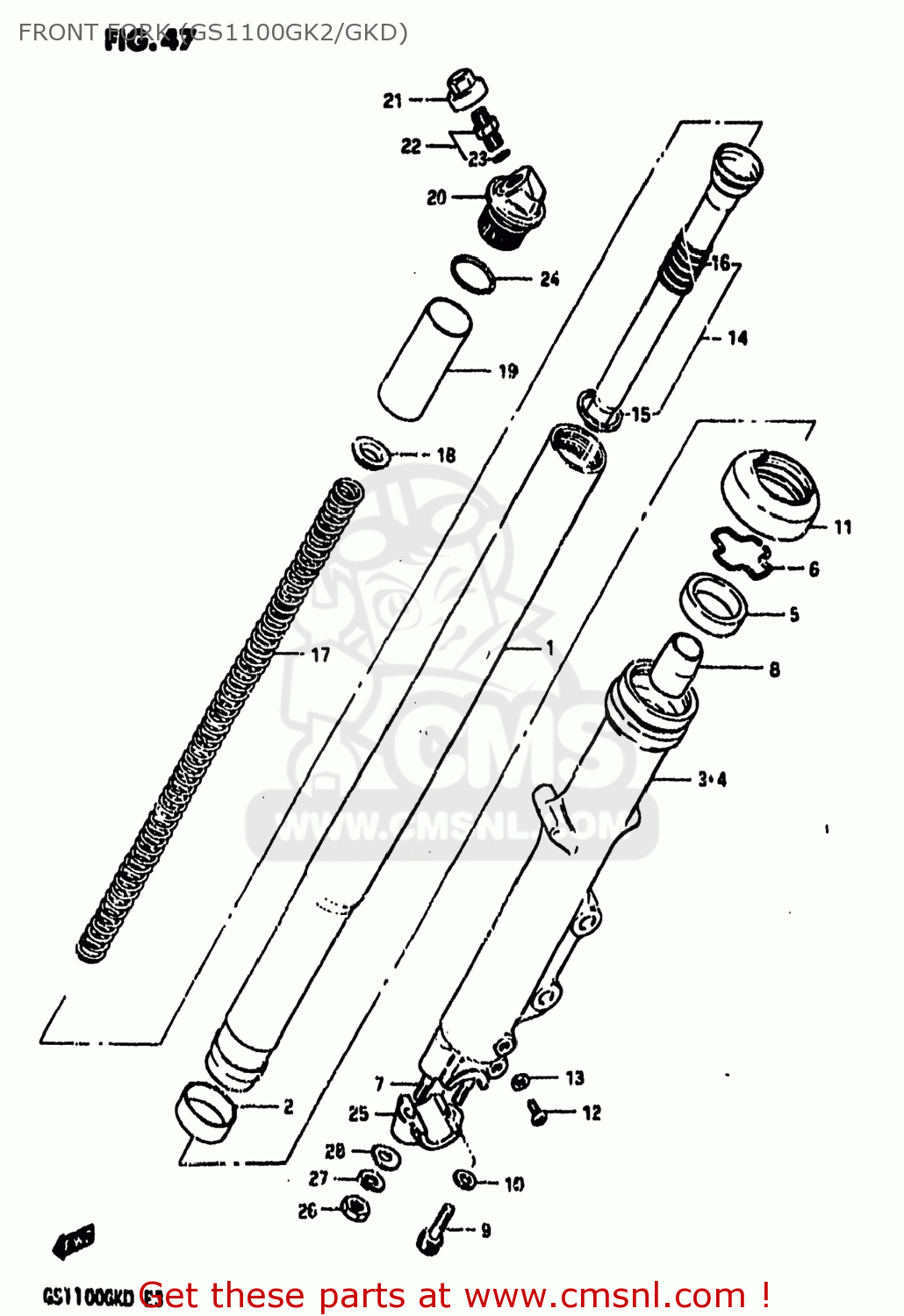

FRONT FORK (GS1100GK2/GKD)

ref

part #

description

quantity

0

5110349440
ref: 0

DAMPER ASSEMBLY,RIGHT

€ 0.00

0-1

5110449440
ref: 0-1

DAMPER ASSEMBLY,LEFT

€ 0.00

1

5111049440
ref: 1

TUBE,FORK,INNER

€ 245.00

2

5112149440
ref: 2

METAL,SLIDE FRONT FORK

€ 16.50

3

5113049440
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 227.50

4

5114049440
ref: 4

TUBE,OUTER,LEFT

€ 0.00

5

5115349440
ref: 5
51153-27C20

OIL SEAL,FRONT FORK

€ 22.00

6

5115649440
ref: 6

RING,OIL SEAL STOPPER

€ 5.50

7

0142108308
ref: 7
09108-08142

STUD BOLT

€ 2.00

8

5119514100
ref: 8

PIECE,OIL LOCK

€ 8.50

9

5114740300
ref: 9

BOLT,CYLINDER

€ 5.50

10

5114840300
ref: 10

GASKET,CYLINDER (NAS)

€ 2.50

11

5117349440
ref: 11

SEAL,DUST

€ 11.50

12

0211204088
ref: 12
02112-04087

SCREW

€ 1.50

13

5118303010
ref: 13

GASKET,DRAIN,PLUG (NAS)

€ 3.00

14

5114649440
ref: 14

CYLINDER,FRONT FORK

€ 74.50

15

5119649440
ref: 15

RING,PISTON

€ 0.00

16

5117749440
ref: 16

SPRING,REBOUND

€ 6.50

17

5117149440
ref: 17

SPRING,FRONT FORK

€ 30.00

18

5117240300
ref: 18

GUIDE

€ 5.00

19

5117649440
ref: 19

SPACER,SPRING

€ 4.50

20

5135149440
ref: 20

CAP,FORK INNER TUBE

€ 27.00

21

5129449000
ref: 21

CAP,VALVE

€ 22.50

22

5129349001
ref: 22

VALVE

€ 18.00

23

5111741211
ref: 23

O RING

€ 6.50

24

5111740300
ref: 24

O RING

€ 2.50

25

5113249440
ref: 25

HOLDER,AXLE

€ 28.00

26

0914008005
ref: 26
09140-08017

NUT (8MM)

€ 1.50

27

0832121086
ref: 27
08321-0108A

WASHER,LOCK,8.

€ 2.50

28

0832221088
ref: 28
08322-01087

WASHER

€ 2.00

all assemblies
