CAM SHAFT-VALVE
GS1100GK 1982 (Z) USA (E03)

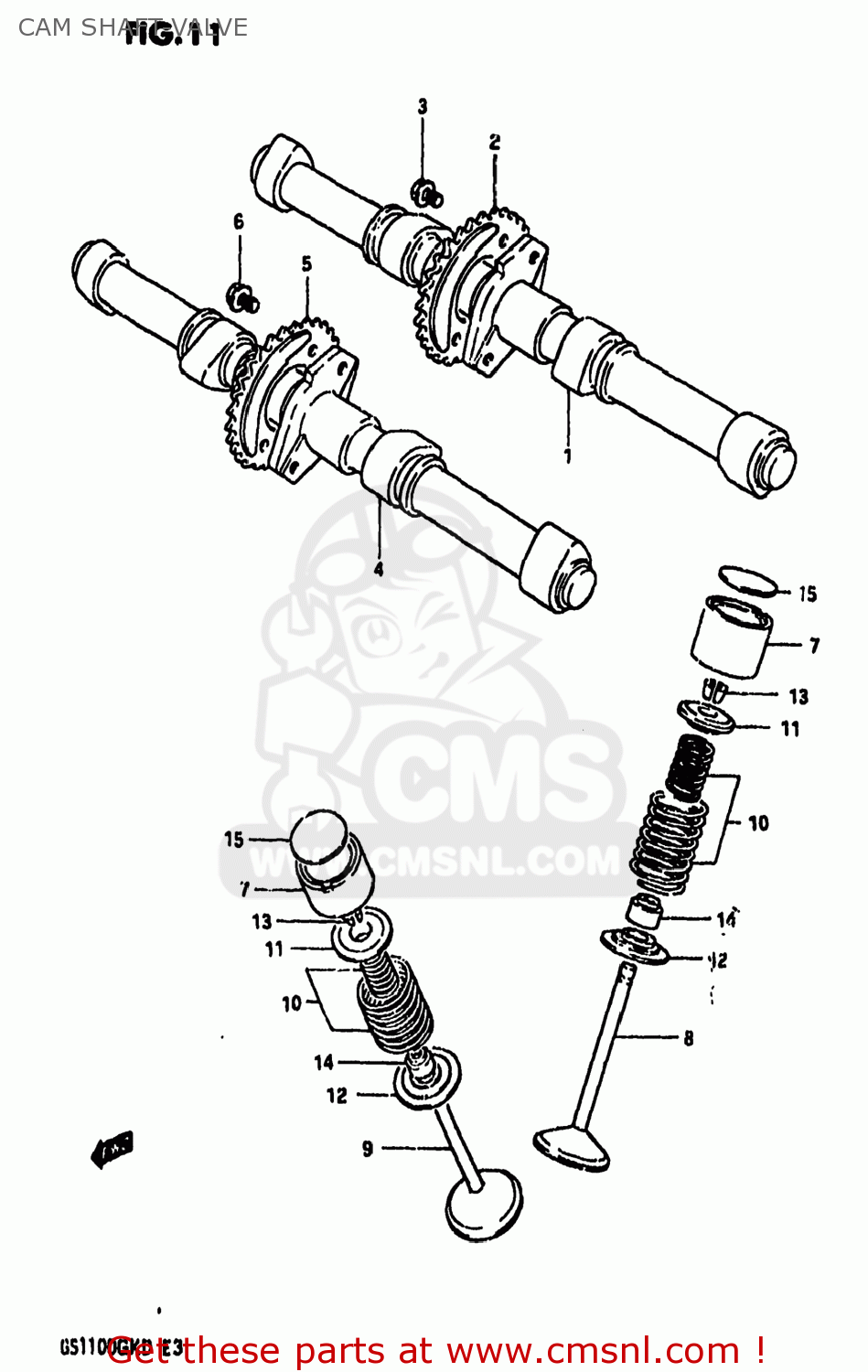

Cam shaft-valve diagram GS1100GK 1982 (Z) USA (E03)
CAM SHAFT-VALVE GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1271149001
ref: 1
CAMSHAFT,INTAKE
€ 236.00
2
1274149002
ref: 2
SPROCKET,INTAKE CAMSHAFT
€ 47.00
3
0910307001
ref: 3
BOLT(7X11)
€ 2.00
4
1272149001
ref: 4
CAMSHAFT,EXHAUST
€ 287.00
5
1275149002
ref: 5
SPROCKET,EXHAUST CAMSHAFT
€ 31.50
6
0910307001
ref: 6
BOLT(7X11)
€ 2.00
7
1289145000
ref: 7
12891-45001
TAPPET
€ 45.00
8
1291149020
ref: 8
VALVE,INTAKE
€ 31.00
9
1291249020
ref: 9
VALVE,EXHAUST
€ 60.00
10
1292045010
ref: 10
12920-45011
SPRING SET,VALVE
€ 17.00
11
1293145000
ref: 11
12931-45001
RETAINER,VALVE SPRING
€ 6.00
12
1293345001
ref: 12
SEAT,VALVE SPRING
€ 5.50
13
1293245010
ref: 13
COTTER VALVE
€ 2.50
14
0928907002
ref: 14
SEAL,OIL(7X14.4X9)
€ 3.00
15-1
1289245000
ref: 15-1
12892-45000-215
SHIM,TAPPET
€ 17.00
15-10
1289245009
ref: 15-10
12892-45000-260
SHIM,TAPPET
€ 16.00
15-11
1289245010
ref: 15-11
12892-45000-265
SHIM,TAPPET
€ 17.00
15-12
1289245011
ref: 15-12
12892-45000-270
SHIM,TAPPET
€ 17.00
15-13
1289245012
ref: 15-13
12892-45000-275
SHIM,TAPPET
€ 17.00
15-14
1289245013
ref: 15-14
12892-45000-280
SHIM,TAPPET
€ 16.50
15-15
1289245014
ref: 15-15
12892-45000-285
SHIM,TAPPET
€ 17.00
15-16
1289245015
ref: 15-16
12892-45000-290
SHIM,TAPPET
€ 17.00
15-17
1289245016
ref: 15-17
12892-45000-295
SHIM,TAPPET
€ 17.00
15-18
1289245017
ref: 15-18
12892-45000-300
SHIM,TAPPET
€ 17.00
15-19
1289245018
ref: 15-19
12892-45000-305
SHIM,TAPPET
€ 16.50
15-2
1289245001
ref: 15-2
12892-45000-220
SHIM,TAPPET
€ 16.50
15-20
1289245019
ref: 15-20
12892-45000-310
SHIM,TAPPET
€ 17.00
15-3
1289245002
ref: 15-3
12892-45000-225
SHIM,TAPPET
€ 17.00
15-4
1289245003
ref: 15-4
12892-45000-230
SHIM,TAPPET
€ 16.00
15-5
1289245004
ref: 15-5
12892-45000-235
SHIM,TAPPET
€ 16.50
15-6
1289245005
ref: 15-6
12892-45000-240
SHIM,TAPPET
€ 17.00
15-7
1289245006
ref: 15-7
12892-45000-245
SHIM,TAPPET
€ 17.00
15-8
1289243008
ref: 15-8
SHIM, TAPPET (T:2.50)
€ 0.00
15-9
1289245008
ref: 15-9
12892-45000-255
SHIM,TAPPET
€ 16.50
16
1280045810
ref: 16
12800-45811
SHIM SET,TAPPET
€ 1,227.00
16
1280045810
ref: 16
12800-45811
SHIM SET,TAPPET
€ 1,227.00
17
9900069480
ref: 17
99000-69521
CASE
€ 152.50
