SIDE BAG (GS1100GKZ)
GS1100GK 1982 (Z) USA (E03)

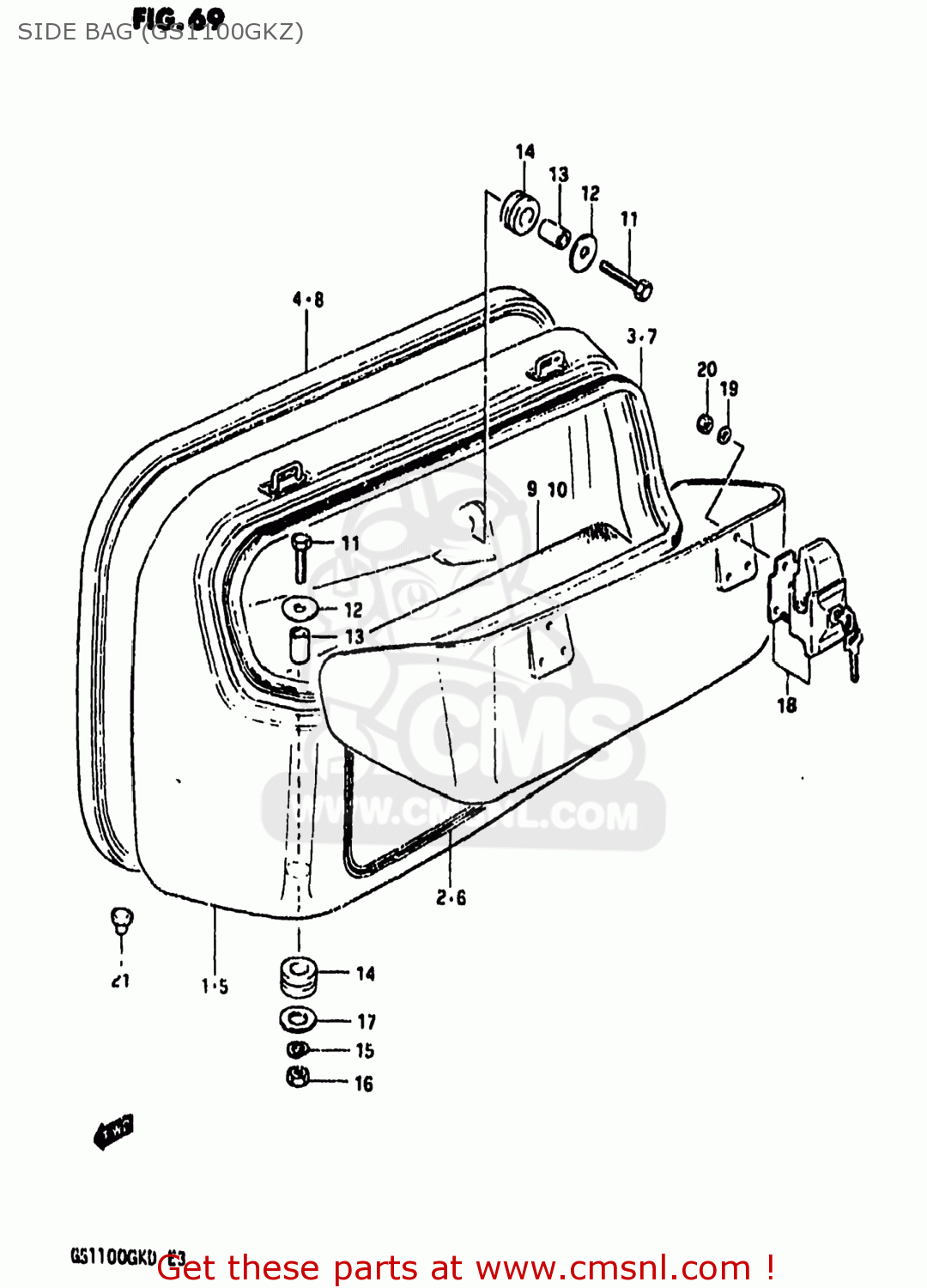

Side bag (gs1100gkz) diagram GS1100GK 1982 (Z) USA (E03)
SIDE BAG (GS1100GKZ) GS1100GK 1982 (Z) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
9540049810019
ref: 1-1
95400-49821-019
SIDE BAG ASSEMBLY,RIGHT
€ 1,028.50
1-2
954004981014A
ref: 1-2
95400-49821-14A
SIDE BAG ASSEMBLY,RIGHT
€ 276.00
2
6826049400764
ref: 2
TAPE SET,SIDE BAG,RIGHT
€ 0.00
3
9541849400
ref: 3
93113-49400
SEAL,TRAVEL TRUNK
€ 45.00
4
9541949400
ref: 4
MOLDING,SIDE BAG
€ 31.00
5-1
9550049810019
ref: 5-1
95500-49821-019
SIDE BAG ASSEMBLY,LEFT
€ 276.00
5-2
955004981014A
ref: 5-2
95500-49821-14A
SIDE BAG ASSEMBLY,LEFT
€ 1,028.50
6
6827049400764
ref: 6
TAPE SET,SIDE BAG,LEFT
€ 15.50
7
9541849400
ref: 7
93113-49400
SEAL,TRAVEL TRUNK
€ 45.00
8
9541949400
ref: 8
MOLDING,SIDE BAG
€ 31.00
9
9545549400
ref: 9
CUSHION
€ 0.00
10
9545549400
ref: 10
CUSHION
€ 0.00
11
0110706258
ref: 11
01500-06257
BOLT
€ 2.00
12
0916006030
ref: 12
09160-06136
WASHER (6.5X29X1.6)
€ 2.50
13
0918008083
ref: 13
09180-08201
SPACER
€ 4.50
14
0932014008
ref: 14
09320-13007
CUSHION
€ 4.50
15
0832121068
ref: 15
08321-01067
LOCK WASHER
€ 2.50
16
0831011068
ref: 16
08310-00067
NUT
€ 2.50
17
0916006027
ref: 17
09160-06077
WASHER (6.5X20X1.2)
€ 2.00
18
9331049400KEY
ref: 18
LOCK,TRANK LID
€ 64.00
19
0832221048
ref: 19
08322-01047
WASHER
€ 2.00
20
0831311048
ref: 20
08313-11047
NUT 4MM
€ 2.00
21
0925008001
ref: 21
PLUG(OD:14)
€ 1.00
