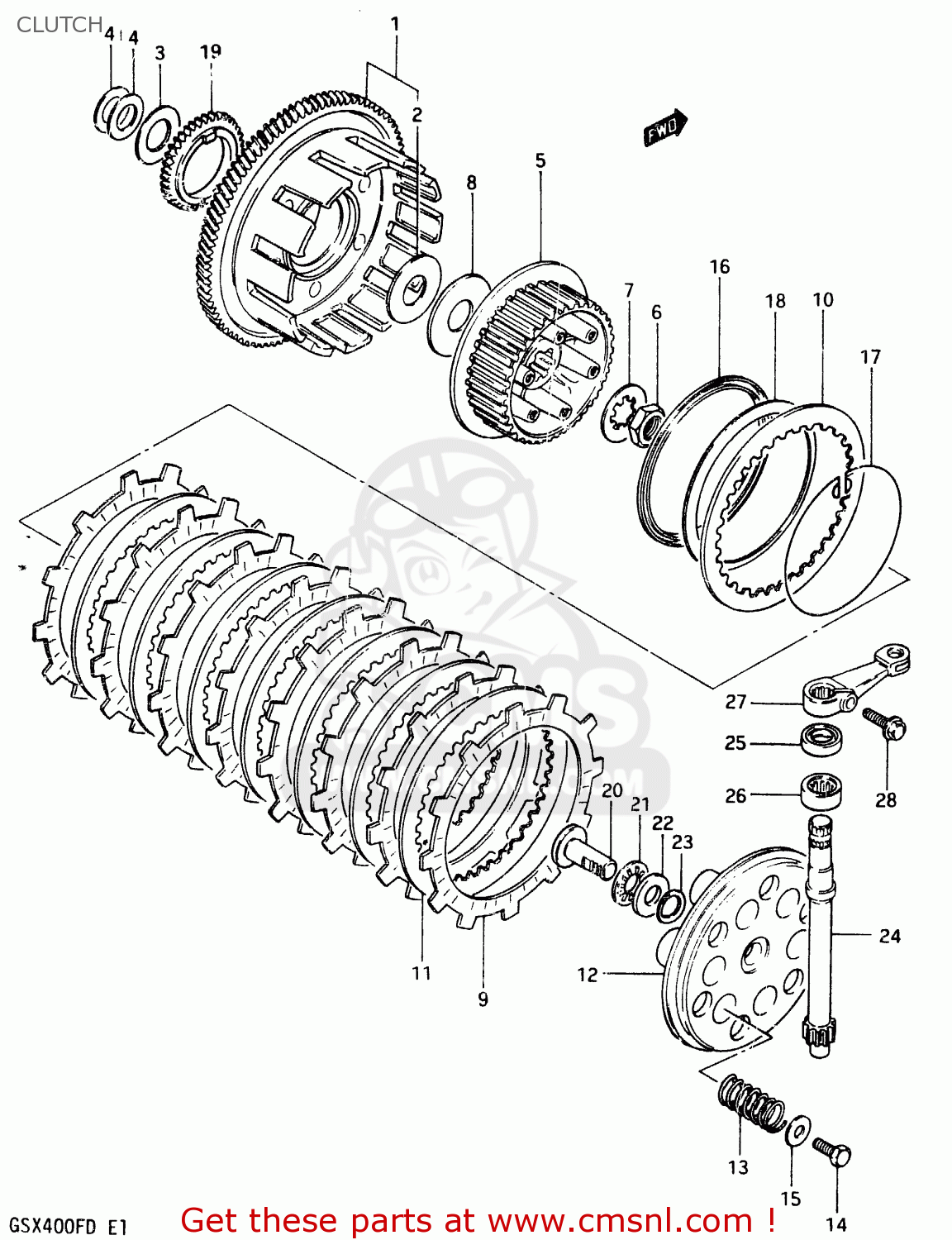

CLUTCH

ref

part #

description

quantity

1

2120033812
ref: 1

GEAR SET, PRIMARY DRIVEN (NT:92)

€ 405.50

2

2126133300
ref: 2

SHIM (T:1.00)

€ 3.00

2

2126233300
ref: 2

SHIM (T:1.05)

€ 0.00

3

0916022026
ref: 3

WASHER

€ 8.00

4

0821122423
ref: 4

WASHER

€ 3.00

5

2141133200
ref: 5

HUB, SLEEVE

€ 49.50

6

0914022003
ref: 6

NUT

€ 10.00

7

0916722005
ref: 7

WASHER,LOCK

€ 2.50

8

0916022026
ref: 8

WASHER

€ 8.00

9

2144140402
ref: 9

PLATE,CLUTCH DRIVE (MCA)

€ 20.50

10

2145131000
ref: 10

PLATE,CLUTCH DRIVEN(T:2.0) (NAS)

€ 9.00

11

2145145000
ref: 11

PLATE,CLUTCH DRIVEN (NAS)

€ 10.50

12

2146233200
ref: 12

DISC, PRESSURE

€ 146.50

13

0944019004
ref: 13

SPRING

€ 3.00

14

0110706168
ref: 14

BOLT, UPPER

€ 3.00

15

0916006020
ref: 15

WASHER

€ 2.00

16

2147145101
ref: 16

SEAT,WAVE WASHER

€ 16.00

17

2148145100
ref: 17

RING,STOPPER

€ 5.00

18

0916400003
ref: 18

WASHER

€ 9.00

19

1632133200
ref: 19

GEAR, OIL PUMP DRIVE (NT:38)

€ 41.50

20

2316549000
ref: 20

RACK,CLUTCH RELEASE

€ 15.00

21

0926315003
ref: 21

BEARING(15X28X2)

€ 7.00

22

0821115283
ref: 22

WASHER

€ 2.00

23

0916416003
ref: 23

WASHER

€ 2.50

24

2326133200
ref: 24

PINION, RELEASE

€ 55.00

25

0928512002
ref: 25

OIL SEAL

€ 7.00

26

0926315012
ref: 26

BEARING(15X22X12)

€ 11.50

27

2327134201
ref: 27

ARM,CLUTCH RELEASE

€ 26.50

28

0151706208
ref: 28

BOLT,REAR

€ 2.50
