SEAT

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

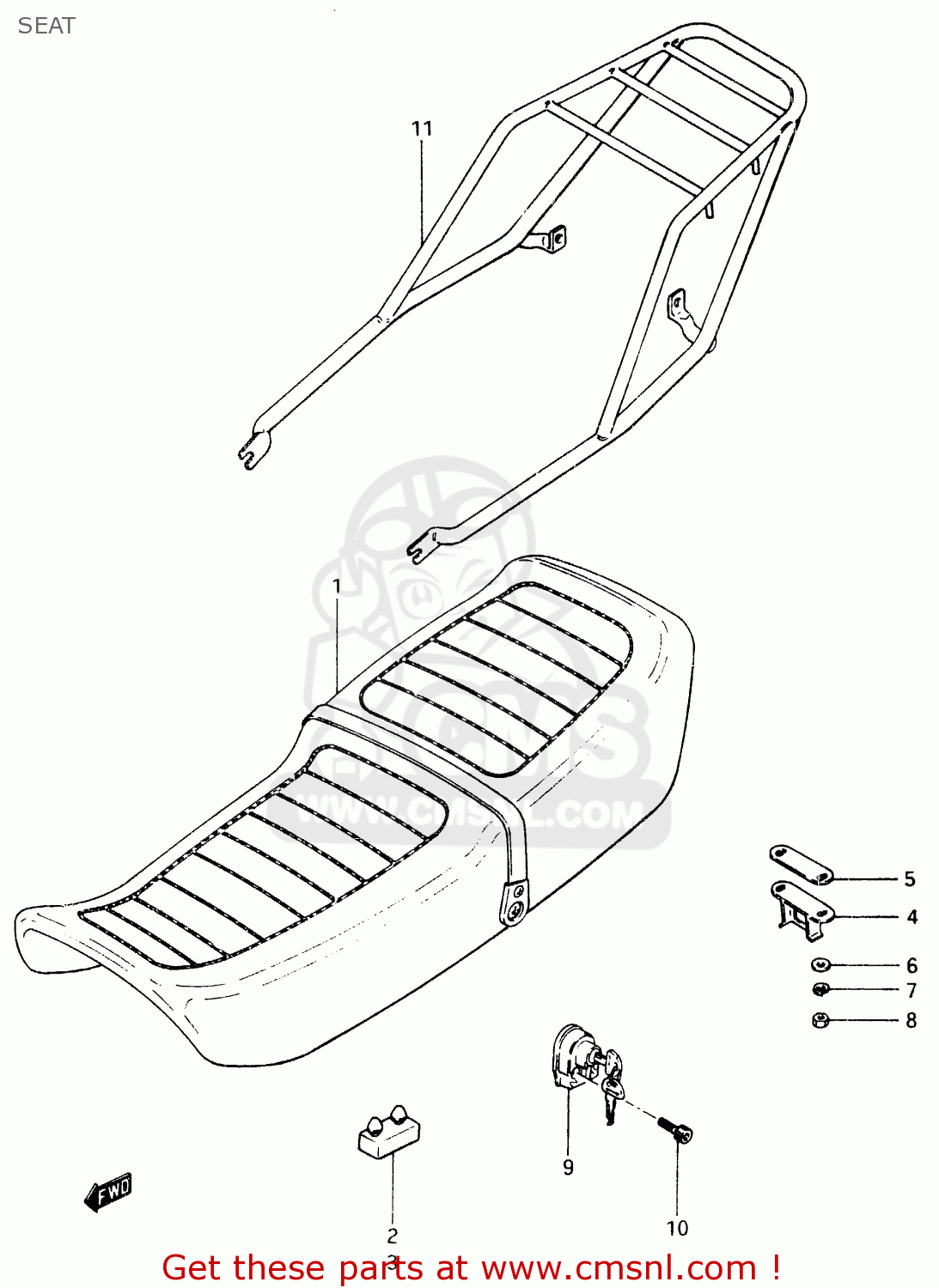

Seat diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

451003321048G
ref: 1

SEAT ASSY (BLACK)

€ 387.00

0932108006
ref: 2

CUSHION

€ 3.00

0932108010
ref: 3

CUSHION

€ 4.00

4521033200
ref: 4

STRIKER, SEAT LOCK

€ 17.50

4521744100
ref: 5

SHIM,SEAT LOCK STRIKER

€ 4.50

0832221068
ref: 6

WASHER

€ 2.00

0832121068
ref: 7

LOCK WASHER

€ 2.50

0831022068
ref: 8

NUT 6MM

€ 2.50

9570034210
ref: 9

LOCK ASSY,HELMET

€ 59.00

0910605008
ref: 10

BOLT 5X25

€ 2.00

4631033200
ref: 11
OPT

CARRIER, SPORTS

€ 43.00
