LEFT HANDLE SWITCH

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

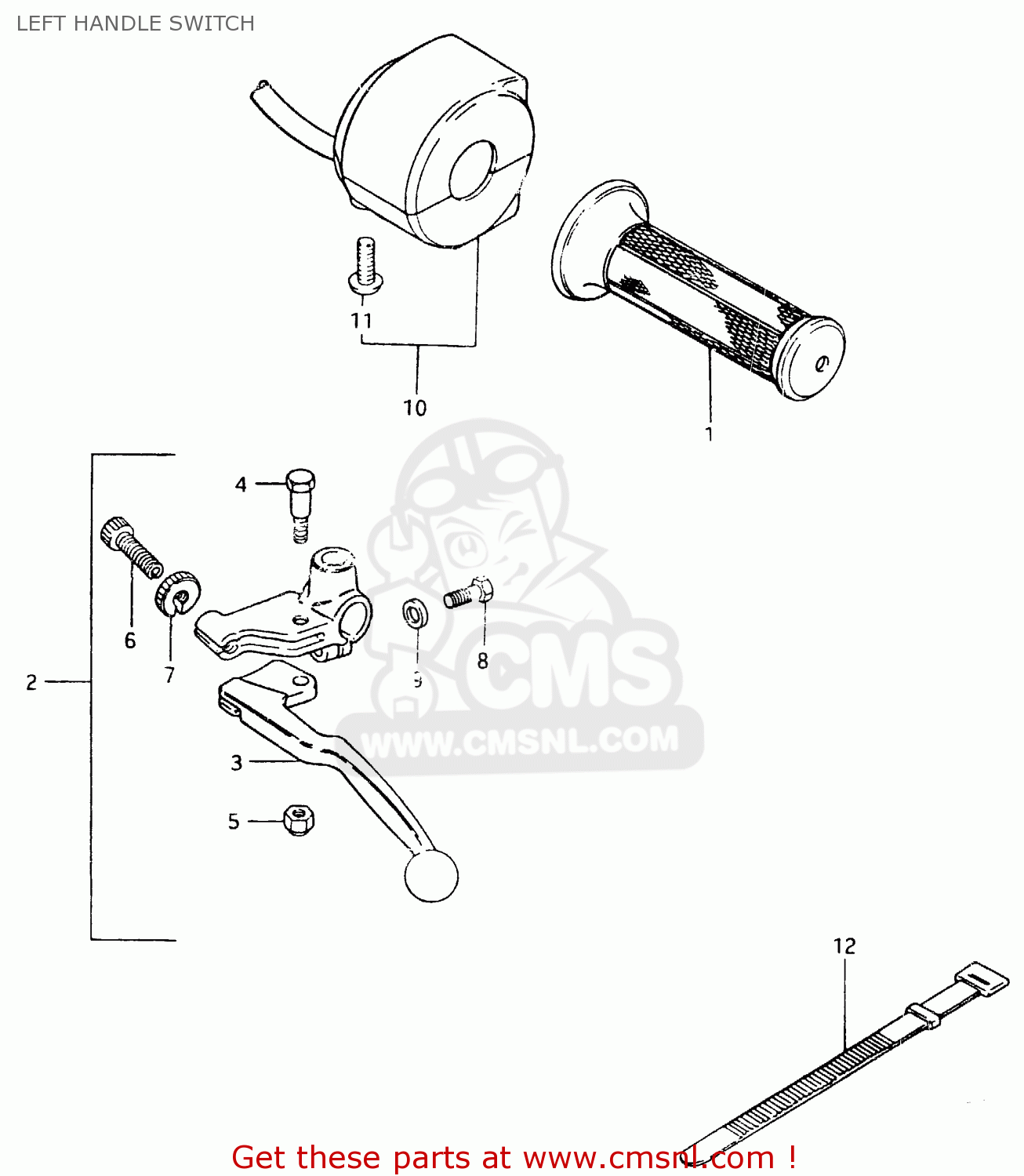

Left handle switch diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

LEFT HANDLE SWITCH GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

LEFT HANDLE SWITCH GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

1

5721149510
ref: 1

GRIP,L

€ 26.50

2

5750049103
ref: 2

LEVER ASSY, CLUTCH

€ 49.50

3

5762049101
ref: 3

LEVER,CLUTCH

€ 28.50

4

5743149120
ref: 4

BOLT,LEVER

€ 5.00

5

0831921068
ref: 5

NUT 6MM

€ 2.00

6

5744111010
ref: 6

ADJUSTER,CABLE

€ 8.00

7

5744211010
ref: 7

NUT,CABLE ADJUSTER

€ 4.00

8

5745149120
ref: 8

BOLT,CLUTCH LEVER HOLDER

€ 2.00

9

5758149120
ref: 9

SPACER

€ 2.00

10

3740034410
ref: 10

SWITCH ASSY, HANDLE LH

€ 161.00

10

3740034590
ref: 10
E34

SWITCH ASSY, HANDLE LH

€ 0.00

11

0211205258
ref: 11

SCREW

€ 2.00

12

0940712402
ref: 12

CLAMP(L:120)

€ 3.00
