SIGNAL GENERATOR

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

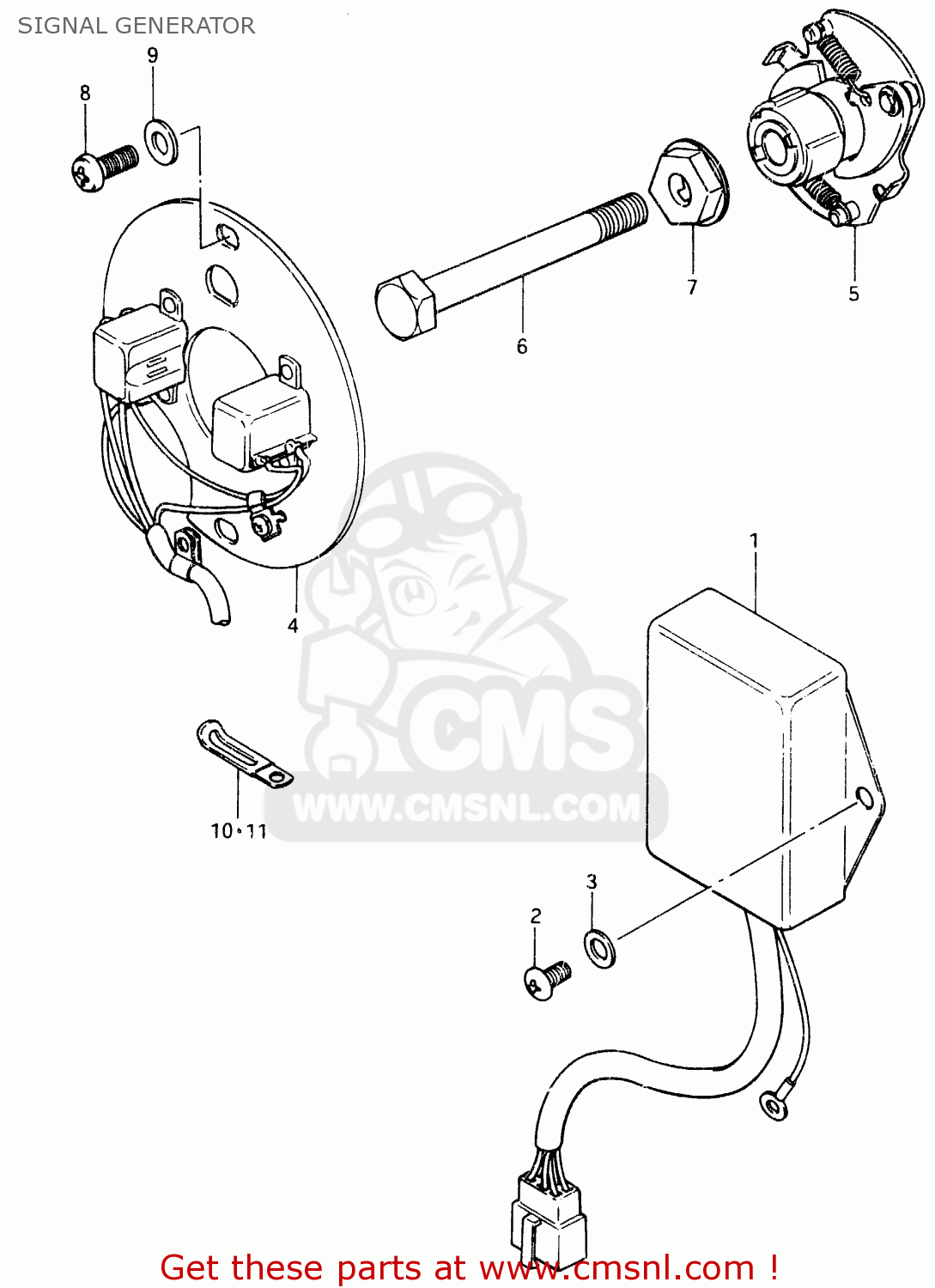

Signal generator diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

3290033220
ref: 1

IGNITOR UNIT

€ 496.00

0211206108
ref: 2

SCREW

€ 1.50

0832221068
ref: 3

WASHER

€ 2.00

3311033220
ref: 4

SIGNAL GENERATOR ASSY

€ 303.00

3312033220
ref: 5

GOVERNOR ASSY, ADVANCE

€ 222.50

0110708658
ref: 6

BOLT

€ 3.00

3346547000
ref: 7

WASHER

€ 19.00

0912505024
ref: 8

SCREW(5X12)

€ 2.00

0916005027
ref: 9

WASHER

€ 2.50

0940406401
ref: 10

CLAMP L:35

€ 2.50

0940408401
ref: 11

CLAMP

€ 3.50
