FRAME

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

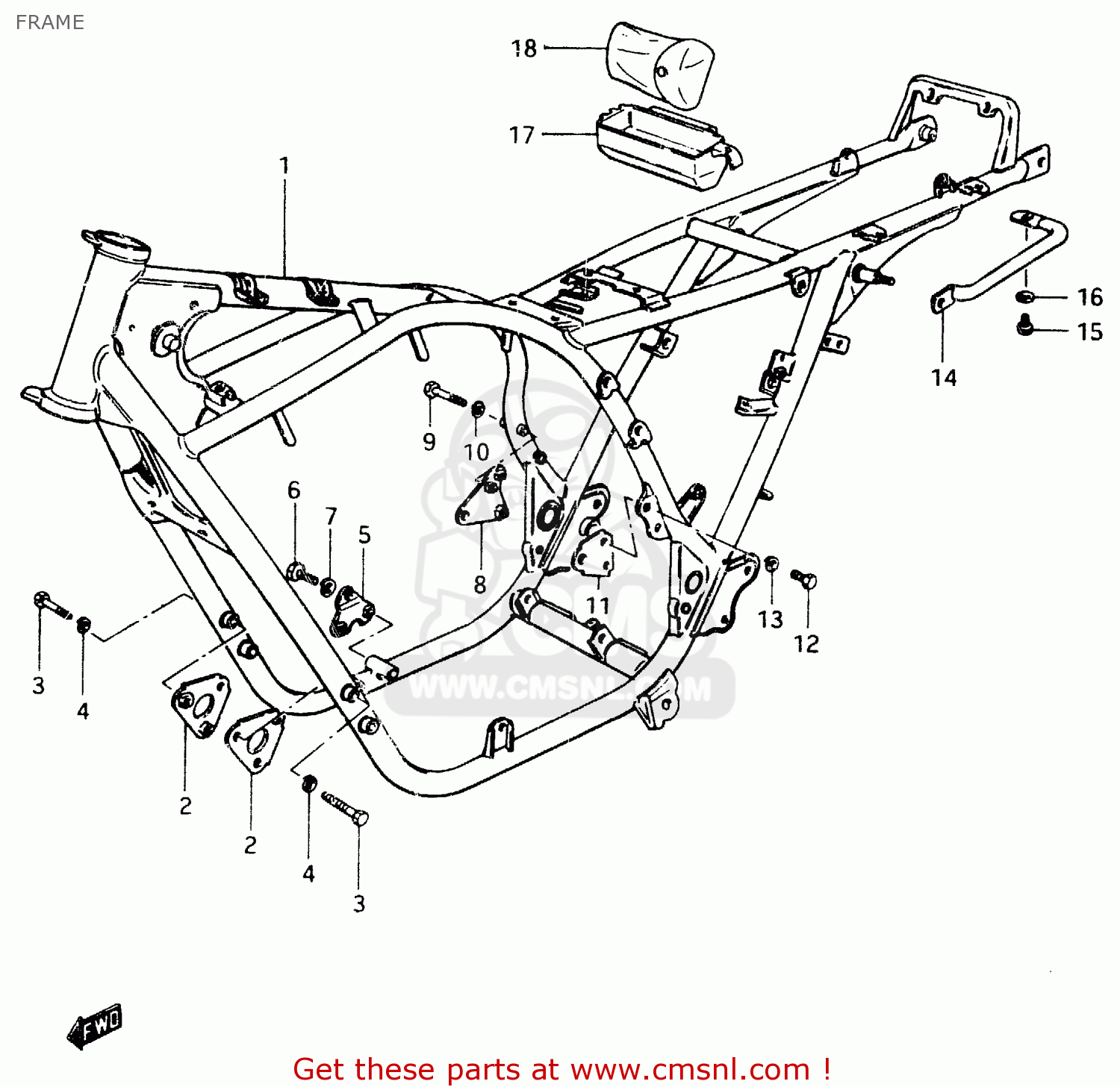

Frame diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

FRAME GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
FRAME GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
FRAME GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
prices are in EUR
ref
part #
description
quantity
1
4110033250019
ref: 1
FRAME (BLACK)
€ 906.50
1
4110033201019
ref: 1
E2
FRAME (BLACK)
€ 0.00
1
4110033240019
ref: 1
E17
FRAME (BLACK)
€ 0.00
1
4110033230019
ref: 1
E16
FRAME (BLACK)
€ 0.00
1
4110033220019
ref: 1
E25,E26
FRAME (BLACK)
€ 0.00
2
4191033200019
ref: 2
PLATE, NO. 1 (BLACK)
€ 0.00
3
0110708658
ref: 3
BOLT
0110708658
€ 3.00
4
0832121088
ref: 4
LOCK WASHER
0832121088
€ 2.00
5
4193033200019
ref: 5
PLATE, NO. 2 RH (BLACK)
€ 0.00
6
0110708508
ref: 6
BOLT 8X50
€ 3.00
7
0832121088
ref: 7
LOCK WASHER
0832121088
€ 2.00
8
4197033200019
ref: 8
PLATE, NO. 4 RH (BLACK)
€ 0.00
9
0110708658
ref: 9
BOLT
0110708658
€ 3.00
10
0832121088
ref: 10
LOCK WASHER
0832121088
€ 2.00
11
4198133200019
ref: 11
PLATE, NO.4 LH (BLACK)
€ 0.00
12
0110708168
ref: 12
BOLT
€ 2.00
13
0832121088
ref: 13
LOCK WASHER
0832121088
€ 2.00
14
4161033200
ref: 14
GRIP, FRAME HANDLE
4161033200
€ 18.50
15
0110708168
ref: 15
BOLT
€ 2.00
16
0832211088
ref: 16
WASHER
0832211088
€ 2.00
17
4155133200
ref: 17
HOLDER, TOOL
4155133200
€ 12.50
18
0980006800
ref: 18
TOOL SET
€ 52.00
