RIGHT HANDLE SWITCH

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

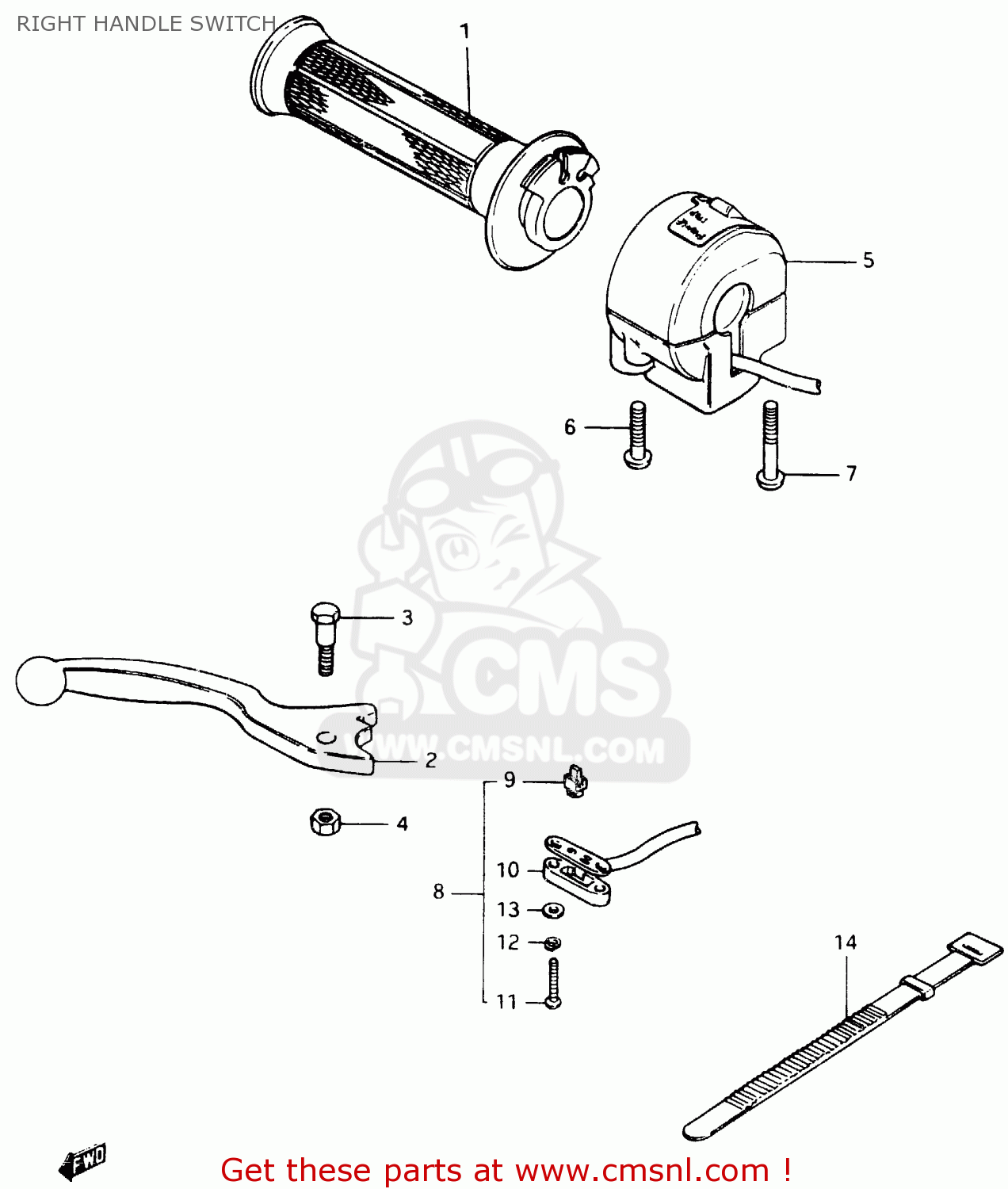

Right handle switch diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

RIGHT HANDLE SWITCH GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
RIGHT HANDLE SWITCH GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
RIGHT HANDLE SWITCH GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
prices are in EUR
ref
part #
description
quantity
1
5711049510
ref: 1
GRIP,THROTTLE
5711049510
€ 33.00
2
5742049101
ref: 2
LEVER,BRAKE
5742049101
€ 36.50
3
5743118621
ref: 3
BOLT
5743118621
€ 8.00
4
0831921068
ref: 4
NUT 6MM
0831921068
€ 2.00
5
3720034411
ref: 5
SWITCH ASSEMBLY,HANDLE,RIGHT
€ 108.50
5
3720034421
ref: 5
E4,E16,E17,E25,E26
SWITCH ASSY, HANDLE LH
3720034421
€ 118.50
5
3720034591
ref: 5
E34
SWITCH ASSY, HANDLE LH
€ 0.00
6
0211205258
ref: 6
SCREW
0211205258
€ 2.00
7
0211205358
ref: 7
SCREW
€ 1.50
8
5746049300
ref: 8
SWITCH ASSEMBLY
5746049300
€ 40.00
9
5746518601
ref: 9
CONTACT,SWITCH
5746518601
€ 4.50
10
5748133010
ref: 10
COVER,FR BK TERMINAL BASE
5748133010
€ 19.50
11
0912503105
ref: 11
SCREW
0912503105
€ 2.50
12
0832121038
ref: 12
LOCK WASHER
€ 1.50
13
0832221038
ref: 13
WASHER
0832221038
€ 2.00
14
0940712402
ref: 14
CLAMP(L:120)
0940712402
€ 3.00
