REAR BRAKE

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

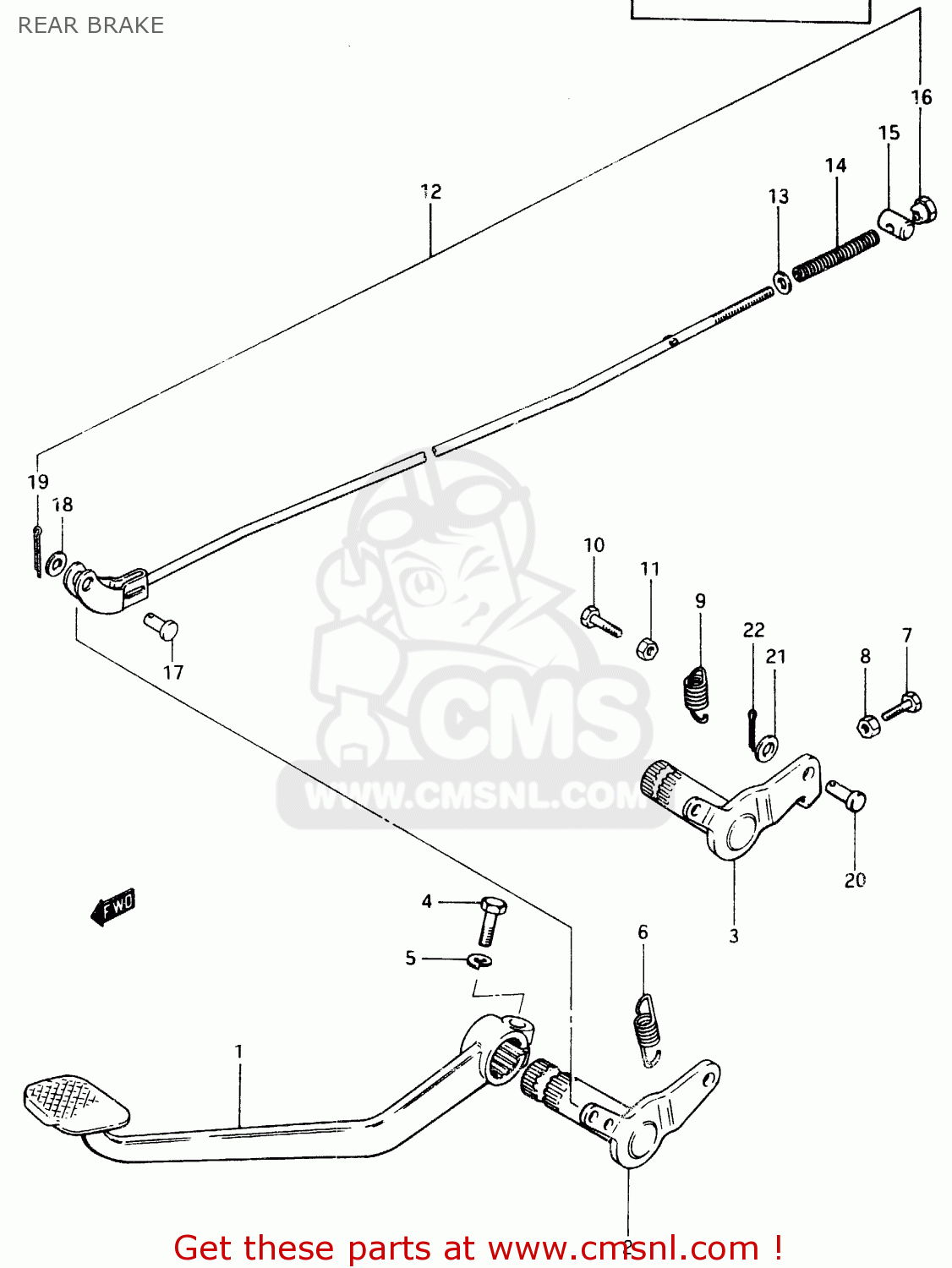

Rear brake diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

4311033200
ref: 1

PEDAL, BRAKE

€ 59.00

4312033210
ref: 2

ARM, BRAKE PEDAL ROD

€ 0.00

4312033200
ref: 3
E2

ARM, BRAKE PEDAL ROD

€ 23.00

0110708258
ref: 4

BOLT

€ 2.50

0832121088
ref: 5

LOCK WASHER

€ 2.00

0944314013
ref: 6

SPRING

€ 21.50

0110706208
ref: 7

BOLT

€ 2.00

0831011068
ref: 8

NUT

€ 2.50

0944314015
ref: 9
E2

SPRING

€ 3.00

0110706258
ref: 10
E2

BOLT

€ 2.00

0831011068
ref: 11
E2

NUT

€ 2.50

4330033200
ref: 12

ROD ASSY, REAR BRAKE

€ 12.00

0832221068
ref: 13

WASHER

€ 2.00

0944009004
ref: 14

SPRING

€ 2.00

0920913005
ref: 15

PIN

€ 3.50

0915006009
ref: 16

NUT (6MM)

€ 3.50

0920006013
ref: 17

PIN(L:13.5)

€ 2.00

0832221068
ref: 18

WASHER

€ 2.00

0411120208
ref: 19

PIN 20X20

€ 1.50

0920006029
ref: 20
E2

PIN

€ 1.50

0832221068
ref: 21
E2

WASHER

€ 2.00

0411120158
ref: 22
E2

PIN

€ 1.50
