CYLINDER

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

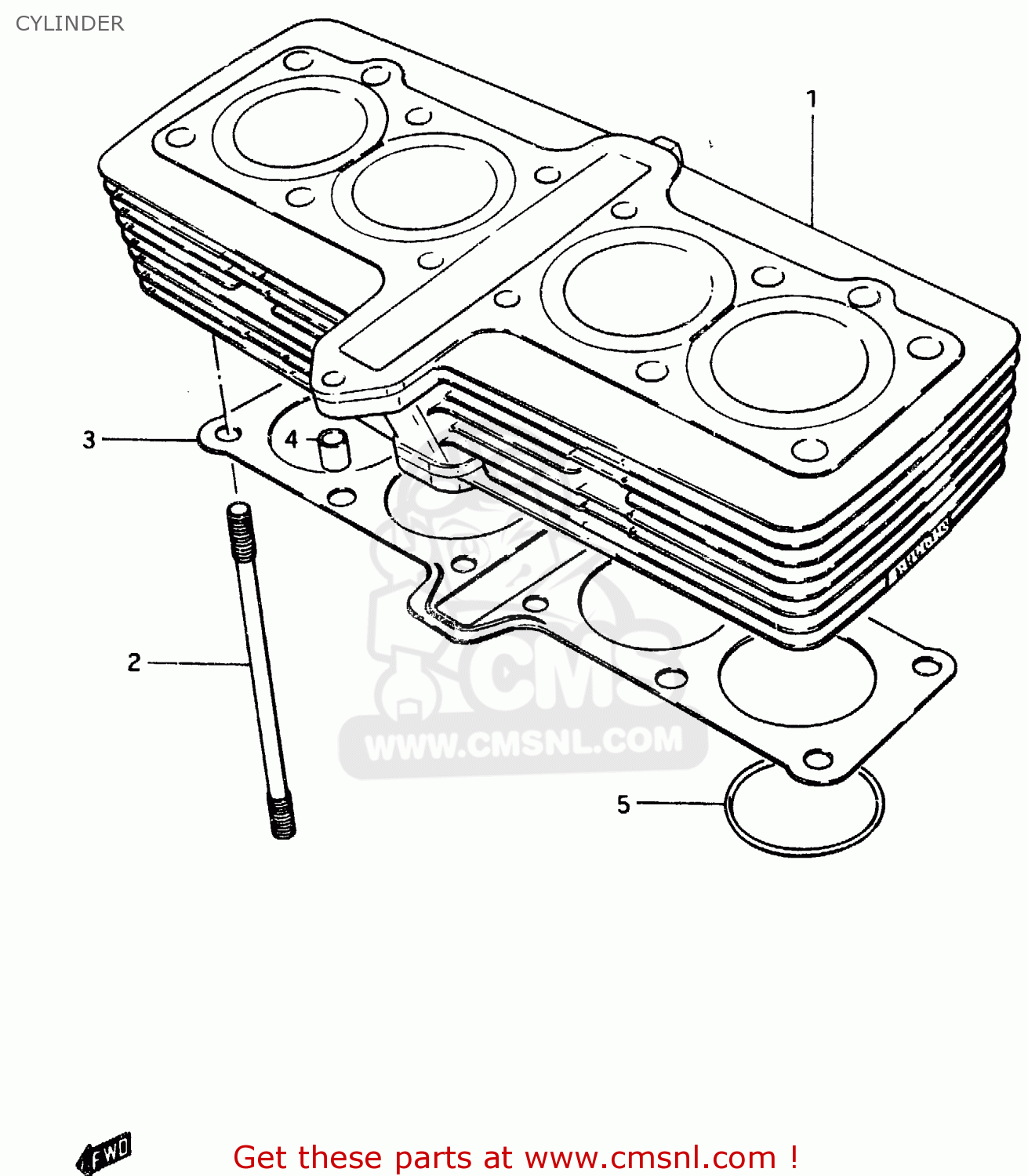

Cylinder diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

CYLINDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

CYLINDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

1

1121033210
ref: 1

CYLINDER

€ 0.00

2

0910808085
ref: 2

STUD

€ 5.00

3

1124133202
ref: 3

GASKET (T:0.8) (MCA)

€ 20.50

4

0920611003
ref: 4

PIN

€ 2.00

5

0928056001
ref: 5

O-RING (D:2 ID:56.5)

€ 4.00
