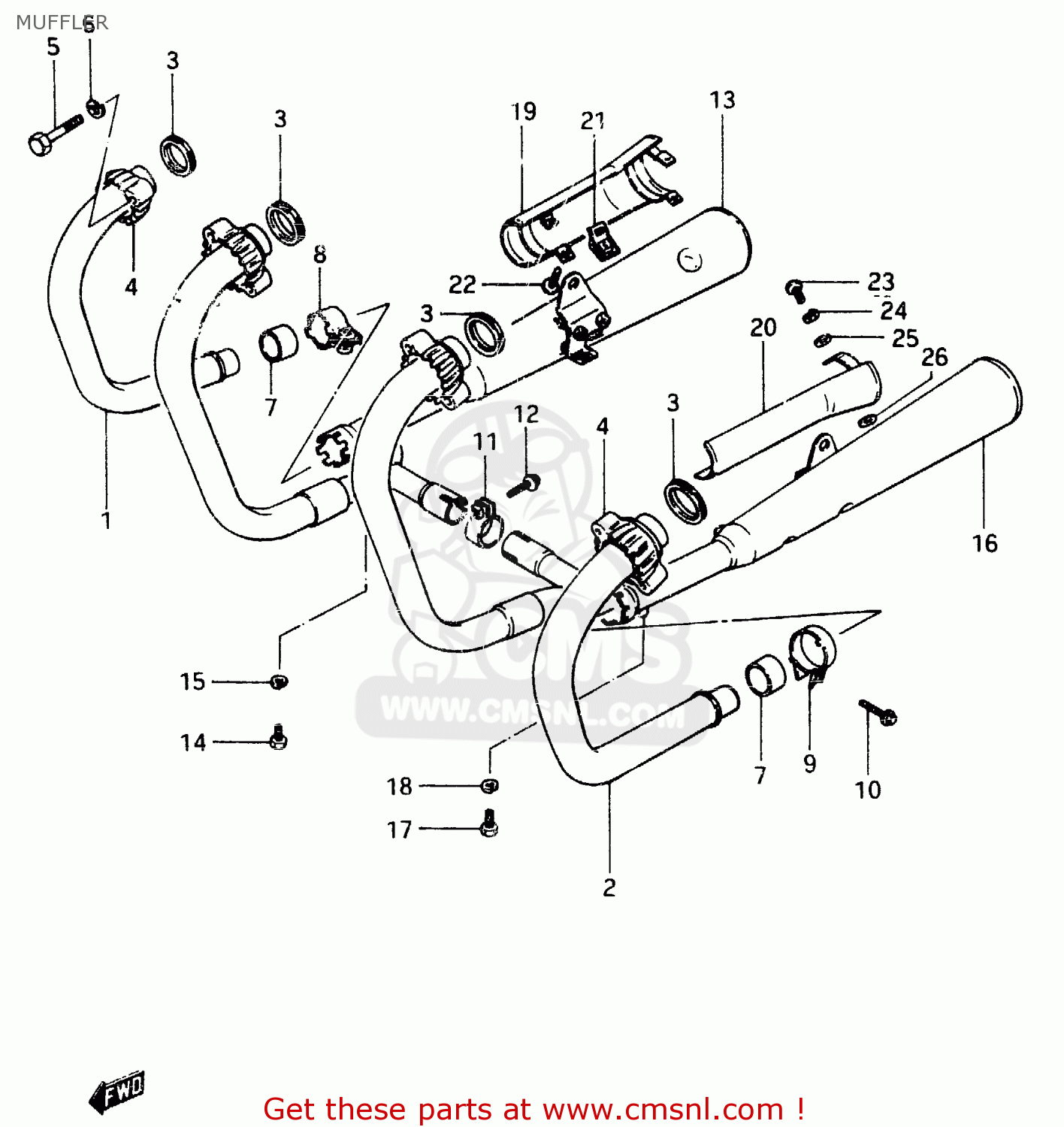

MUFFLER

ref

part #

description

quantity

1

1415033210
ref: 1

PIPE, EXHAUST RH

€ 87.00

2

1416033210
ref: 2

PIPE, EXHAUST LH

€ 82.50

3

1418103310
ref: 3

GASKET,EXHAUST PIPE (NAS)

€ 7.00

4

1418234201
ref: 4

CLAMP,EXHAUST PIPE

€ 45.50

5

0110708408
ref: 5

BOLT 8X40

€ 3.00

6

0832121088
ref: 6

LOCK WASHER

€ 2.00

7

1477147020
ref: 7

CONNECTOR,MUFFLER

€ 35.00

8

1445934300
ref: 8

CLAMP,MUFFLER CONNECTOR

€ 13.00

9

1446934300
ref: 9

CLAMP,MUFFLER CONNECTOR

€ 13.00

10

0151708205
ref: 10

BOLT

€ 3.00

11

1477233210
ref: 11

CLAMP,EXHAUST COUPLER

€ 5.00

12

0151706205
ref: 12

BOLT

€ 2.50

13

1430133234
ref: 13

MUFFLER, RH

€ 333.50

14

0110706105
ref: 14

BOLT

€ 2.00

15

0832221065
ref: 15

WASHER

€ 2.00

16

1430233234
ref: 16

MUFFLER, LH

€ 434.00

17

0110706105
ref: 17

BOLT

€ 2.00

18

0832221065
ref: 18

WASHER

€ 2.00

19

1478033212
ref: 19

COVER, MUFFLER RH

€ 35.00

20

1479033212
ref: 20

COVER, MUFFLER LH

€ 33.50

21

1478533211
ref: 21

CLAMP

€ 4.50

22

0211205165
ref: 22

SCREW

€ 2.00

23

0211205105
ref: 23

SCREW

€ 2.00

24

0832121055
ref: 24

WASHER,LOCK

€ 3.00

25

0832221055
ref: 25

WASHER,5MM

€ 2.50

26

0916806005
ref: 26

GASKET 6.2X12X1.5 (MCA)

€ 2.00

all assemblies
