GEAR SHIFTING

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

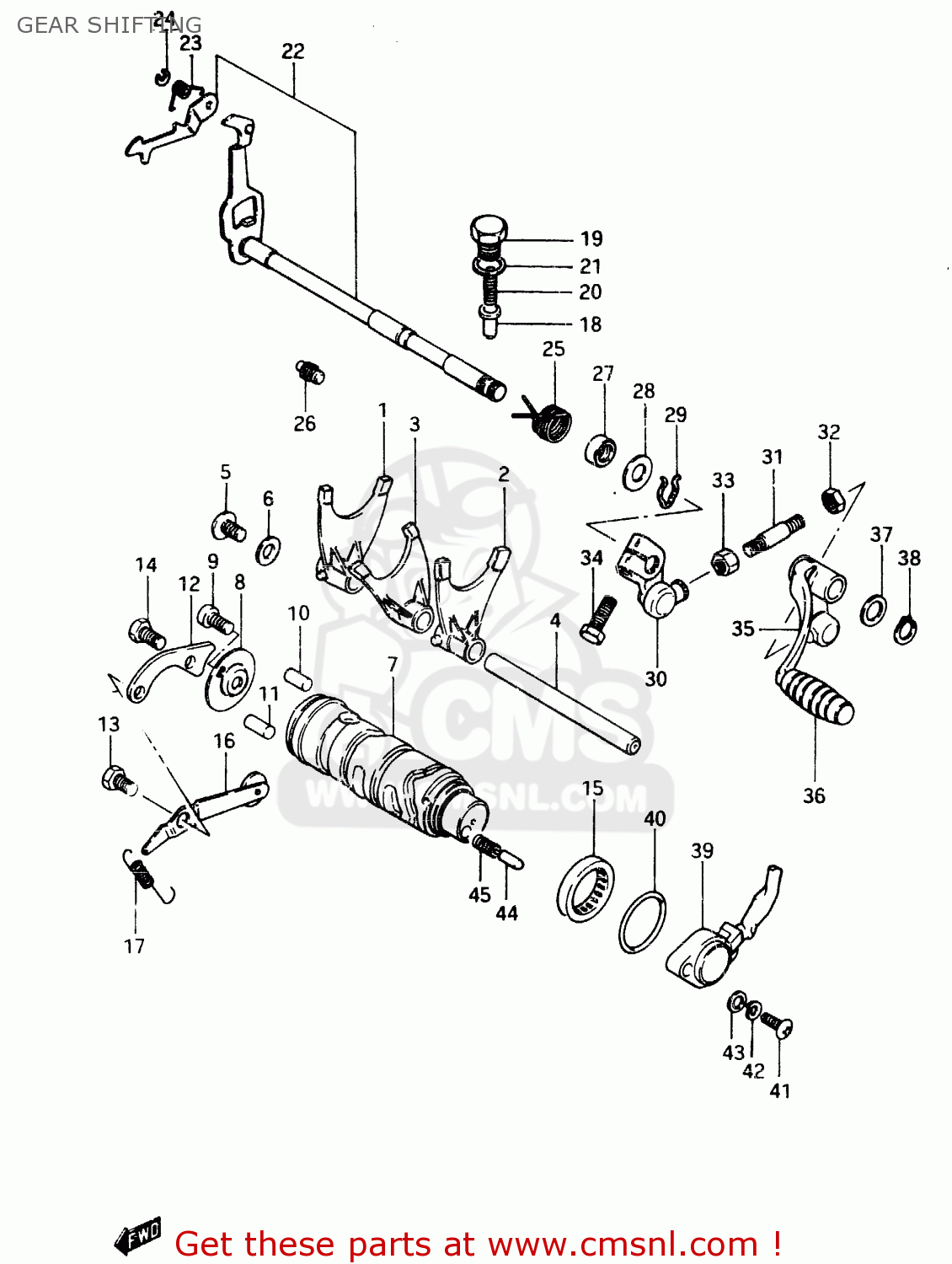

Gear shifting diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

GEAR SHIFTING GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
GEAR SHIFTING GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
GEAR SHIFTING GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
prices are in EUR
ref
part #
description
quantity
1
2521133200
ref: 1
FORK, GEAR SHIFTING
2521133200
€ 49.00
2
2522133200
ref: 2
FORK, GEAR SHIFTING
2522133200
€ 27.00
3
2523133200
ref: 3
FORK, GEAR SHIFTING
2523133200
€ 55.00
4
2541133300
ref: 4
SHAFT,GEAR SHIFT FORK
€ 13.00
5
0214206108
ref: 5
SCREW
0214206108
€ 2.00
6
0821106141
ref: 6
WASHER
0821106141
€ 2.50
7
2531147000
ref: 7
CAM,GEAR SHIFT
2531147000
€ 68.50
8
2532244000
ref: 8
RETAINER,GEAR SHIFT CAM DR PIN
2532244000
€ 2.50
9
0211206168
ref: 9
SCREW
0211206168
€ 2.50
10
0920904013
ref: 10
PIN
0920904013
€ 5.00
11
0926104001
ref: 11
PIN(4X18.5)
0926104001
€ 1.50
12
2534133300
ref: 12
GUIDE,GEAR SHIFT CAM
€ 6.00
13
0911106019
ref: 13
BOLT
€ 1.50
14
0110706168
ref: 14
BOLT, UPPER
€ 3.00
15
0926340001
ref: 15
BEARING(40X47X12)
0926340001
€ 21.00
16
2535044000
ref: 16
STOPPER,GEAR SHIFT CAM NO.1
2535044000
€ 10.50
17
0944309007
ref: 17
SPRING
0944309007
€ 14.50
18
2535130010
ref: 18
STOPPER,GEAR SHIFT CAM NO.2
2535130010
€ 6.50
19
2535430000
ref: 19
HOLDER,GEAR SHIFT CAM STOP SPR
2535430000
€ 6.50
20
0944006020
ref: 20
SPRING
0944006020
€ 14.00
21
0916814004
ref: 21
GASKET(14X19.2X2) (NAS)
0916814004
€ 2.50
22
2551033200
ref: 22
SHAFT, GEAR SHIFTING
2551033200
€ 55.50
23
0944813008
ref: 23
SPRING
0944813008
€ 7.00
24
0833211078
ref: 24
E RING
0833211078
€ 2.00
25
0944426017
ref: 25
SPRING
0944426017
€ 5.00
26
2567101000
ref: 26
STOPPER,GEAR SHIFT CAM
2567101000
€ 3.00
27
0928512002
ref: 27
OIL SEAL
0928512002
€ 7.00
28
0916012020
ref: 28
WASHER (12.5X27X1.6)
0916012020
€ 2.00
29
0938412001
ref: 29
SPRING,RETAINER
0938412001
€ 2.00
30
2552047000
ref: 30
ARM,GEAR SHIFT LINK
€ 53.50
31
2552533200
ref: 31
ROD,GEAR SHIFT LINK
2552533200
€ 6.00
32
0914006011
ref: 32
NUT
0914006011
€ 1.50
33
0831011068
ref: 33
NUT
0831011068
€ 2.50
34
0110706208
ref: 34
BOLT
0110706208
€ 2.00
35
2560033210
ref: 35
LEVER ASSY,GEAR SHIFT
2560033210
€ 57.00
36
2565216500
ref: 36
RUBBER,GEAR SHIFT PEDAL
2565216500
€ 4.00
37
0916012011
ref: 37
WASHER(12.5X20X1)
0916012011
€ 1.50
38
0833131128
ref: 38
CIRCLIP
0833131128
€ 2.00
39
3772033200
ref: 39
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
3772033200
€ 92.50
40
0928026003
ref: 40
O-RING (D:2.4 ID:26.2)
0928026003
€ 2.50
41
0211205208
ref: 41
SCREW 5X20
0211205208
€ 3.00
42
0832121058
ref: 42
LOCK WASHER
0832121058
€ 2.00
43
0832221058
ref: 43
WASHER
€ 2.50
44
0920905011
ref: 44
PIN(5X15.5)
0920905011
€ 2.00
45
0944004010
ref: 45
SPRING
0944004010
€ 1.50
