CYLINDER HEAD COVER

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

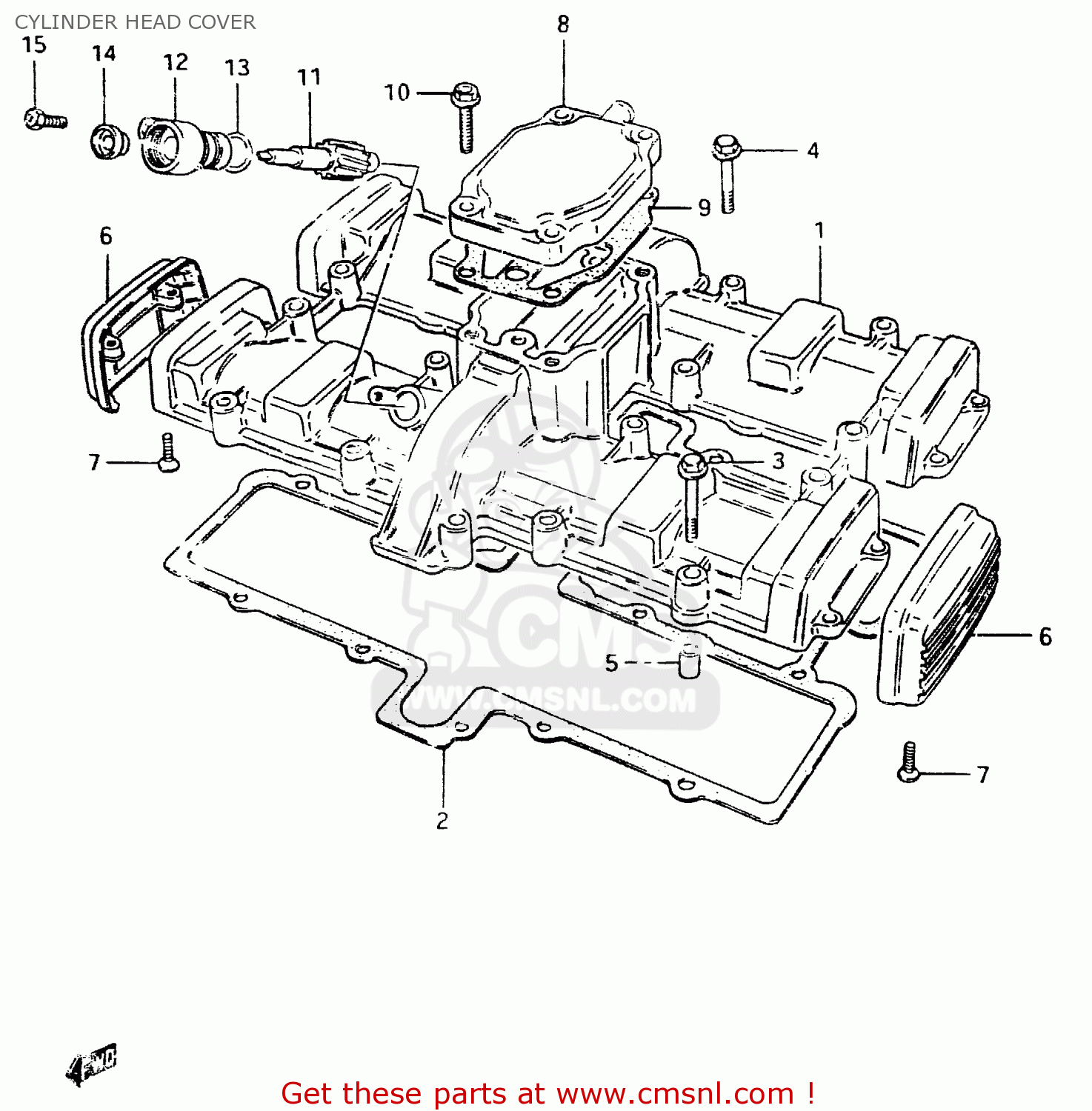

Cylinder head cover diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

CYLINDER HEAD COVER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

CYLINDER HEAD COVER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

1

1117133301
ref: 1

COVER, CYLINDER HEAD

€ 184.50

2

1117333300
ref: 2

GASKET (MCA)

€ 81.00

3

0151706405
ref: 3

BOLT (6X40)

€ 2.00

4

0151706355
ref: 4

BOLT

€ 2.50

5

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

6

1119033301
ref: 6

CAP, CYLINDER HEAD COVER

€ 27.50

7

0912505037
ref: 7

SCREW

€ 0.00

8

1117633300
ref: 8

COVER, BREATHER

€ 25.50

9

1117733200
ref: 9

GASKET (MCA)

€ 7.50

10

0151706255
ref: 10

BOLT

€ 2.50

11

2643149200
ref: 11

GEAR,TACHOMETER DRIVEN

€ 40.00

12

2644149000
ref: 12

SLEEVE,TACHOMETER DRIVE GEAR

€ 18.00

13

2645145000A
ref: 13

SEAL,TACHOMETER DRIVEN

€ 4.50

14

0928905002
ref: 14

SEAL,OIL(5X12X8)

€ 11.00

15

0912805101
ref: 15

SCREW(5X12)

€ 1.50
