SEAT TAIL COVER

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

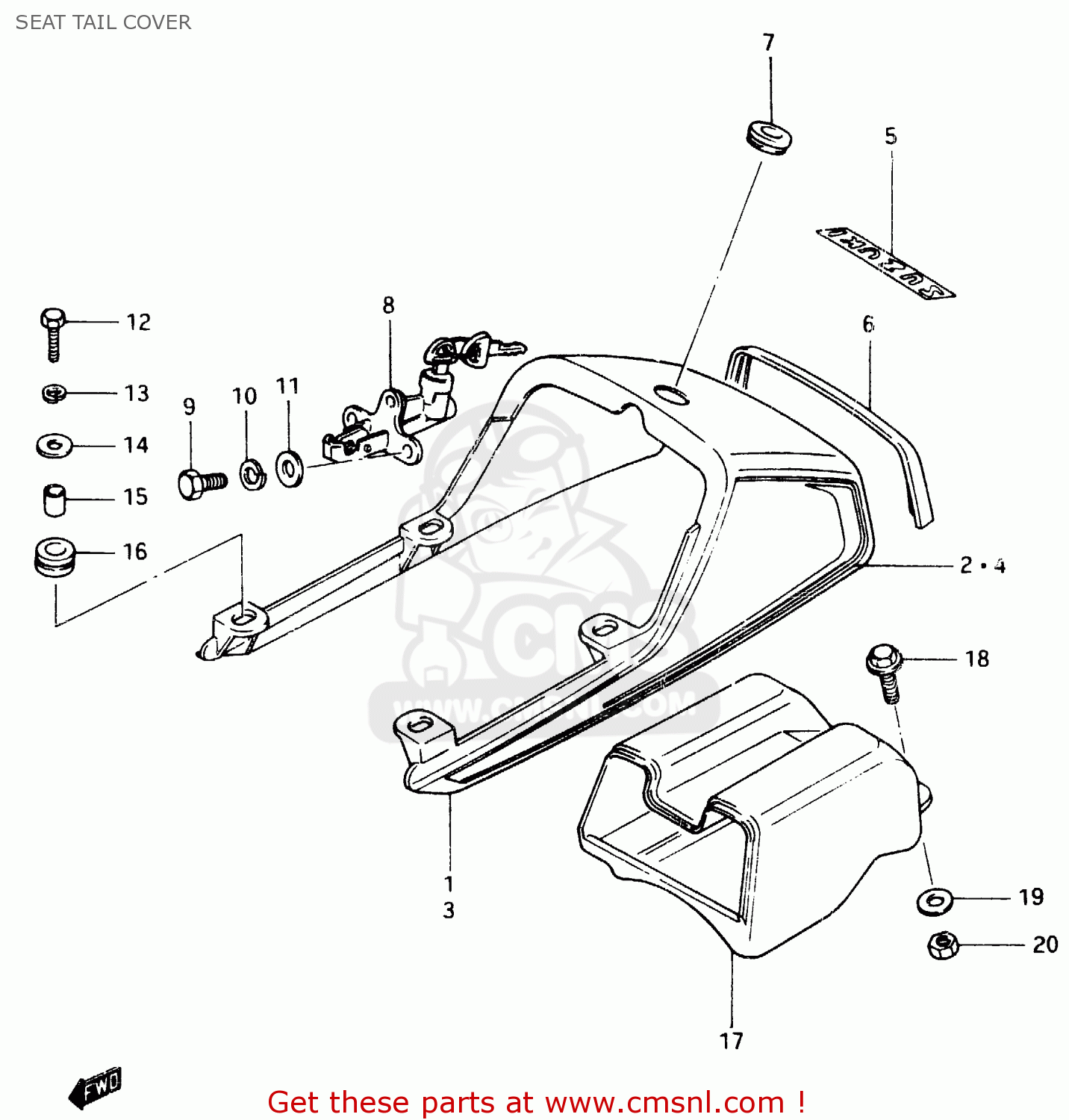

Seat tail cover diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

455113320005K
ref: 1

COVER,SEAT TAI

€ 80.00

681603323073F
ref: 2

TAPE SET, SEAT TAIL COVER

€ 32.50

455113320007P
ref: 3

COVER, SEAT TAIL (RED)

€ 80.00

681603323073K
ref: 4

TAPE SET, SEAT TAIL COVER

€ 32.50

6816633200742
ref: 5

EMBLEM,SEAT TAIL(SILVER)

€ 2.00

4556233200
ref: 6

CUSHION

€ 11.50

4552249200
ref: 7

GROMMET,SEAT LOCK HOLE

€ 5.50

9570049830
ref: 8

LOCK SET,SEAT

€ 81.50

0110706128
ref: 9

BOLT

€ 2.00

0832121068
ref: 10

LOCK WASHER

€ 2.50

0832221068
ref: 11

WASHER

€ 2.00

0110706258
ref: 12

BOLT

€ 2.00

0832121068
ref: 13

LOCK WASHER

€ 2.50

0916006012
ref: 14

WASHER(6,5X22X1.6)

€ 2.00

0918007004
ref: 15

SPACER(6.5X10.5X12)

€ 2.50

0932010011
ref: 16

CUSHION

€ 5.50

9499133200
ref: 17

BOX, SEAT TAIL

€ 44.50

0151706168
ref: 18

BOLT

€ 1.50

0832221068
ref: 19

WASHER

€ 2.00

0831931068
ref: 20

NUT

€ 2.50
