TURN SIGNAL LAMP (E2, E4, E17, E34)

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

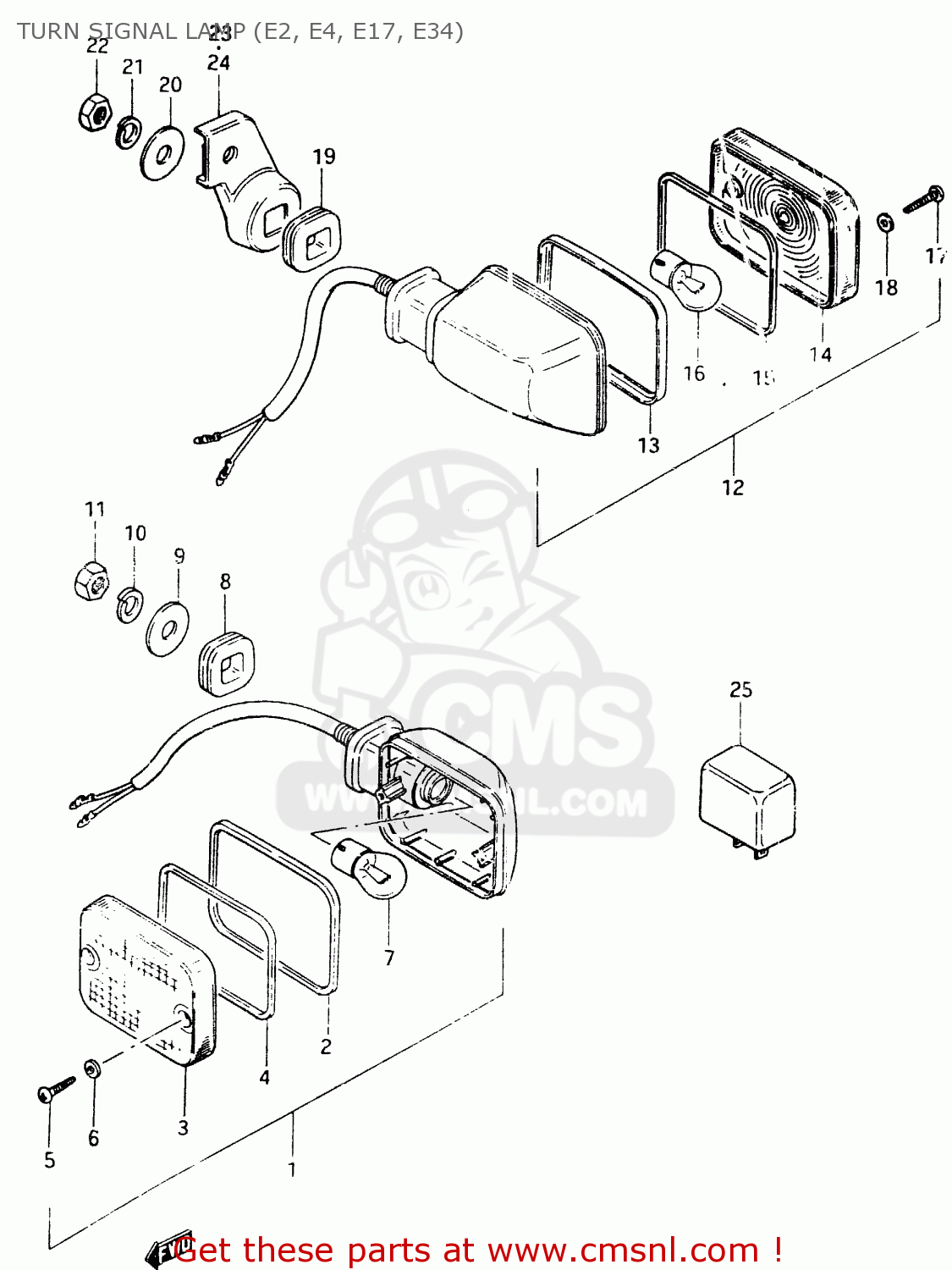

Turn signal lamp (e2, e4, e17, e34) diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

3560145521
ref: 1

LAMP ASSY,FR T

€ 70.00

3561149230
ref: 2

RIM

€ 11.00

3561249231
ref: 3

LENS

€ 13.00

3561349230
ref: 4

GASKET (NAS)

€ 5.00

0321104208
ref: 5

SCREW

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0947112045
ref: 7
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

0932015002
ref: 8

CUSHION

€ 4.50

0916010006
ref: 9

WASHER (10.5X30X2.3)

€ 2.50

0832121108
ref: 10

LOCK WASHER

€ 2.00

0831012108
ref: 11

NUT

€ 2.50

3560345521
ref: 12

LAMP, REAR TURN SIGNAL

€ 83.50

3561149230
ref: 13

RIM

€ 11.00

3565244182
ref: 14

LENS

€ 13.00

3561349230
ref: 15

GASKET (NAS)

€ 5.00

0947112045
ref: 16
EXECUTED LOCALLY

BULB(12V21W)

€ 5.00

0321104208
ref: 17

SCREW

€ 1.50

3562743010
ref: 18

GASKET (NAS)

€ 2.00

0932015004
ref: 19

CUSHION

€ 5.00

0916010006
ref: 20

WASHER (10.5X30X2.3)

€ 2.50

0832121108
ref: 21

LOCK WASHER

€ 2.00

0831012108
ref: 22

NUT

€ 2.50

3562033211
ref: 23

BRACKET,REAR TURN SIGNAL

€ 8.50

3564033211
ref: 24

BRACKET,REAR TURN SIGNAL

€ 8.50

3861045031
ref: 25

RELAY,TURN SIGNAL

€ 54.50
