REAR FENDER

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

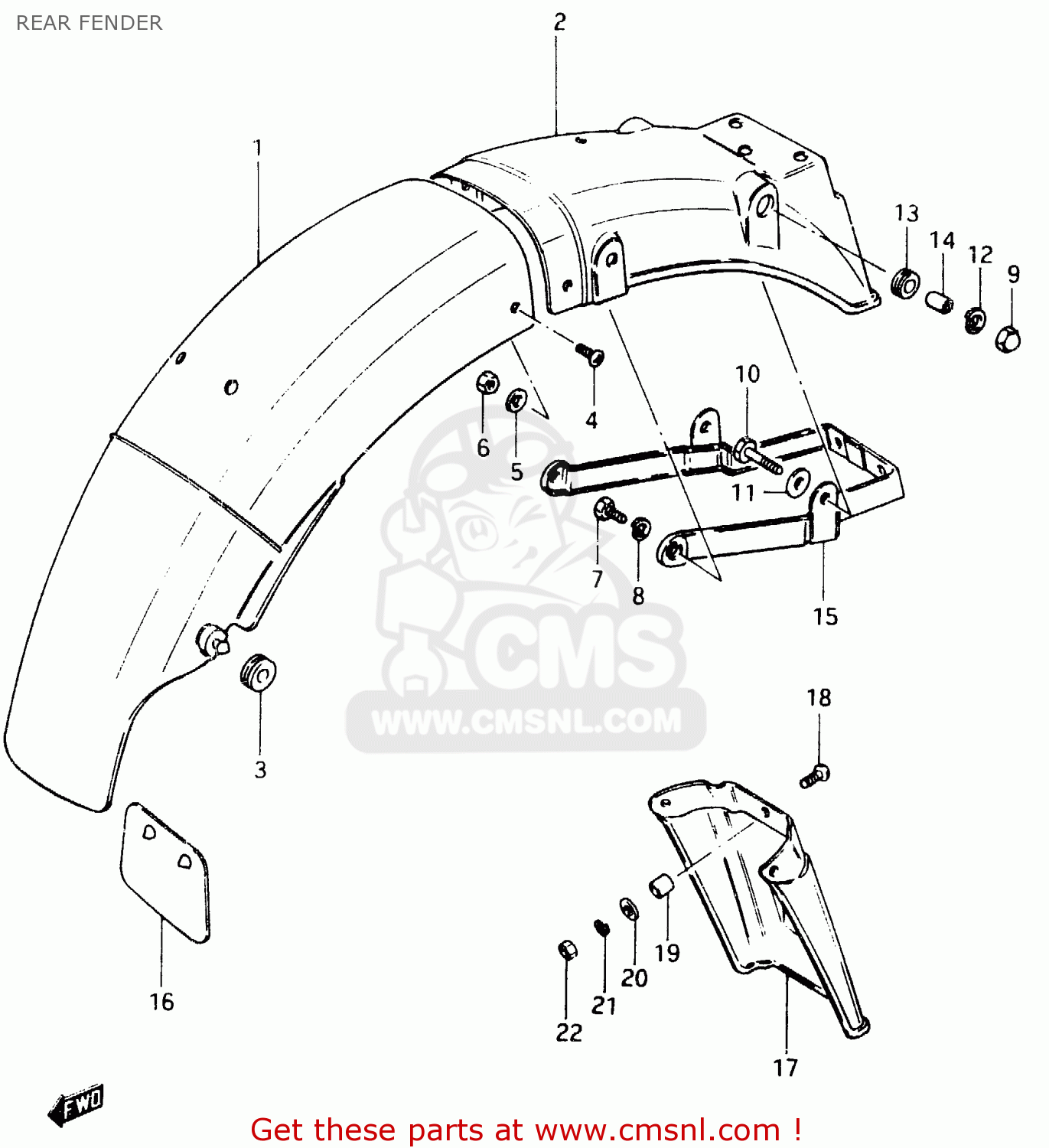

Rear fender diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

REAR FENDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
REAR FENDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
REAR FENDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)
prices are in EUR
ref
part #
description
quantity
1
6311234500
ref: 1
BODY,RR FENDER FR
6311234500
€ 61.50
2
6311333200
ref: 2
BODY, REAR FENDER REAR
6311333200
€ 161.50
2
6311333210
ref: 2
E16,E17,E25,E26
BODY, REAR FENDER REAR
€ 161.50
3
0932008013
ref: 3
CUSHION
0932008013
€ 4.00
4
0214205128
ref: 4
SCREW
0214205128
€ 1.50
5
0916005017
ref: 5
WASHER (5.5X16X1.2)
0916005017
€ 2.50
6
0831011058
ref: 6
NUT
0831011058
€ 2.50
7
0110706168
ref: 7
BOLT, UPPER
€ 3.00
8
0832121068
ref: 8
LOCK WASHER
0832121068
€ 2.50
9
0831012088
ref: 9
NUT
0831012088
€ 2.00
10
0110708358
ref: 10
BOLT
0110708358
€ 3.50
11
0832211088
ref: 11
WASHER
0832211088
€ 2.00
12
0832121088
ref: 12
LOCK WASHER
0832121088
€ 2.00
13
0932012011
ref: 13
CUSHION
0932012011
€ 3.00
14
0918008021
ref: 14
SPACER (8.2X12X7.5)
0918008021
€ 3.00
15
6312033200
ref: 15
REINFORCEMENT, REAR FENDER
6312033200
€ 52.00
16
6341131900
ref: 16
GUIDE,RR FENDER MUD
6341131900
€ 8.00
17
6331133210
ref: 17
E16,E17,E25,E26
EXTENSION, REAR FENDER
€ 14.50
18
0912506009
ref: 18
E16,E17,E25,E26
SCREW (6X15)
0912506009
€ 3.00
19
0918006001
ref: 19
E16,E17,E25,E26
SPACER(6.2X8.3X5.7)
0918006001
€ 2.00
20
0916006028
ref: 20
E16,E17,E25,E26
WASHER(6.5X18X1)
0916006028
€ 1.50
21
0832121068
ref: 21
E16,E17,E25,E26
LOCK WASHER
0832121068
€ 2.50
22
0831011068
ref: 22
E16,E17,E25,E26
NUT
0831011068
€ 2.50
