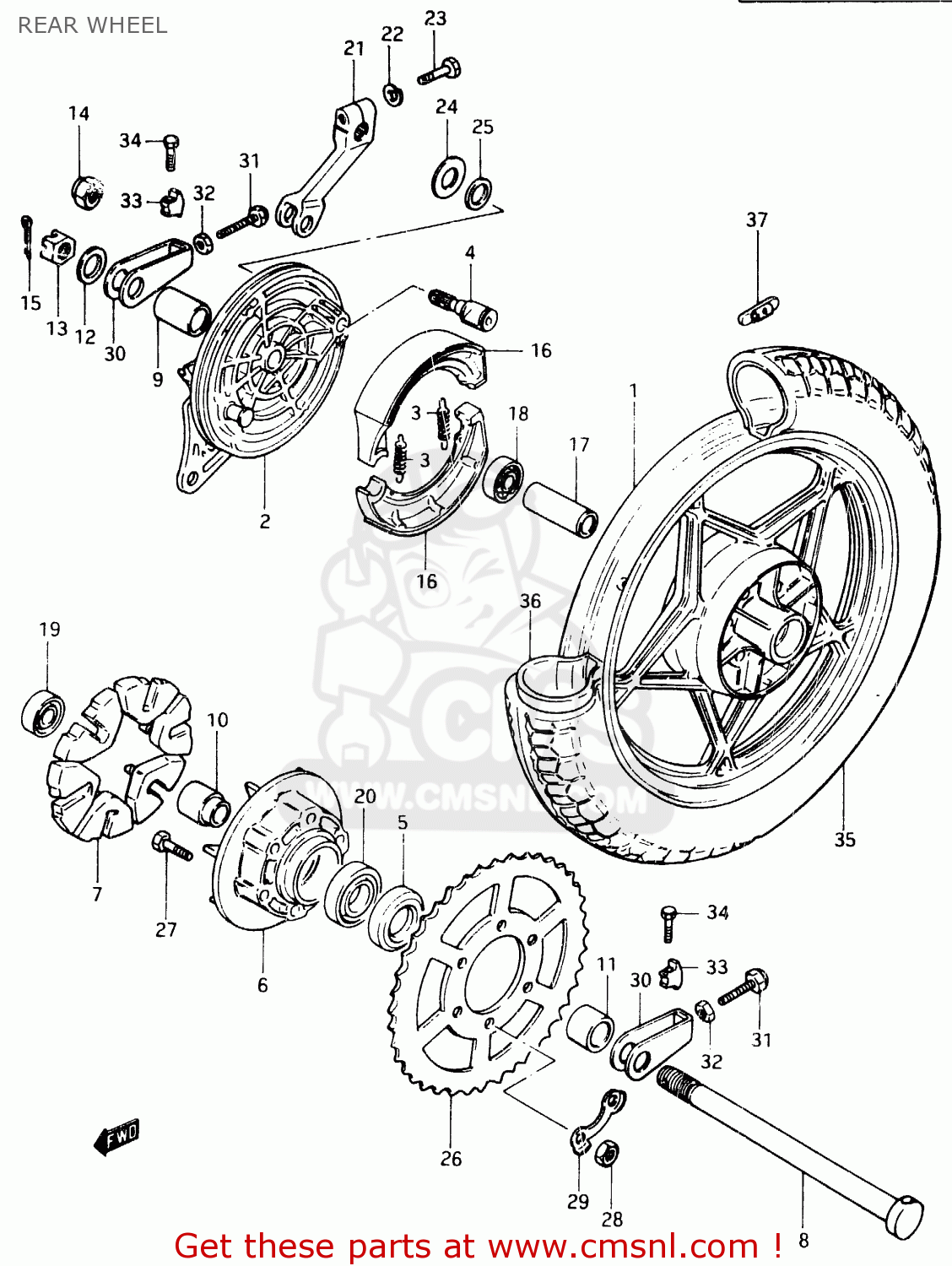

REAR WHEEL

ref

part #

description

quantity

1

641504400012U
ref: 1

CASTING WHEEL,REAR 1.85-

€ 600.50

2

6421044060
ref: 2

PANEL,REAR HUB

€ 111.50

3

5542030000
ref: 3

SPRING,BRAKE SHOE

€ 3.50

4

5444008003
ref: 4

CAM,FRONT BRAKE

€ 19.00

5

0928530001
ref: 5

SEAL,OIL(30.5X52X8)

€ 20.00

6

6461133200
ref: 6

DRUM,REAR SPROCKET MOUNT

€ 78.50

7

6465111300
ref: 7

ABSORBER,RR HUB SHOCK

€ 12.50

8

6471133200
ref: 8

AXLE, REAR

€ 41.00

9

0918017039
ref: 9

SPACER (17.5X28X51.8)

€ 8.50

10

6473334000
ref: 10

SPACER,REAR HUB BEARING

€ 24.00

11

0918017055
ref: 11

SPACER(17X30.5X16.3)

€ 8.00

12

0916017013
ref: 12

WASHER (17X30X3.2)

€ 2.00

13

0914116001
ref: 13

NUT

€ 6.50

14

0915916002
ref: 14
E25

NUT

€ 5.00

15

0411140308
ref: 15

PIN,COTTER

€ 1.50

16

6441011301
ref: 16

SHOE,BRAKE

€ 29.50

17

0918017056
ref: 17

SPACER (17.6X24X57)

€ 19.00

18

0814363037
ref: 18

BEARING

€ 23.00

19

0814362037
ref: 19

BEARING

€ 18.50

20

0811362057
ref: 20

BEARING

€ 18.00

21

6445144001
ref: 21

LEVER,RR BRAKE CAM

€ 111.00

22

0832121068
ref: 22

LOCK WASHER

€ 2.50

23

0110706258
ref: 23

BOLT

€ 2.00

24

0916015001
ref: 24

WASHER (15X24X1.6)

€ 2.50

25

0928015001
ref: 25

O-RING,BOSS

€ 2.00

26

6451147640
ref: 26

SPROCKET,REAR

€ 114.50

27

0911910002
ref: 27

BOLT

€ 3.50

28

0914010026
ref: 28

NUT

€ 2.00

29

0916910007
ref: 29

WASHER

€ 7.50

30

6141047200
ref: 30

ADJUSTER,CHAIN

€ 58.00

31

0910408018
ref: 31

BOLT 8X50

€ 3.00

32

0831012088
ref: 32

NUT

€ 2.00

33

6143331000
ref: 33

SUPPORTER,CHAIN ADJUST

€ 22.50

34

0151708508
ref: 34

BOLT

€ 3.50

35

6510033210
ref: 35
IRC

TIRE (3.75S-18)

€ 0.00

35

6510033230
ref: 35
BS

TIRE (3.75S-18)

€ 0.00

36

6520049015
ref: 36
IRC

TUBE,INNER

€ 39.00

36

6520045030
ref: 36
BS

TUBE ASSEMBLY,WHEEL,INNER

€ 39.00

37

5541145100
ref: 37

BALANCER,WHEEL

€ 7.00

37

5541245100
ref: 37

BALANCER,WHEEL

€ 4.00

37

5541345100
ref: 37

BALANCER,WHEEL

€ 6.50
