HEADLAMP HOUSING - FRONT FENDER

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

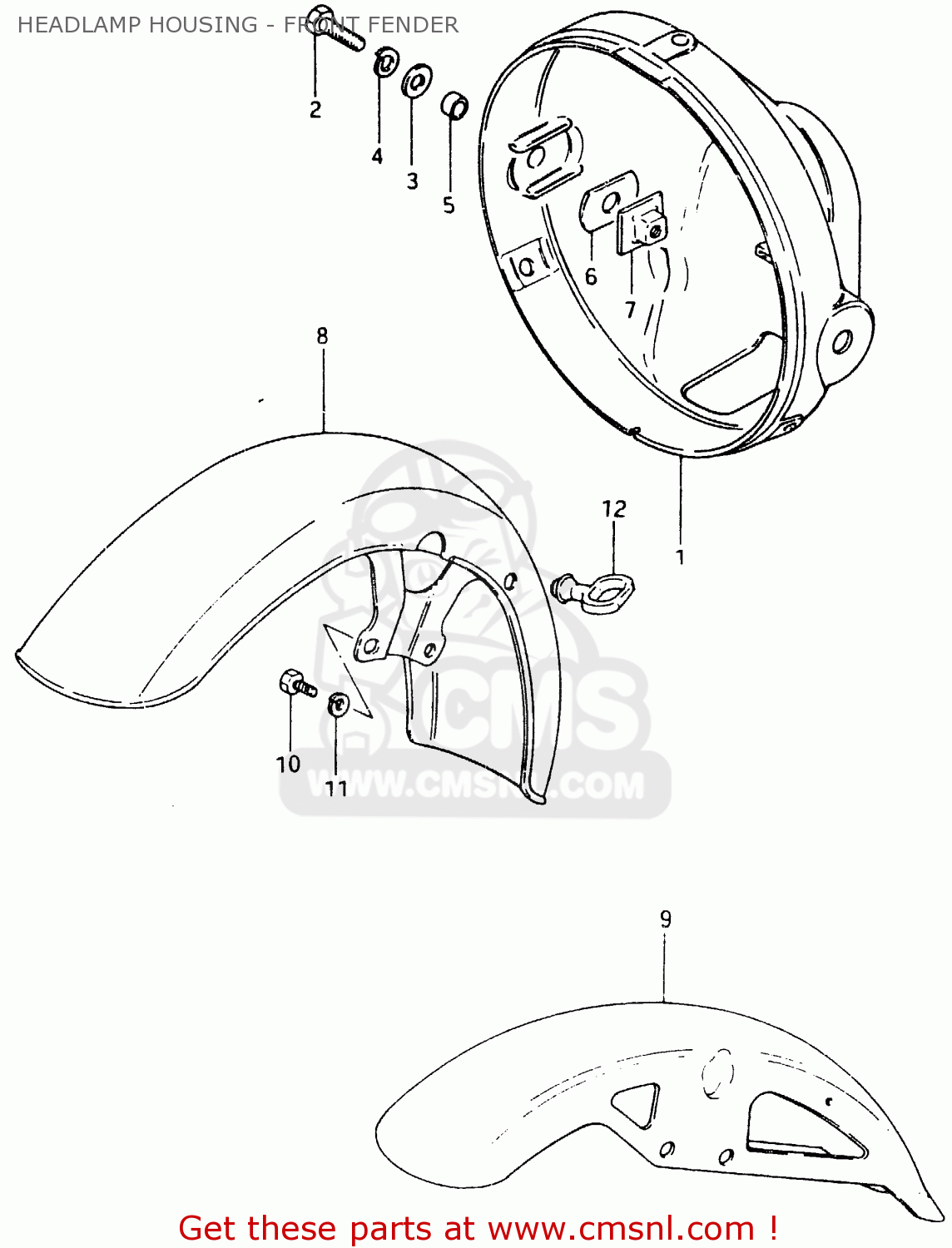

Headlamp housing - front fender diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

HEADLAMP HOUSING - FRONT FENDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

HEADLAMP HOUSING - FRONT FENDER GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

1

5181133200
ref: 1
BLACK

HOUSING,HEADLAMP

€ 39.00

2

0120408257
ref: 2

BOLT

€ 2.00

3

0832211088
ref: 3

WASHER

€ 2.00

4

0832121088
ref: 4

LOCK WASHER

€ 2.00

5

0918008030
ref: 5

SPACER (8.8X12X7)

€ 3.50

6

0932912002
ref: 6

CUSHION

€ 3.00

7

5186045000
ref: 7

PLATE,HEADLAMP HOUSING

€ 2.00

8

531104593005K
ref: 8

FENDER, FRONT

€ 155.50

8

531104593007P
ref: 8

FENDER, FRONT

€ 155.50

9

531103450005K
ref: 9
E4

FENDER, FRONT

€ 185.00

9

531103450007P
ref: 9
E4

FENDER, FRONT

€ 185.00

10

0110708168
ref: 10

BOLT

€ 2.00

11

0832121088
ref: 11

LOCK WASHER

€ 2.00

12

5862121203A
ref: 12

GUIDE,CABLE

€ 7.50
