STAND

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

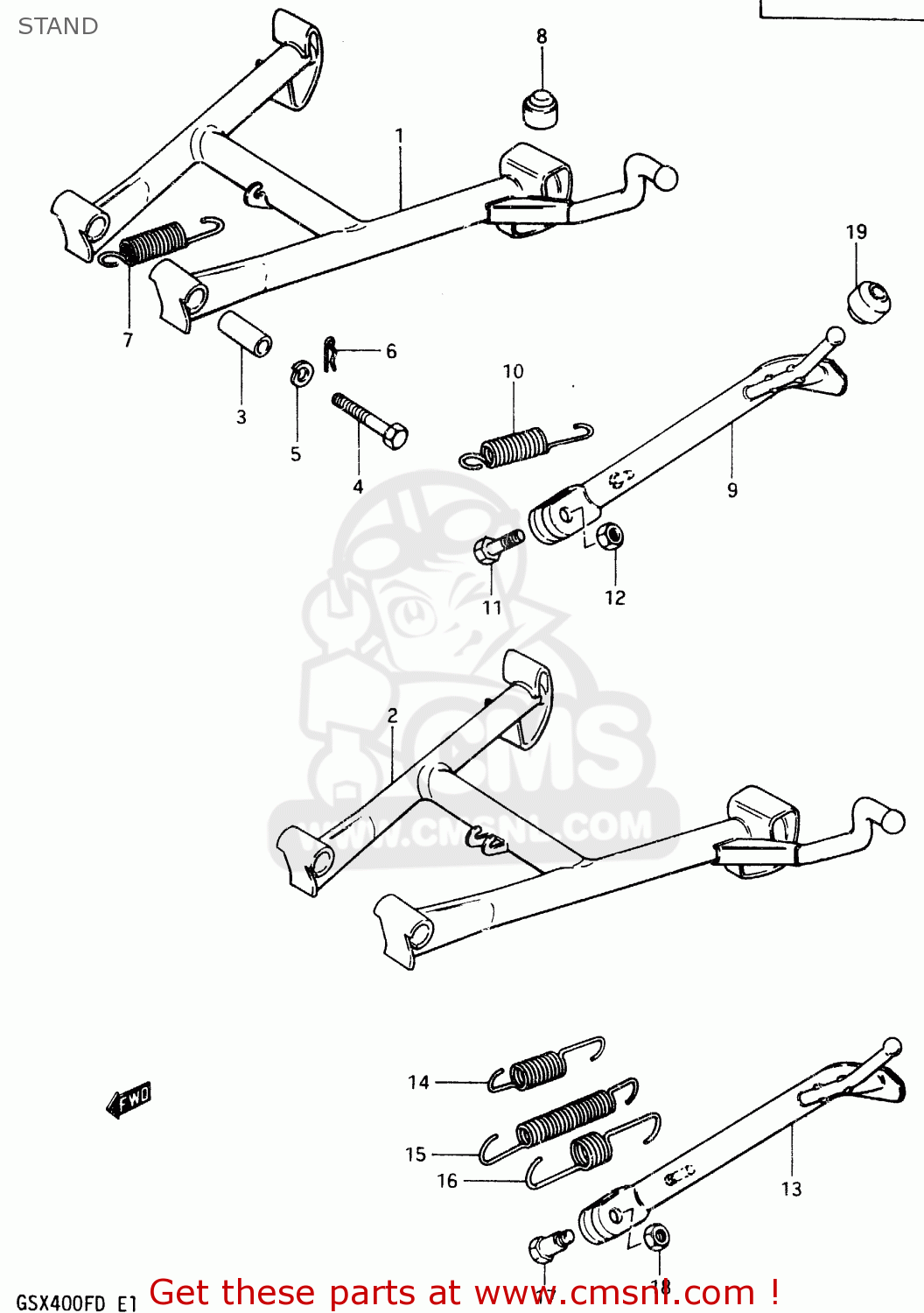

Stand diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

4210033200
ref: 1

STAND, CENTER

€ 71.50

4210033210
ref: 2
E25,E26

STAND, CENTER

€ 69.00

0918010040
ref: 3

SPACER(10X16X38.8)

€ 3.00

0910110018
ref: 4

BOLT

€ 5.50

0832121108
ref: 5

LOCK WASHER

€ 2.00

0938510001
ref: 6

CLIP

€ 1.50

0944318006
ref: 7

SPRING

€ 5.50

0944318003
ref: 7
E25,E26

SPRING

€ 5.50

0932110001
ref: 8

CUSHION

€ 2.50

4231033200
ref: 9

STAND, PROP

€ 35.00

0944317005
ref: 10

SPRING

€ 11.50

0910010067
ref: 11

BOLT(10X30)

€ 3.50

0831022108
ref: 12

NUT

€ 2.50

4231033210
ref: 13
E16,E25,E26

STAND, PROP

€ 31.00

0944317006
ref: 14
E16,E26

SPRING

€ 4.50

0944311008
ref: 15
E25

SPRING

€ 5.50

0944319002
ref: 16
E25

SPRING, OUTER

€ 4.00

0911110019
ref: 17
E16,E25,E26

BOLT L:30

€ 4.50

0831022108
ref: 18
E16,E25,E26

NUT

€ 2.50

0932007001
ref: 19

CUSHION

€ 4.00
