CYLINDER HEAD

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

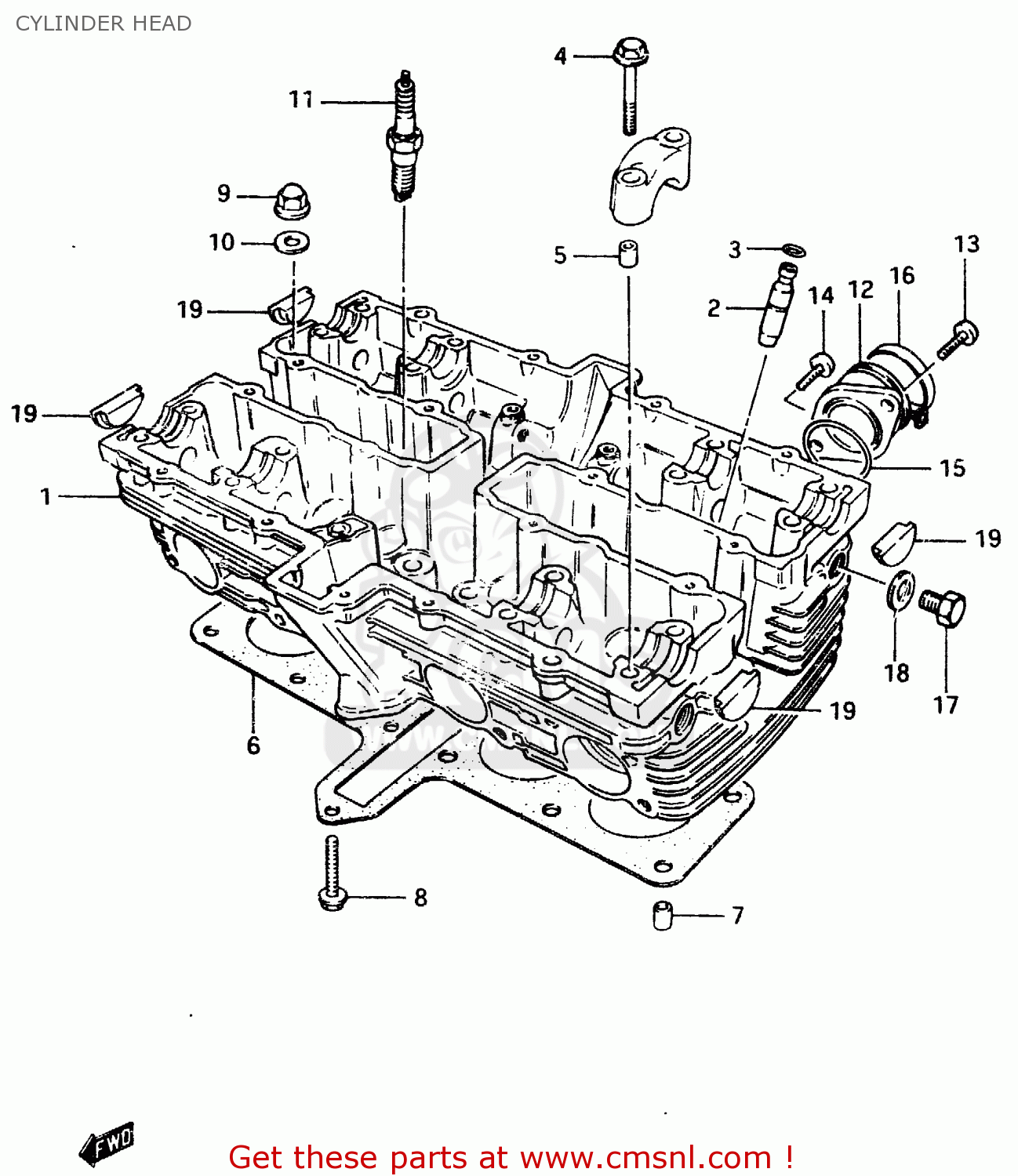

Cylinder head diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

1110033303
ref: 1

CYLINDER HEAD SET

€ 985.00

1111533270
ref: 2

GUIDE, INTAKE VALVE

€ 18.00

0938110004
ref: 3

RING,SNAP

€ 1.50

0910306026
ref: 4

BOLT(6X39)

€ 2.00

0920608001
ref: 5

PIN(6.2X8X11)

€ 2.00

1114133201
ref: 6

GASKET,CYLINDER HEAD (NAS)

€ 62.00

0421111189
ref: 7

PIN

€ 2.00

0151706255
ref: 8

BOLT

€ 2.50

0915908029
ref: 9

NUT

€ 6.00

0916808013
ref: 10

GASKET(8.5X20X2.3) (NAS)

€ 4.50

0948200144
ref: 11

SPARK PLUG D8EA

€ 3.50

0948200145
ref: 11

SPARK PLUG X24ES-U

€ 3.50

0948200149
ref: 11
E2,E4,E6,E16,E17,E21

SPARK PLUG DR8ES-L

€ 3.50

0948200223
ref: 11
E2,E4,E6,E16,E17,E21

PLUG,SPARK(X24ESR-U)

€ 3.50

1311033200
ref: 12

PIPE, INTAKE

€ 39.00

0913906022
ref: 13

SCREW

€ 0.00

0211206165
ref: 14

SCREW

€ 2.00

0928032006
ref: 15

O RING(D:2.4,ID:31.7)

€ 2.50

0940246306
ref: 16

CLAMP

€ 4.50

0924714012
ref: 17

PLUG (14X12)

€ 3.50

0916814004
ref: 18

GASKET(14X19.2X2) (NAS)

€ 2.50

0924123002
ref: 19

PLUG

€ 8.50
