REAR MASTER CYLINDER (E2)

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

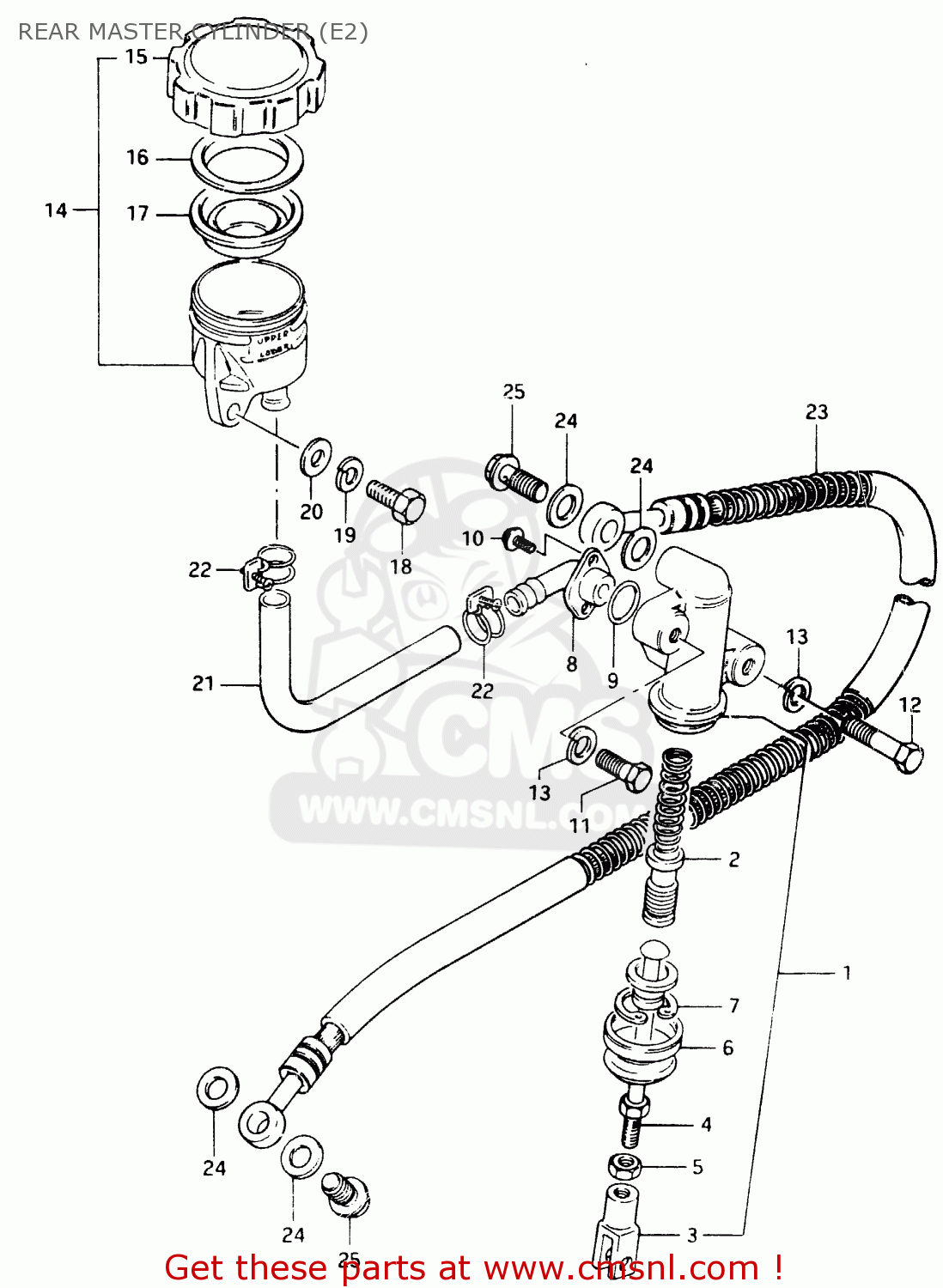

Rear master cylinder (e2) diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

6960034201
ref: 1

CYLINDER ASSEMBLY,REAR MASTER

€ 155.00

6960034810
ref: 2

PISTON/CUP SET

€ 36.50

6969234300
ref: 3

YOKE

€ 11.00

6967034201
ref: 4

ROD,REAR MASTER CYLINDER

€ 13.50

6969334300
ref: 5

NUT,MASTER CYLINDER

€ 1.50

6969145001
ref: 6

BOOT

€ 6.50

5116270040
ref: 7

CIRCLIP

€ 3.00

6967234200
ref: 8

CONNECTOR,HOSE

€ 0.00

6968634200
ref: 9

O RING

€ 3.50

6968834200
ref: 10

SCREW

€ 1.50

0110708358
ref: 11

BOLT

€ 3.50

0110708558
ref: 12

BOLT 8X55

€ 3.00

0832121088
ref: 13

LOCK WASHER

€ 2.00

6974034200
ref: 14

TANK ASSEMBLY,RESERVOIR

€ 27.50

5966918605
ref: 15

CAP

€ 16.50

5966818441
ref: 16

PLATE,DIAPHRAGM

€ 3.50

5966718441
ref: 17

DIAPHRAGM

€ 8.50

0110706168
ref: 18

BOLT, UPPER

€ 3.00

0832121068
ref: 19

LOCK WASHER

€ 2.50

0832221068
ref: 20

WASHER

€ 2.00

6973133200
ref: 21

HOSE

€ 0.00

0940016302
ref: 22

CLAMP

€ 4.50

6948033201
ref: 23

HOSE, REAR BRAKE

€ 0.00

0916110005
ref: 24

WASHER

€ 2.00

0936010009
ref: 25

BOLT UNION

€ 6.50
