GENERATOR

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

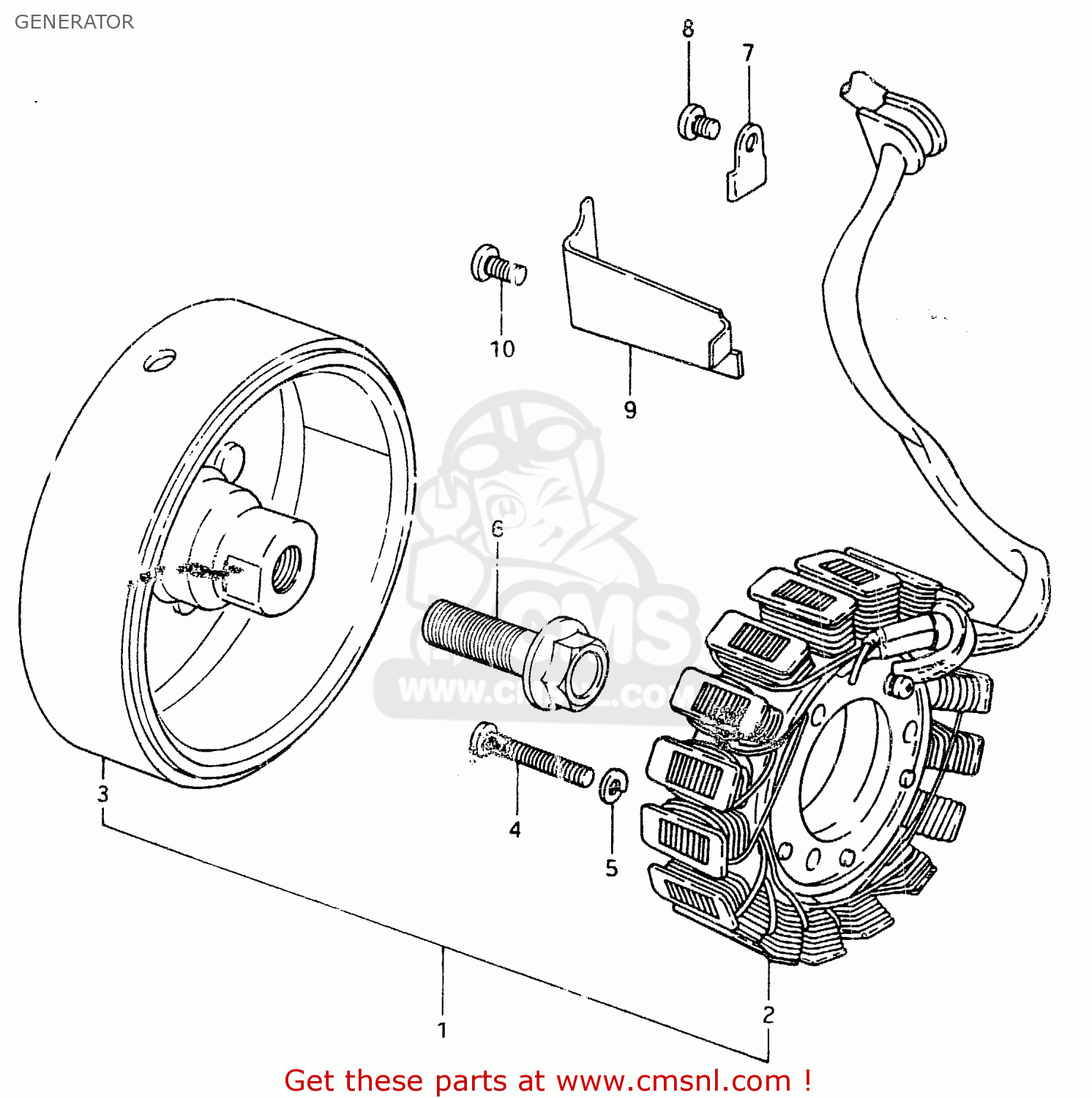

Generator diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

3140033221
ref: 1

GENERATOR ASSY

€ 405.50

3140133221
ref: 2

STARTER ASSY

€ 405.50

3140245090
ref: 3

ROTOR ASSEMBLY

€ 385.00

0211205308
ref: 4

SCREW

€ 1.50

0832121058
ref: 5

LOCK WASHER

€ 2.00

0910312004
ref: 6

BOLT(12X40)

€ 3.00

3149745000
ref: 7

CLAMP,GENERATOR LEAD WIRE

€ 1.50

0211205088
ref: 8

SCREW

€ 2.00

3149845000
ref: 9

CLAMP,GENERATOR LEAD WIRE

€ 2.00

0211206108
ref: 10

SCREW

€ 1.50
