FUEL TANK

GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

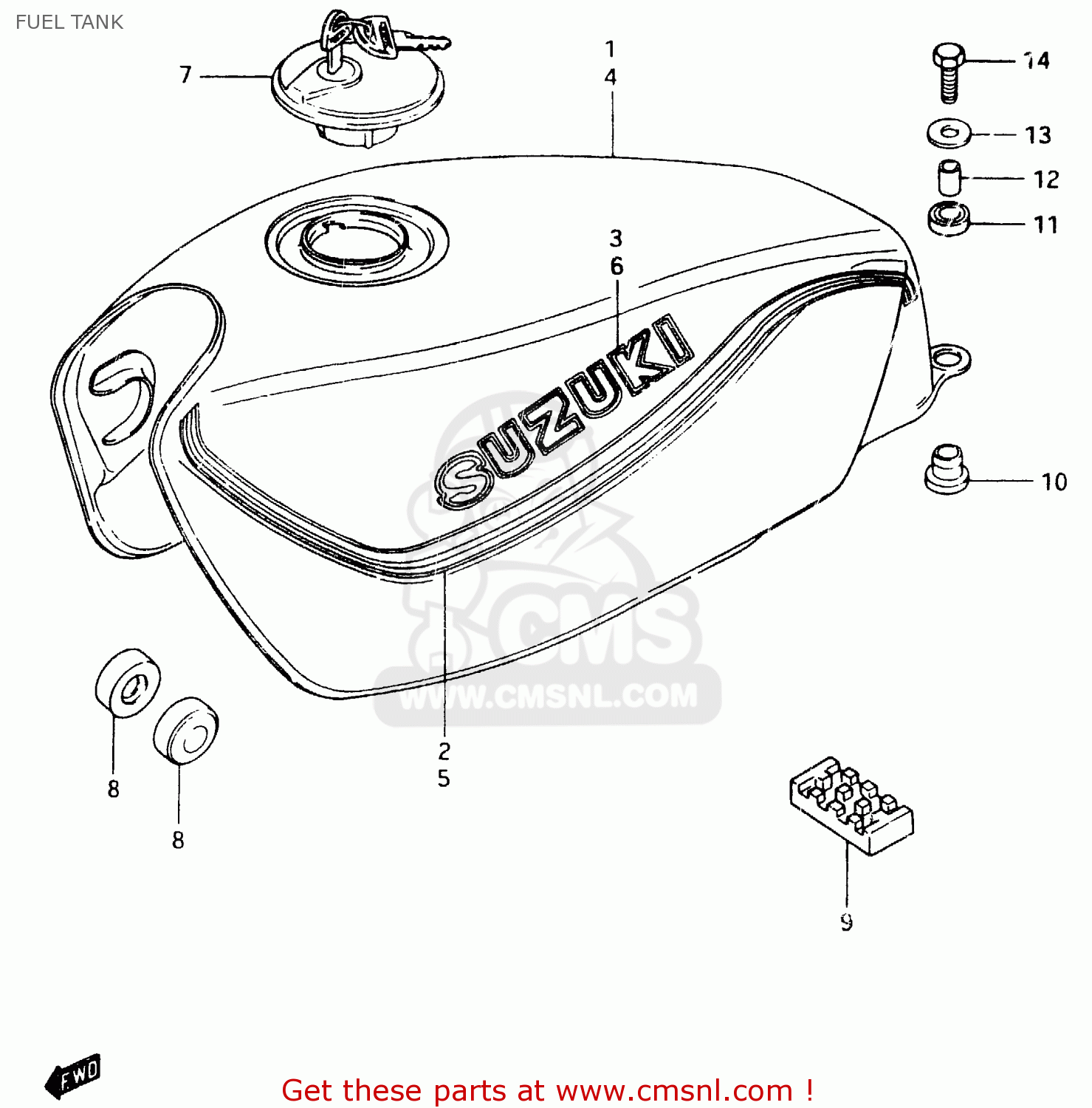

Fuel tank diagram GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

FUEL TANK GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

FUEL TANK GSX400F 1983 (D) (E01 E02 E04 E06 E16 E17 E21 E24 E25 E26 34 48)

prices are in EUR

ref

part #

description

quantity

1

441003323084U
ref: 1

TANK,FUEL

€ 517.00

2

681103323084W
ref: 2

TAPE SET

€ 38.50

3

681113240184V
ref: 3

EMBLEM

€ 17.00

4

441003323085J
ref: 4

TANK, FUEL

€ 517.00

5

681103323073R
ref: 5

TAPE SET

€ 40.00

6

681113240169L
ref: 6

EMBLEM,FUEL TANK

€ 10.50

7

4420034303KEY
ref: 7

CAP SET,FUEL TANK

€ 135.50

8

0932910007
ref: 8

CUSHION

€ 3.00

9

4454134500
ref: 9

CUSHION,FUEL TANK CTR

€ 13.00

10

0932010020
ref: 10

CUSHION

€ 4.00

11

0932014013
ref: 11

CUSHION

€ 3.00

12

0918006072
ref: 12

SPACER

€ 2.00

13

0916006004
ref: 13

WASHER (6.5X24X1.6)

€ 1.50

14

0110706308
ref: 14

BOLT

€ 2.50
