AIR CLEANER (MODEL T/V)
GSXR750 1999 (X)

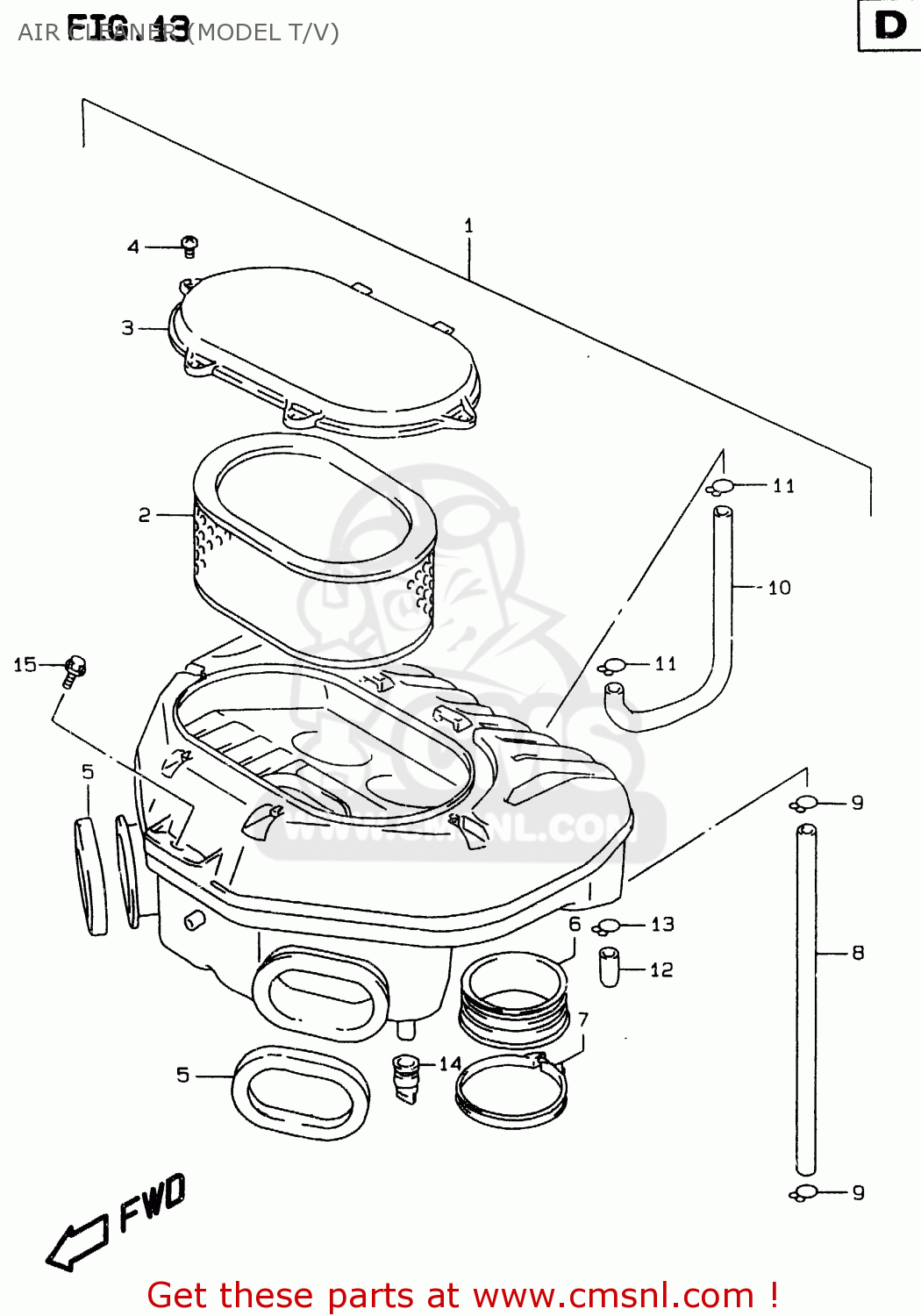

Air cleaner (model t/v) diagram GSXR750 1999 (X)
AIR CLEANER (MODEL T/V) GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1
1370033E00
ref: 1
CLEANER ASSY,AIR
€ 311.00
2
1378033E00
ref: 2
FILTER,AIR CLEANER
€ 41.00
3
1374033E00
ref: 3
CAP,AIR CLEANER
€ 30.00
4
0214205123
ref: 4
SCREW 5X12
€ 1.50
5
1373633E00
ref: 5
CUSHION,DUCT
€ 11.50
6
1388133E00
ref: 6
TUBE,OUTLET
€ 15.00
7
0940272203
ref: 7
CLAMP
€ 7.50
8
1385033E00
ref: 8
TUBE,BREATHER
€ 10.00
9
0940114301
ref: 9
CLIP
€ 2.00
10
1385633E00
ref: 10
TUBE,CONTROL AIR
€ 21.00
11
0940114301
ref: 11
CLIP
€ 2.00
12
1385941B10
ref: 12
PLUG
€ 5.50
13
0940114301
ref: 13
CLIP
€ 2.00
14
1387200110
ref: 14
CAP,DRAIN
€ 3.50
15
0158006163
ref: 15
BOLT
€ 2.50
