AIR CLEANER (MODEL W)
GSXR750 1999 (X)

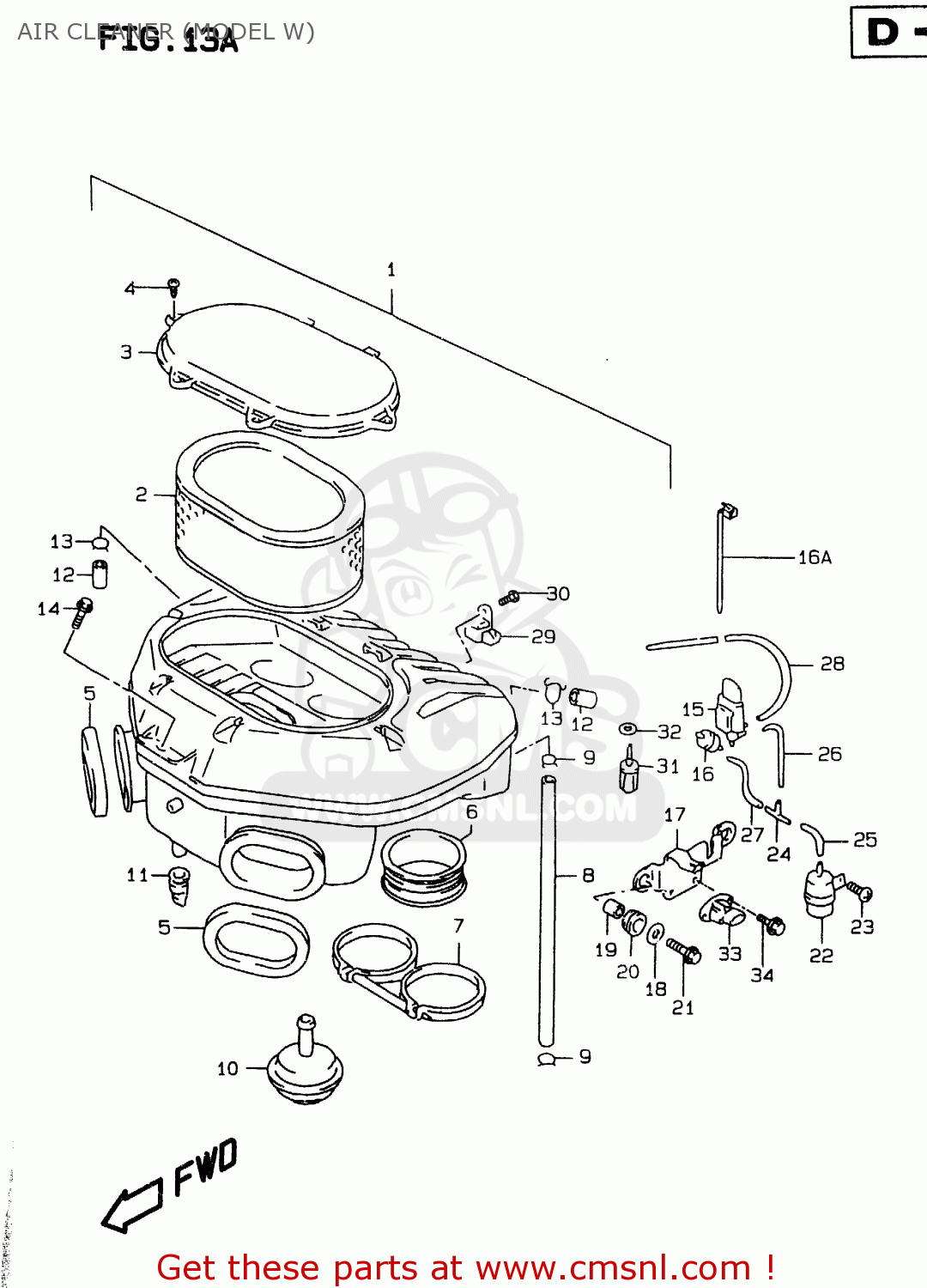

Air cleaner (model w) diagram GSXR750 1999 (X)
AIR CLEANER (MODEL W) GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1-1
1370033E50
ref: 1-1
CLEANER ASSEMBLY,AIR
€ 326.00
1-2
1370033E60
ref: 1-2
E18, E39
CLEANER ASSEMBLY,AIR
€ 326.00
2
1378033E01
ref: 2
FILTER,AIR CLEANER
€ 41.00
3
1374033E00
ref: 3
CAP,AIR CLEANER
€ 30.00
4
0214205123
ref: 4
SCREW 5X12
€ 1.50
5
1373633E00
ref: 5
CUSHION,DUCT
€ 11.50
6
1388133E50
ref: 6
TUBE,OUTLET
€ 15.50
7
1382633E50
ref: 7
CLAMP
€ 29.00
8
1385033E00
ref: 8
TUBE,BREATHER
€ 10.00
9
0940114301
ref: 9
CLIP
€ 2.00
10
1389533E50
ref: 10
DIAPHRAGM,CONTROL VALVE
€ 45.00
11
1387200110
ref: 11
CAP,DRAIN
€ 3.50
12-1
1385941B10
ref: 12-1
PLUG
€ 5.50
12-2
1385941B10
ref: 12-2
E18, E39
PLUG
€ 5.50
13-1
0940114301
ref: 13-1
CLIP
€ 2.00
13-2
0940114301
ref: 13-2
E18, E39
CLIP
€ 2.00
14
0158006163
ref: 14
BOLT
€ 2.50
15
1811570G10
ref: 15
VALVE ASSY,3WAY SOLENOID
€ 73.50
16
9556978040
ref: 16
VALVE,CHECK
€ 24.00
16A
0940714403
ref: 16A
CLAMP(L:125)
€ 2.50
17
1811933E00
ref: 17
BRACKET,SOLENOID VALVE
€ 7.50
18
0916006077
ref: 18
WASHER(6.5X20X1.2)
€ 2.00
19
0918006257
ref: 19
SPACER(6.5X9X6.5)
€ 2.50
20
0932009036
ref: 20
CUSHION
€ 4.00
21
0150006203
ref: 21
BOLT
€ 2.00
22
1371502F00
ref: 22
CHAMBER,VACUUM
€ 20.50
23
0214205123
ref: 23
SCREW 5X12
€ 1.50
24
0936704007
ref: 24
3 WAY
€ 3.50
25
0935540805600
ref: 25
L:600->40
HOSE(4X8X600)
€ 9.00
26
0935540805600
ref: 26
L:600->150
HOSE(4X8X600)
€ 9.00
27
0935540805600
ref: 27
L:600->160
HOSE(4X8X600)
€ 9.00
28
0935540805600
ref: 28
L:600->480
HOSE(4X8X600)
€ 9.00
29
1562002F00
ref: 29
SENSOR,BOOST
€ 280.50
30
0214206103
ref: 30
SCREW 6X10
€ 2.00
31
1365061B00
ref: 31
SENSOR,WATER TEMP
€ 60.00
32
0916812016
ref: 32
GASKET(12.2X21X0.8) (NAS)
€ 2.50
33
1859080C50
ref: 33
SENSOR,MAP
€ 365.50
34
0155006123
ref: 34
BOLT
€ 2.50
