STARTING MOTOR

GSXR750 1999 (X)

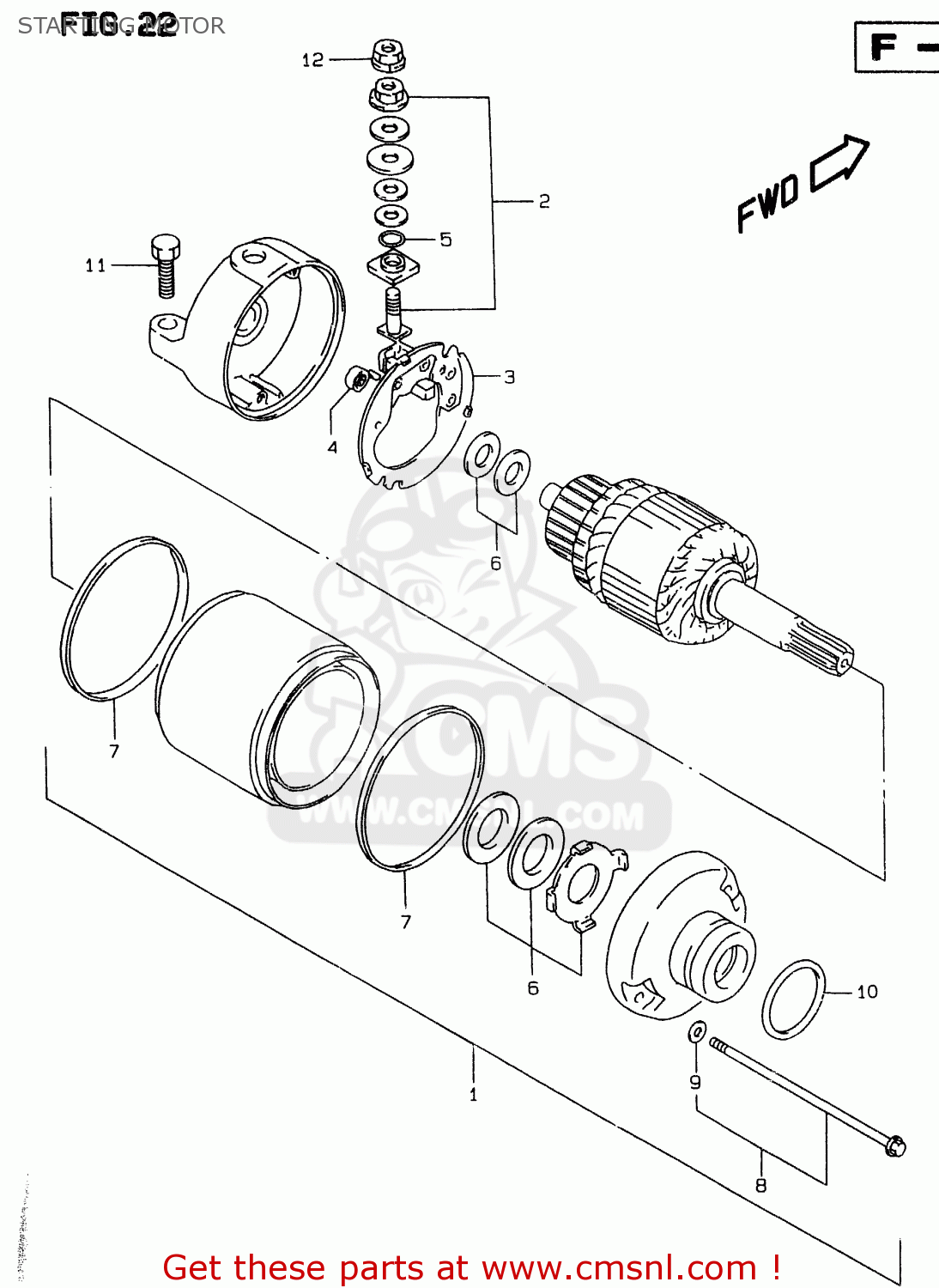

Starting motor diagram GSXR750 1999 (X)

STARTING MOTOR GSXR750 1999 (X)

STARTING MOTOR GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3110033E00
ref: 1

MOTOR ASSEMBLY,STARTING

€ 451.50

2

3113013E00
ref: 2

BRUSH TERMINAL SET

€ 42.50

3

3113233E00
ref: 3

BRUSH HOLDER SET

€ 57.00

4

3113531300
ref: 4

SPRING,BRUSH

€ 4.00

5

3114349040
ref: 5

O RING

€ 3.00

6

3117019B10
ref: 6

SHIM SET,STARTING MOTOR

€ 8.00

7

3126413E00
ref: 7

O RING

€ 6.00

8

3128013E00
ref: 8

BOLT

€ 16.50

9

3115613E00
ref: 9

O RING

€ 3.00

10

0928024003
ref: 10

O RING(D:3,ID:24.5)

€ 2.00

11

0912806024
ref: 11

SCREW (6X25)

€ 2.50

12

0836135068
ref: 12

NUT

€ 2.00
