Buy Suzuki GSXR Parts Online


REAR SWINGING ARM

GSXR750 1999 (X)

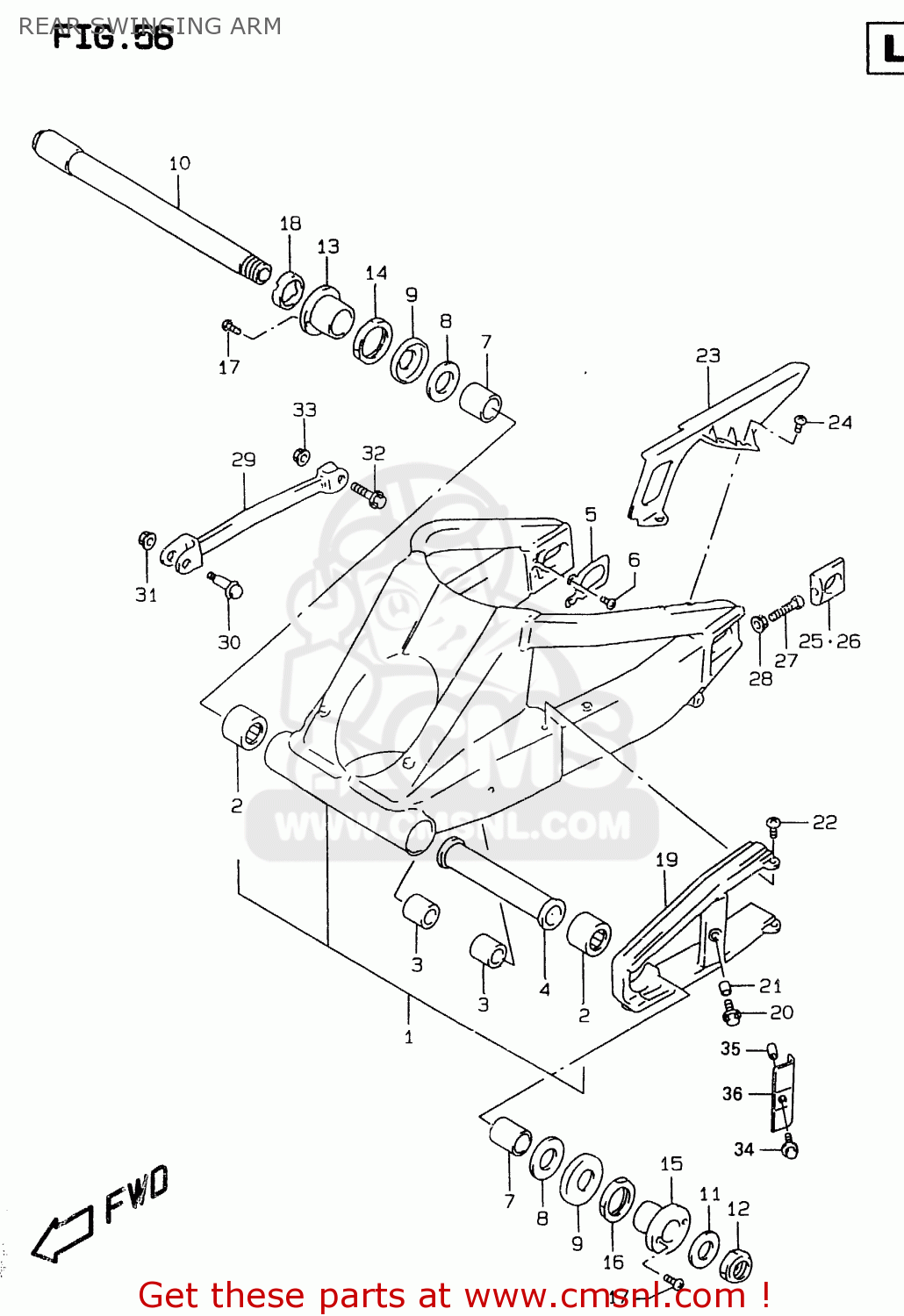

Rear swinging arm diagram GSXR750 1999 (X)

REAR SWINGING ARM GSXR750 1999 (X)
REAR SWINGING ARM GSXR750 1999 (X)
REAR SWINGING ARM GSXR750 1999 (X)
prices are in EUR
ref
part #
description
quantity
1-1
6100033E00
ref: 1-1
MODEL T/V
SWING ARM ASSEMBLY,REAR
6100033E00
€ 1,833.00
1-2
6100033E10
ref: 1-2
MODEL W
SWINGINGARM ASSY,RR
€ 1,833.00
2
0926330040
ref: 2
BEARING(30X40X25)
0926330040
€ 31.50
3
0926317039
ref: 3
BEARING(17X24X20)
0926317039
€ 18.00
4-1
6128033E00
ref: 4-1
MODEL T/V
SPACER COMP,REAR SWING PIVOT
6128033E00
€ 26.00
4-2
6128033E00
ref: 4-2
MODEL W
SPACER COMP,REAR SWING PIVOT
6128033E00
€ 26.00
5
6112433E00
ref: 5
PLATE,RR SWING ARM BRKT
6112433E00
€ 3.50
6
0214206103
ref: 6
SCREW 6X10
0214206103
€ 2.00
7
6125117E10
ref: 7
SPACER,REAR SWING ARM PIVOT
6125117E10
€ 7.00
8
0821125481
ref: 8
WASHER
0821125481
€ 5.50
9
6126217E10
ref: 9
DUST SEAL,RR SWGARM PIVOT
6126217E10
€ 6.50
10
6121133E00
ref: 10
SHAFT,RR SWINGINGARM PIVOT
6121133E00
€ 100.00
11
0916025070
ref: 11
WASHER(25.2X42X3.2)
0916025070
€ 4.50
12
0915925001
ref: 12
NUT
0915925001
€ 29.00
13
6121233E00
ref: 13
BOSS,RR SWINGINGARM PIVOT,R
6121233E00
€ 53.50
14
6121333E00
ref: 14
NUT,RR SWGARM PIVOT BOSS,R
6121333E00
€ 27.00
15
6121433E00
ref: 15
BOSS,RR SWINGINGARM PIVOT,L
€ 41.00
16
6121533E00
ref: 16
NUT,RR SWGARM PIVOT BOSS,L
6121533E00
€ 16.00
17
0212205123
ref: 17
SCREW
€ 2.00
18
6121440C30
ref: 18
NUT,REAR SWING ARM PIVOT
€ 16.50
19-1
6127333E00
ref: 19-1
MODEL T/V ->61273-33
BUFFER,CHAIN TOUCH DEFLECTOR
€ 40.00
19-2
6127333E01
ref: 19-2
MODEL W
BUFFER,CHAIN TOUCH DEFENSE
6127333E01
€ 40.00
20
0911606111
ref: 20
MODEL T/V
BOLT 6X20,WITH PLAIN WASHER
€ 2.00
21
0918006284
ref: 21
MODEL T/V
SPACER(6.5X10X8)
0918006284
€ 3.50
22-1
0913906052
ref: 22-1
MODEL T
SCREW (6X14)
0913906052
€ 2.00
22-2
0913906081
ref: 22-2
MODEL V/W
SCREW
0913906081
€ 2.00
23
6131133E00
ref: 23
CASE,CHAIN
€ 30.00
24
0913906083
ref: 24
SCREW(6X16)
0913906083
€ 2.50
25
6144533E00
ref: 25
ADJUSTER,CHAIN,R
6144533E00
€ 42.00
26-1
6144633E00
ref: 26-1
MODEL T
ADJUSTER,CHAIN,LEFT
6144633E00
€ 37.50
26-2
6144633E10
ref: 26-2
MODEL V/W
ADJUSTER,CHAIN,L
€ 42.50
27
0910008287
ref: 27
BOLT(8X50)
0910008287
€ 3.00
28
0831610083
ref: 28
NUT
0831610083
€ 3.00
29
6431033E00
ref: 29
TORQUELINK,RR
6431033E00
€ 82.00
30-1
0911108058
ref: 30-1
MODEL T
BOLT
€ 4.00
30-2
0911108083
ref: 30-2
MODEL V/W
BOLT(8X44)
€ 6.00
31
0831931087
ref: 31
NUT
0831931087
€ 2.50
32
0910310019
ref: 32
BOLT(10X37)
0910310019
€ 2.50
33
0831931107
ref: 33
NUT
0831931107
€ 3.00
34
0155006203
ref: 34
MODEL W
BOLT
0155006203
€ 2.50
35
0918006310
ref: 35
MODEL W
SPACER(6.5X10X10)
0918006310
€ 2.00
36
6127933E00
ref: 36
MODEL W
PLATE,CHAIN BUFFER
6127933E00
€ 6.00
