WIRING HARNESS (MODEL W)

GSXR750 1999 (X)

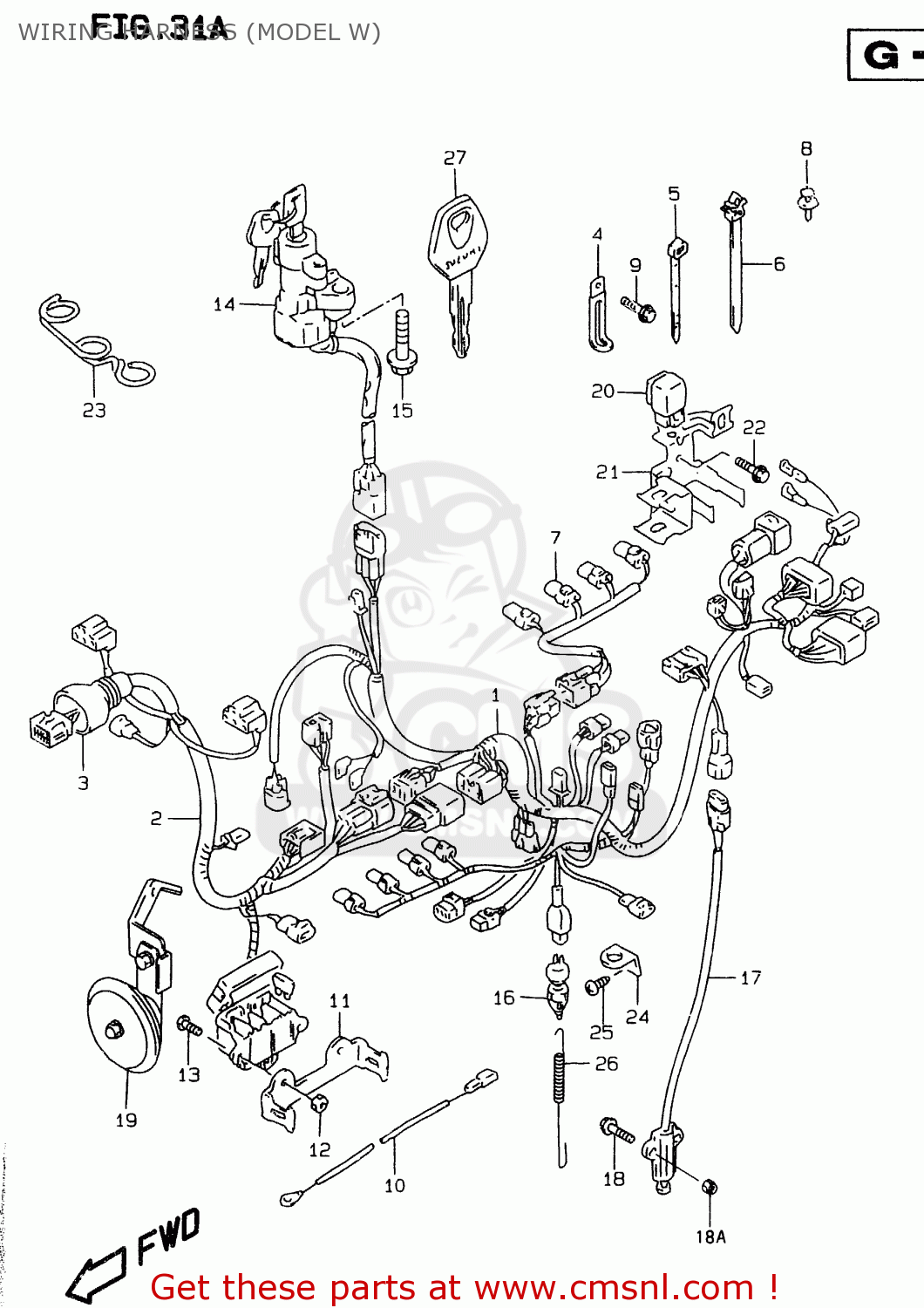

Wiring harness (model w) diagram GSXR750 1999 (X)

WIRING HARNESS (MODEL W) GSXR750 1999 (X)

WIRING HARNESS (MODEL W) GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3661033EA0
ref: 1

HARNESS,WIRING NO.1

€ 698.50

2-1

3662033EA0
ref: 2-1

HARNESS,WIRING NO.2

€ 254.00

2-2

3662033EB0
ref: 2-2
E4, E18, E22, E25, E

HARNESS,WIRING NO.2

€ 257.00

3

3661833E00
ref: 3

COVER,SPEEDOMETER COUPLER

€ 5.50

4-1

0940406429
ref: 4-1

CLAMP(L:45)

€ 2.50

4-2

0940406432
ref: 4-2

CLAMP(L:65)

€ 2.50

5-1

0940714403
ref: 5-1

CLAMP(L:125)

€ 2.50

5-2

0940725401
ref: 5-2

CLAMP(L:235)

€ 4.00

6

0940717401
ref: 6

CLAMP

€ 5.00

6A

0214206123
ref: 6A

SCREW 6X12

€ 2.00

7

3685633EA0
ref: 7

WIRE,INJECTOR LEAD

€ 45.00

8

09409073055PK
ref: 8

CLIP(BLACK)

€ 1.50

9

0155006103
ref: 9

BOLT

€ 2.50

10

3685117E10
ref: 10

WIRE,OIL PRESSURE SWITCH LEAD

€ 13.50

11

3674433E00
ref: 11

BRACKET,FUSE BOX

€ 9.50

12

9461927A00
ref: 12

NUT,COWLING SCREEN

€ 6.50

13

0214205123
ref: 13

SCREW 5X12

€ 1.50

14-1

3710033E20
ref: 14-1

LOCK ASSY,STEERING

€ 223.50

14-2

3710033E30
ref: 14-2
E24

LOCK ASSY, STEERING

€ 142.50

15

0913908016
ref: 15

BOLT(8X20)

€ 3.50

16

3774024A00
ref: 16

SWITCH ASSY,STOP LAMP

€ 20.50

17

3784026X50
ref: 17

SWITCH ASSY,SIDE STAND WARNING

€ 100.50

18

0155006203
ref: 18

BOLT

€ 2.50

18A

0831921063
ref: 18A

NUT

€ 2.50

19

3850033EA0
ref: 19

HORN ASSY

€ 57.00

20

3874024X50
ref: 20

RELAY ASSY

€ 37.50

21

3893033E10
ref: 21

BRACKET COMP,FUEL PUMP RLY

€ 6.50

22

0155006123
ref: 22

BOLT

€ 2.50

23

3661933E00
ref: 23

GUIDE,WIRING HARNESS

€ 10.50

24

4325121E00
ref: 24

BRACKET,STOP LAMP SWITCH

€ 3.50

25

0214206083
ref: 25

SCREW

€ 1.50

26

0944306005
ref: 26

SPRING

€ 6.00

27

3714633E00
ref: 27
OPT

KEY,BLANK

€ 13.00
