CRANKCASE COVER (MODEL T/V)
GSXR750 1999 (X)

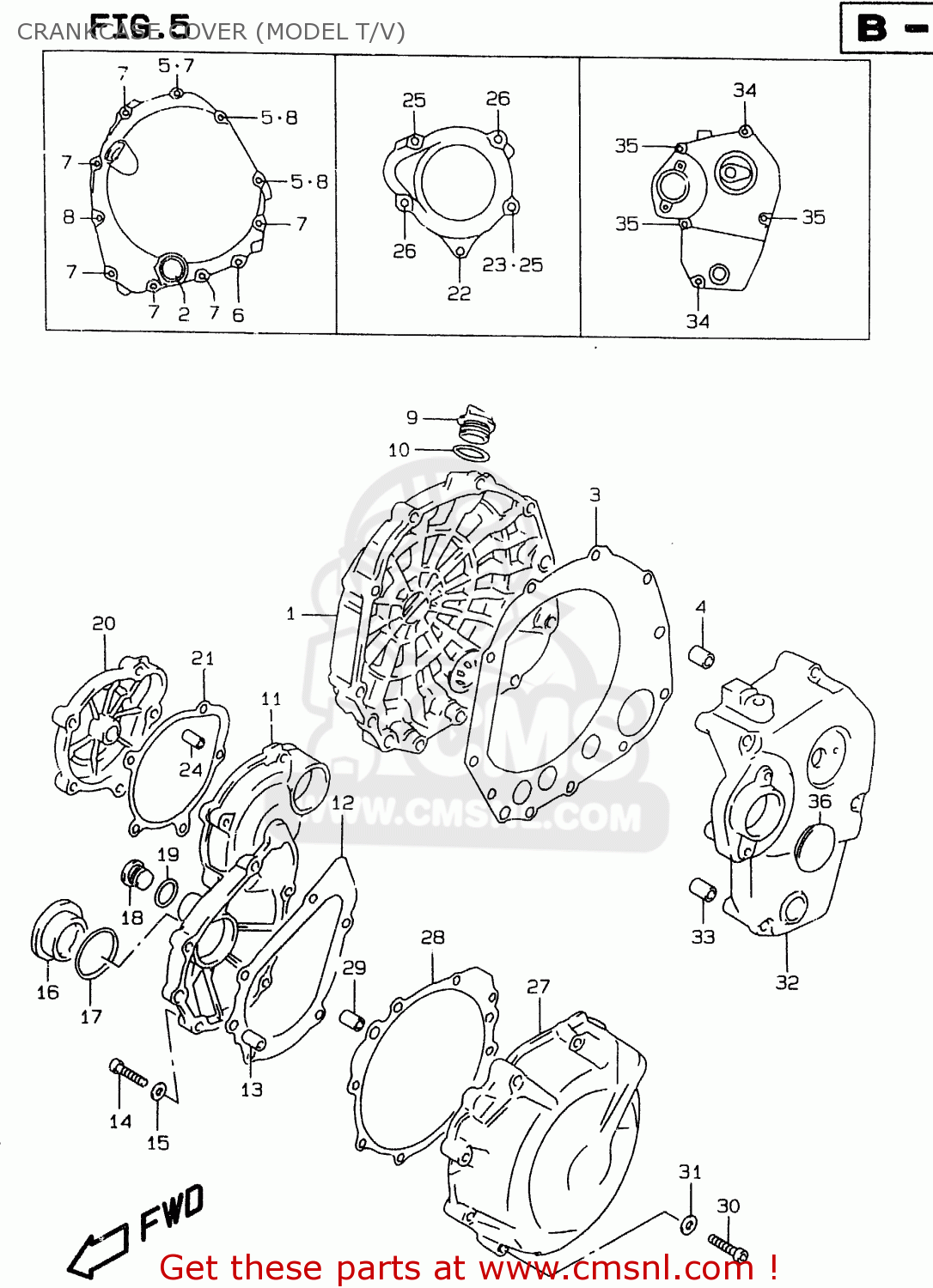

Crankcase cover (model t/v) diagram GSXR750 1999 (X)
CRANKCASE COVER (MODEL T/V) GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1
1134033E00
ref: 1
COVER,CLUTCH
€ 195.00
2
1197133210
ref: 2
LENS,OIL LEVEL CHECK
€ 13.50
3
1148233E01
ref: 3
GASKET,CLUTCH COVER (NAS)
€ 16.00
4
0421109189
ref: 4
PIN
€ 2.00
5
0916806024
ref: 5
GASKET(5.8X11X1.2) (NAS)
€ 2.00
6
0713006253
ref: 6
BOLT,CL.COVER
€ 3.00
7
0713006303
ref: 7
BOLT
€ 3.00
8
0713006403
ref: 8
BOLT
€ 3.50
9
0925920008
ref: 9
PLUG
€ 6.50
10
0928017003
ref: 10
O RING(D:3.1,ID:16.8)
€ 2.00
11
1138133E01
ref: 11
COVER,STARTER CLUTCH
€ 196.00
12
1149133E02
ref: 12
GASKET,STARTER CLUTCH COVER
€ 8.00
13
0421109149
ref: 13
PIN
€ 2.00
14
0713006253
ref: 14
BOLT,CL.COVER
€ 3.00
15
0916806024
ref: 15
GASKET(5.8X11X1.2) (NAS)
€ 2.00
16
092593601620H
ref: 16
PLUG(SILVER)
€ 10.50
17
0928033004
ref: 17
O RING(D:3.1,ID:32.7)
€ 2.50
18
0924816008
ref: 18
PLUG
€ 4.00
19
0916816002
ref: 19
GASKET(16X22X2) (NAS)
€ 2.00
20
1138233E00
ref: 20
CAP,STARTER IDLE GEAR
€ 66.50
21
1149233E00
ref: 21
GASKET,START IDLE GEAR CAP (NAS)
€ 6.50
22
0713006553
ref: 22
BOLT
€ 2.50
23
0916806024
ref: 23
GASKET(5.8X11X1.2) (NAS)
€ 2.00
24
0421109149
ref: 24
PIN
€ 2.00
25
0713006253
ref: 25
BOLT,CL.COVER
€ 3.00
26
0713006353
ref: 26
BOLT
€ 3.50
27
1135133E01
ref: 27
COVER,MAGNETO
€ 103.00
28
1148333E01
ref: 28
GASKET,MAGNETO COVER (NAS)
€ 11.00
29
0421109149
ref: 29
PIN
€ 2.00
30
0713006303
ref: 30
BOLT
€ 3.00
31-1
0916806024
ref: 31-1
MODEL T
GASKET(5.8X11X1.2) (NAS)
€ 2.00
31-2
0916806024
ref: 31-2
MODEL V
GASKET(5.8X11X1.2) (NAS)
€ 2.00
32
1136133E01
ref: 32
COVER,ENGINE SPROCKET
€ 169.00
33
0421109149
ref: 33
PIN
€ 2.00
34
0713006553
ref: 34
BOLT
€ 2.50
35
0713006653
ref: 35
BOLT
€ 4.00
36
0925030003
ref: 36
CAP(OD:36)
€ 4.00
