WIRING HARNESS (MODEL T/V)
GSXR750 1999 (X)

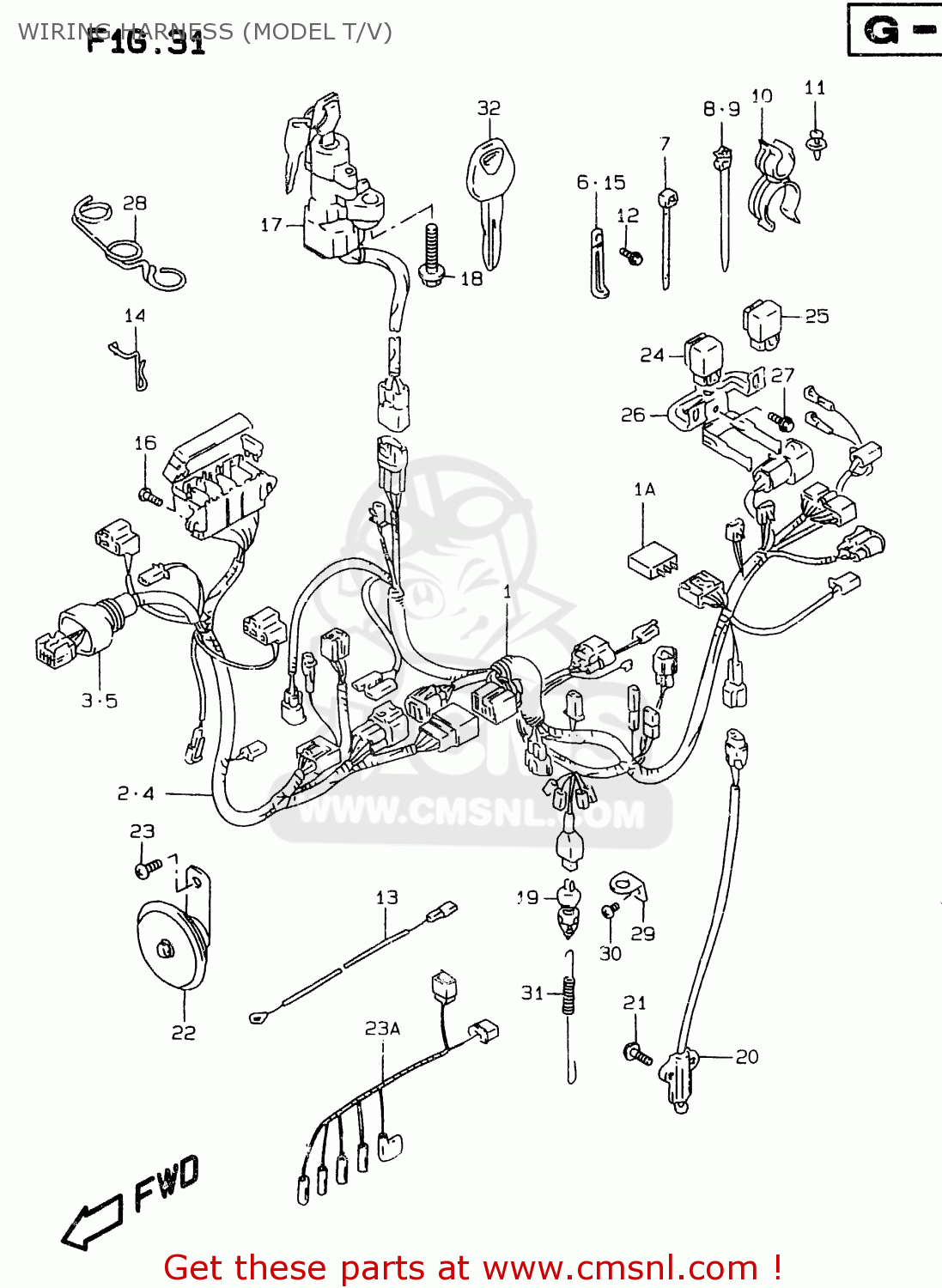

Wiring harness (model t/v) diagram GSXR750 1999 (X)
WIRING HARNESS (MODEL T/V) GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1
3661033E00
ref: 1
HARNESS,WIRING NO.1
€ 492.50
1A
3661138A00
ref: 1A
DIODE(STANLEY DE8804)
€ 13.00
2
3662033E10
ref: 2
HARNESS,WIRING NO.2
€ 274.00
3
3661833E00
ref: 3
COVER,SPEEDOMETER COUPLER
€ 5.50
4
3662033E20
ref: 4
E4, E18, E22, E25, E
HARNESS, WIRING NO. 2
€ 270.00
5
3661833E00
ref: 5
E4, E18, E22, E25, E
COVER,SPEEDOMETER COUPLER
€ 5.50
6-1
0940406429
ref: 6-1
CLAMP(L:45)
€ 2.50
6-2
0940406432
ref: 6-2
<-09404-06431
CLAMP(L:65)
€ 2.50
7-1
0940711401
ref: 7-1
<-09407-10403
CLAMP(L:95)
€ 2.50
7-2
0940714403
ref: 7-2
CLAMP(L:125)
€ 2.50
7-3
0940725401
ref: 7-3
CLAMP(L:235)
€ 4.00
8
0940717401
ref: 8
<-09407-14408
CLAMP
€ 5.00
9
0940718403
ref: 9
<-09407-18402
CLAMP L:165
€ 2.50
10
0940800055
ref: 10
CLAMP
€ 3.00
11
09409073055PK
ref: 11
CLIP(BLACK)
€ 1.50
12
0155006103
ref: 12
BOLT
€ 2.50
13
3685117E10
ref: 13
WIRE,OIL PRESSURE SWITCH LEAD
€ 13.50
14
3674533E00
ref: 14
STOPPER,FUSE BOX
€ 7.00
15
0940406433
ref: 15
CLAMP(L:80)
€ 3.00
16
0214206203
ref: 16
SCREW
€ 2.00
17-1
3710033E01
ref: 17-1
<-37100-33E00
LOCK ASSY,STEERING
€ 170.00
17-2
3710033E10
ref: 17-2
MODEL T E24
LOCK ASSY, STEERING
€ 160.00
17-3
3710033E11
ref: 17-3
MODEL V E24
LOCK ASSY,STEERING
€ 160.00
18
0913908016
ref: 18
BOLT(8X20)
€ 3.50
19
3774024A00
ref: 19
SWITCH ASSY,STOP LAMP
€ 20.50
20
3784026X50
ref: 20
SWITCH ASSY,SIDE STAND WARNING
€ 100.50
21
0910306130
ref: 21
BOLT 6X20
€ 2.50
22
3850020E10
ref: 22
HORN ASSY
€ 75.50
23
0912508003
ref: 23
SCREW(8X14)
€ 1.50
23A
3685633E10
ref: 23A
E2
WIRE,CARB HEATER
€ 25.50
24
3874024X50
ref: 24
RELAY ASSY
€ 37.50
25
3874024X50
ref: 25
RELAY ASSY
€ 37.50
26
3893033E00
ref: 26
BRACKET,SIDE STAND RELAY
€ 8.00
27
0155006123
ref: 27
BOLT
€ 2.50
28
3661933E00
ref: 28
GUIDE,WIRING HARNESS
€ 10.50
29
4325121E00
ref: 29
BRACKET,STOP LAMP SWITCH
€ 3.50
30
0214206083
ref: 30
SCREW
€ 1.50
31
0944306005
ref: 31
SPRING
€ 6.00
32
3714646E00
ref: 32
OPT
KEY,BLANK
€ 13.00
