STEERING STEM

GSXR750 1999 (X)

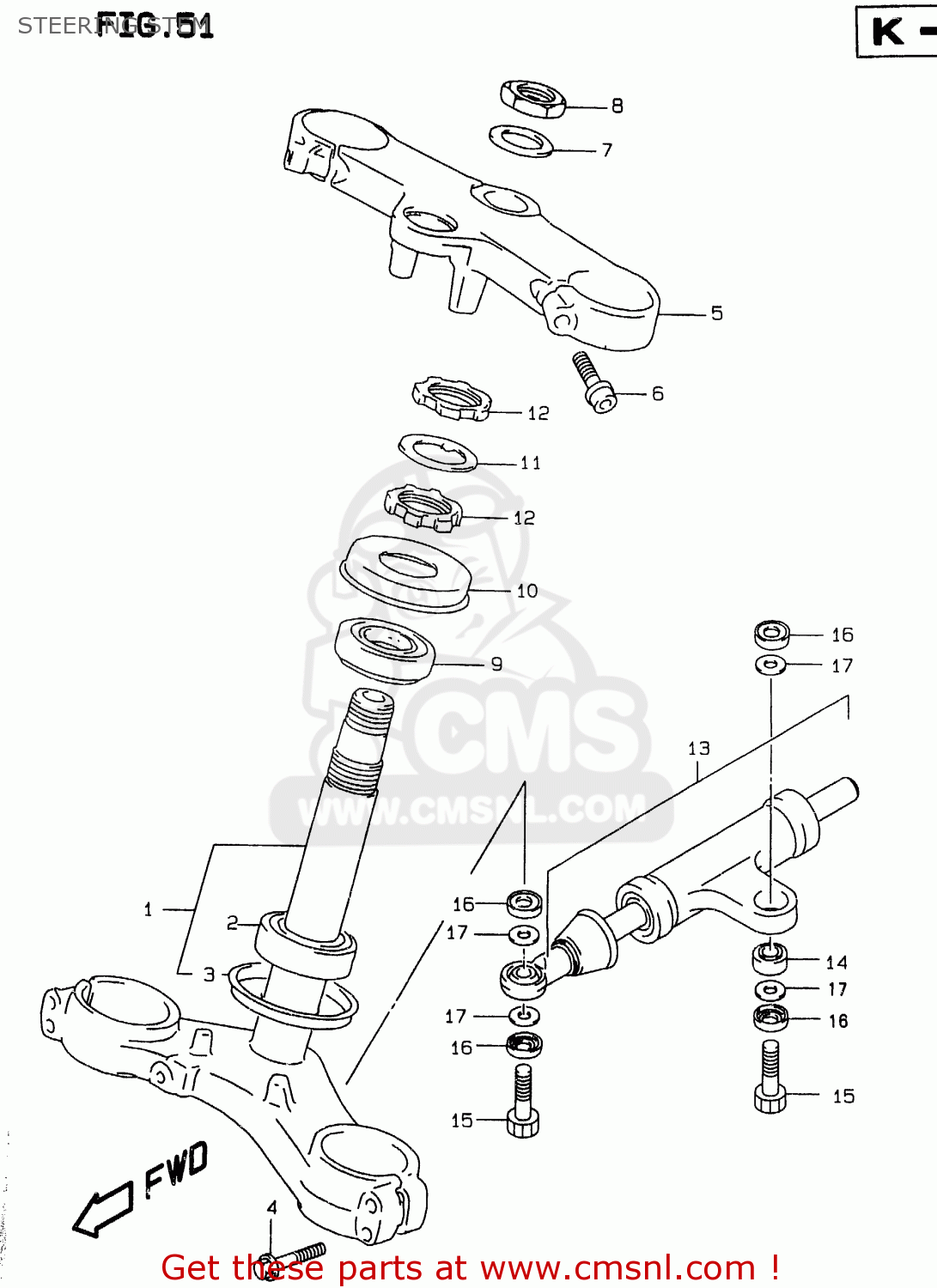

Steering stem diagram GSXR750 1999 (X)

STEERING STEM GSXR750 1999 (X)

STEERING STEM GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

5141033E00
ref: 1-1
MODEL T/V

STEM,STEERING

€ 836.00

1-2

5141033E20
ref: 1-2
MODEL W

STEM,STEERING

€ 836.00

2

0926730010
ref: 2

BEARING(30X55X17)

€ 46.50

3

5164412C00
ref: 3

SEAL,STEERING LWR

€ 5.50

4

0155008407
ref: 4

BOLT

€ 3.50

5

5131133E00
ref: 5

HEAD,STEERING STEM

€ 298.50

6

0155008407
ref: 6

BOLT

€ 3.50

7-1

5135629E00
ref: 7-1
MODEL T/V

WASHER,STEM HEAD

€ 8.00

7-2

5135442E00
ref: 7-2
MODEL W

WASHER

€ 14.50

8

5135327C40
ref: 8

NUT,STEM HEAD

€ 14.50

9

0926730010
ref: 9

BEARING(30X55X17)

€ 46.50

10

5164333E00
ref: 10

SEAL,STEERING UPR DUST

€ 12.50

11

5164133E00
ref: 11

WASHER,STEERING STEM

€ 3.00

12

5163133E00
ref: 12

NUT,STEERING STEM

€ 12.00

13

5175033E00
ref: 13
MODEL W

DAMPER ASSY,STEERING

€ 741.00

14

0926908003
ref: 14
MODEL W

BEARING(8X17.5X11)

€ 39.50

15

0713008303
ref: 15
MODEL W

BOLT

€ 3.00

16

6433940410
ref: 16
MODEL W

6433940410

17

0918108106
ref: 17
MODEL W

SHIM(8X12X0.8)

€ 3.00
