FRONT FENDER (MODEL W)
GSXR750 1999 (X)

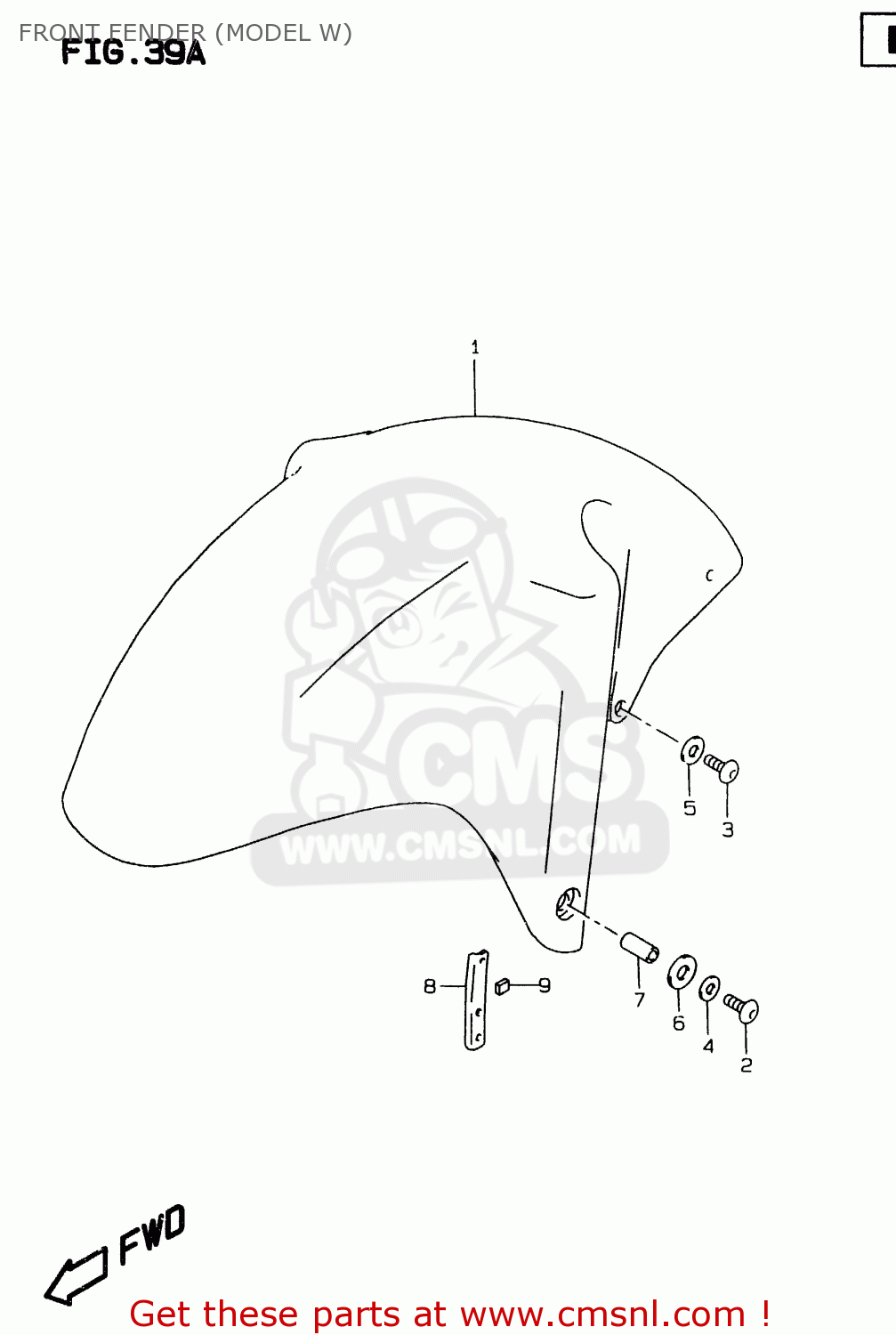

Front fender (model w) diagram GSXR750 1999 (X)
FRONT FENDER (MODEL W) GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1-1
5311033E40291
ref: 1-1
FOR G7U, 3CG
FENDER,FR
€ 130.00
1-2
5311033E60
ref: 1-2
FOR L99
FENDER,FR
€ 147.00
1-3
5311033E50291
ref: 1-3
E22 FOR G7U, 3CG
FENDER, FRONT (BLACK)
€ 0.00
1-4
5311033E70
ref: 1-4
E22 FOR L99
FENDER,FR
€ 191.00
2
0913906028
ref: 2
SCREW(6X20)
€ 3.50
3
0913906030
ref: 3
SCREW(6X16)
€ 3.50
4
0916006079
ref: 4
WASHER(6.5X16X1.2)
€ 2.00
5
0916106021
ref: 5
WASHER(6.3X16X1.5)
€ 2.50
6
5312133E00
ref: 6
WASHER,FR FENDER FR NO.2
€ 3.00
7
0918006258
ref: 7
SPACER(6.5X9X6.7)
€ 3.00
8
5312233E00
ref: 8
PLATE,FRONT FENDER
€ 5.50
9
5312333E00
ref: 9
CUSHION
€ 3.00
