OIL COOLER

GSXR750 1999 (X)

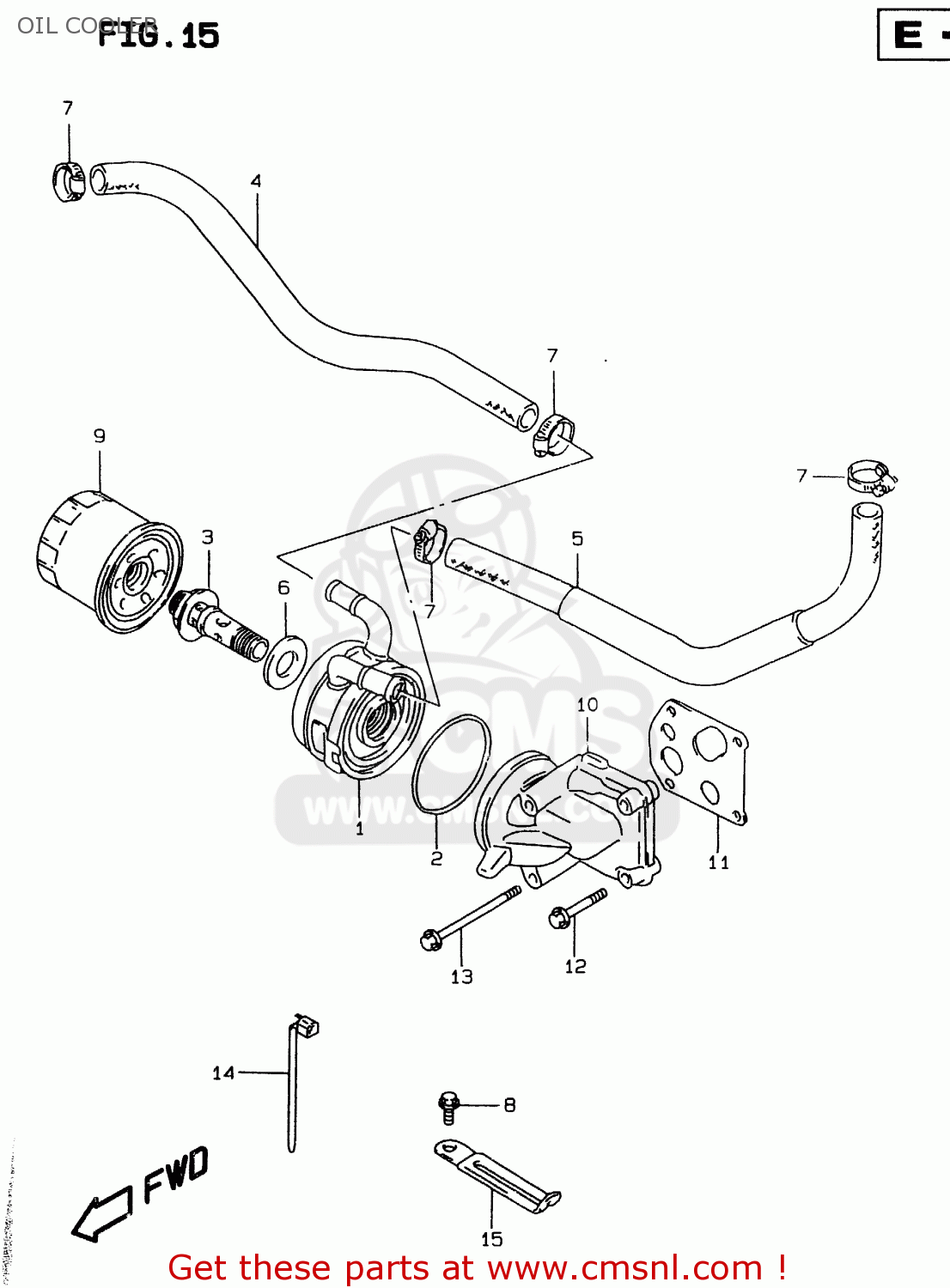

Oil cooler diagram GSXR750 1999 (X)

OIL COOLER GSXR750 1999 (X)

OIL COOLER GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

1660033E00
ref: 1

COOLER ASSEMBLY,OIL

€ 422.00

2

0928064003
ref: 2

O RING(D:3.1,ID:63.9)

€ 5.00

3

1659133C00
ref: 3

BOLT,OIL COOLER UNION

€ 46.00

4

1646133E00
ref: 4

HOSE,OIL COOLER WATER IN

€ 19.50

5

1647133E00
ref: 5

HOSE,OIL COOLER WATER OUT

€ 18.50

6

0822122355
ref: 6

SHIM

€ 2.00

7

0940222511
ref: 7

CLAMP

€ 6.00

8

0910306083
ref: 8
EXCEPT E18, E39

BOLT 6X12

€ 2.50

9-1

1651006B01
ref: 9-1
MODEL T/V

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

9-2

1651034E00
ref: 9-2
MODEL W

FILTER ASSEMBLY,ENGINE OIL

€ 12.50

10-1

1651533E00
ref: 10-1
MODEL T/V

HOLDER,OIL FILTER

€ 73.50

10-2

1651534E00
ref: 10-2
MODEL W

HOLDER,OIL FILTER

€ 73.50

11

1651633E00
ref: 11

GASKET,OIL FILTER HOLDER

€ 7.50

12

0910306194
ref: 12

BOLT(6X40)

€ 2.00

13

0910306195
ref: 13

BOLT(6X65)

€ 3.50

14

0940725401
ref: 14

CLAMP(L:235)

€ 4.00

15

0940406433
ref: 15
EXCEPT E18, E39

CLAMP(L:80)

€ 3.00
