REAR WHEEL (MODEL W)

GSXR750 1999 (X)

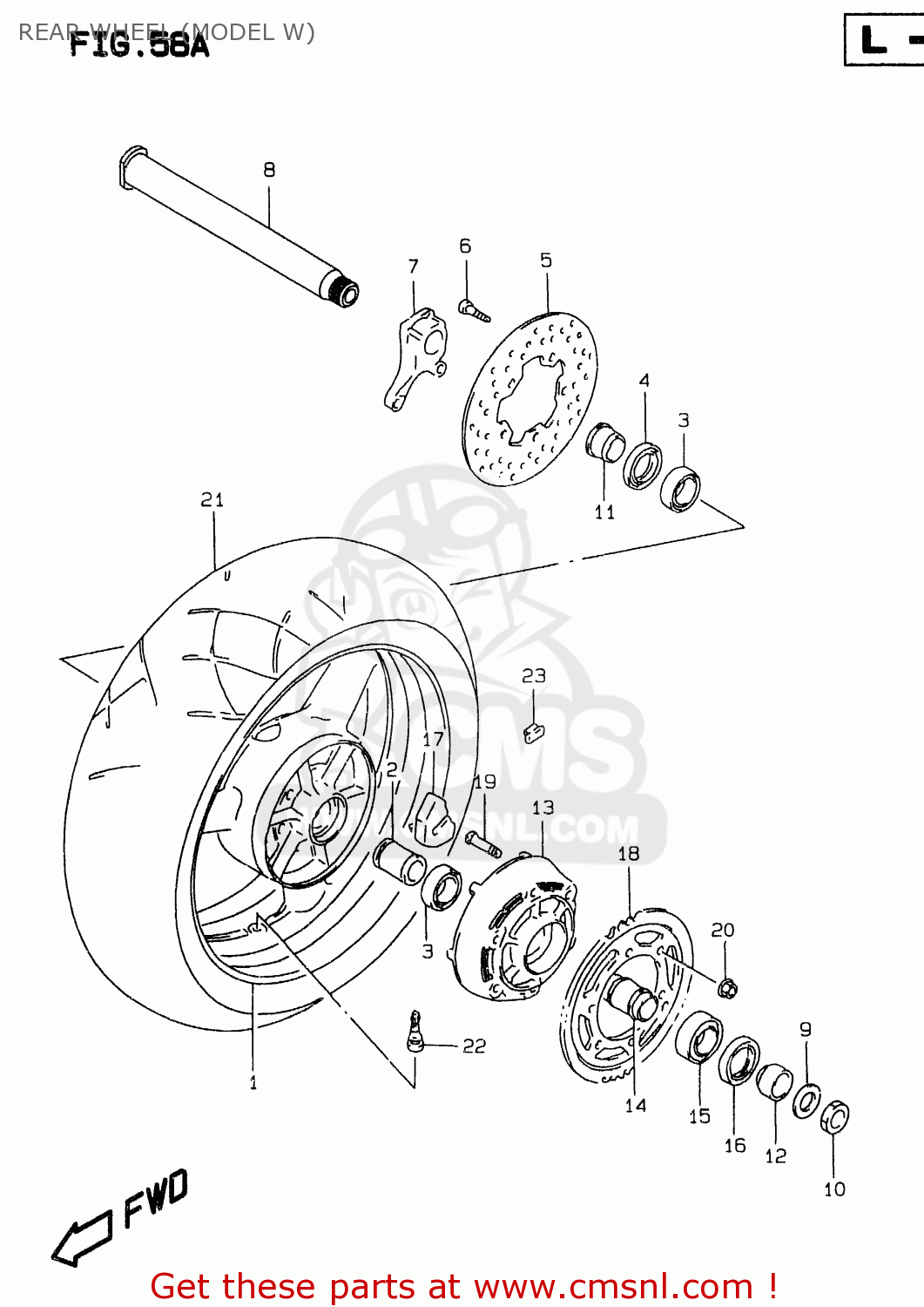

Rear wheel (model w) diagram GSXR750 1999 (X)

REAR WHEEL (MODEL W) GSXR750 1999 (X)

REAR WHEEL (MODEL W) GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

6411133E0012R
ref: 1-1
FOR 3CG, G7U

WHEEL,REAR (17XMT6.00)(S

€ 1,010.50

1-2

6411133E0028W
ref: 1-2
FOR L99

WHEEL,REAR (17XMT6.00)(W

€ 617.00

2

6473033E00
ref: 2

SPACER COMP,REAR HUB B

€ 62.50

3

0926232008
ref: 3

BEARING(32X58X13)

€ 31.50

4

0928538001
ref: 4

SEAL,OIL(38X58X7)

€ 7.50

5

6921133E00
ref: 5

DISC,RR BRAKE

€ 160.00

6

0910608125
ref: 6

BOLT 8X33

€ 6.00

7

6972133E00
ref: 7

BRACKET,RR CALIPER

€ 82.00

8

6471133E20
ref: 8

AXLE,RR

€ 85.50

9

0916025070
ref: 9

WASHER(25.2X42X3.2)

€ 4.50

10

0915925001
ref: 10

NUT

€ 29.00

11

6474133E00
ref: 11

SPACER,RR AXLE,R

€ 18.50

12

6475133E00
ref: 12

SPACER,RR AXLE,L

€ 30.00

13

6461033E00
ref: 13

DRUM,REAR SPROCKET MOUNT

€ 189.00

14

6473333E00
ref: 14

RETAINER,RR SPROCKET DRUM

€ 37.50

15

0926232007
ref: 15

BEARING

€ 49.00

16

0928539001
ref: 16

SEAL,OIL(39X65X7)

€ 9.00

17

6465117E00
ref: 17

ABSORBER,RR HUB SHOCK

€ 12.50

18

6451133E10
ref: 18

SPROCKET,RR(NT:44-525)

€ 93.50

19

0911910059
ref: 19

BOLT

€ 3.50

20

0831931107
ref: 20

NUT

€ 3.00

21-1

6511033E30
ref: 21-1
PURCHASE LOCALLY

TIRE, REAR 190/50 ZR17 (73W) (METZELER)

€ 211.00

21-2

6511033E50
ref: 21-2
E24

TIRE,REAR 190/50 ZR17

€ 0.00

22

4313024A11
ref: 22

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

23-1

5541100A00
ref: 23-1

BALANCER,WHEEL (10G)

€ 6.50

23-2

5541200A01
ref: 23-2

BALANCER,WHEEL (20G)

€ 7.00
