HEADLAMP (MODEL W E2, E24)

GSXR750 1999 (X)

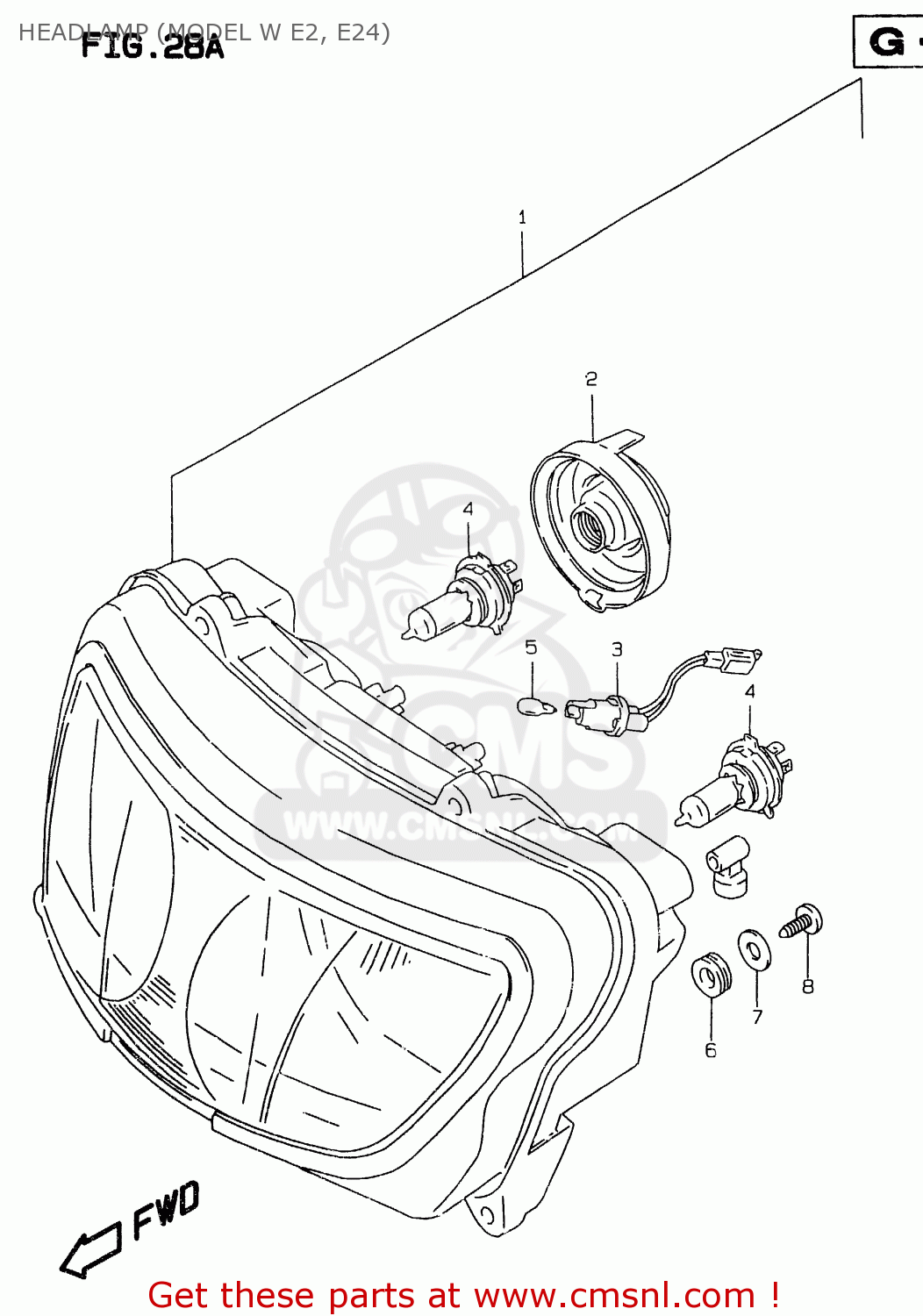

Headlamp (model w e2, e24) diagram GSXR750 1999 (X)

HEADLAMP (MODEL W E2, E24) GSXR750 1999 (X)

HEADLAMP (MODEL W E2, E24) GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

3510033E30999
ref: 1-1

HEADLAMP (E2)

€ 348.00

1-2

3510033E10999
ref: 1-2
E24

HEADLAMP ASSY

€ 0.00

2

3512574F00
ref: 2

COVER,SOCKET

€ 11.50

3

3611833E10
ref: 3
FOR 09471-12081

SOCKET ASSY

€ 18.00

4

0947112185
ref: 4

BULB(12V60/55W,H4)

€ 8.00

5

0947112081
ref: 5

BULB(12V5W)

€ 1.50

6

3513733E00
ref: 6

CUSHION,HEADLAMP

€ 3.00

7

0916005045
ref: 7
5.5X18X1

WASHER(5.5X18X1)

€ 2.00

8

0351105163
ref: 8

SCREW,SIDE HOL

€ 2.50
