RADIATOR HOSE (MODEL W)
GSXR750 1999 (X)

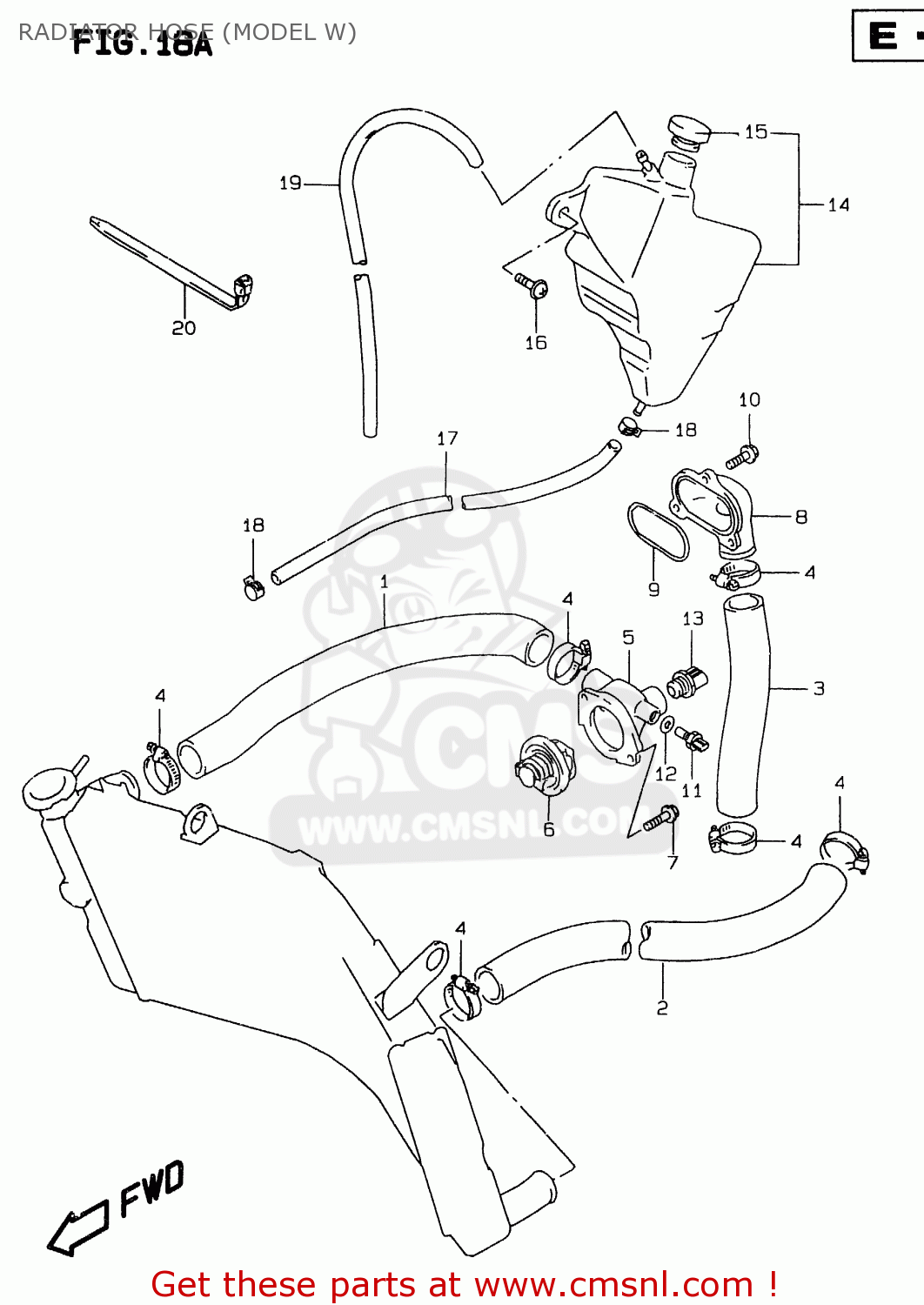

Radiator hose (model w) diagram GSXR750 1999 (X)
RADIATOR HOSE (MODEL W) GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1
1785133E00
ref: 1
HOSE,RADIATOR INLET
€ 30.00
2
1785233E00
ref: 2
HOSE,RADIATOR OUTLET
€ 32.50
3
1785333E00
ref: 3
HOSE,CYLINDER INLET
€ 18.00
4
0940238511
ref: 4
CLAMP
€ 10.50
5
1766233E10
ref: 5
CAP,THERMOSTAT
€ 36.50
6
1767032C10
ref: 6
THERMOSTAT,WATER
€ 41.00
7
0712006203
ref: 7
BOLT
€ 3.50
8
1786133E00
ref: 8
CONNECTOR,CYLINDER WATER,INTAKE
€ 19.00
9
1786333E00
ref: 9
O RING,CYL WATER CONNECTOR
€ 4.50
10
0155006203
ref: 10
BOLT
€ 2.50
11
1365051G10
ref: 11
SENSOR,WATER TEMP
€ 101.50
12
0916812016
ref: 12
GASKET(12.2X21X0.8) (NAS)
€ 2.50
13
1768033E00
ref: 13
SWITCH,RADIATOR FAN
€ 49.50
14
1791033E00
ref: 14
TANK ASSY,RESERVOIR
€ 112.50
15
1793212C00
ref: 15
CAP,RESERVOIR TANK
€ 3.50
16
0913606022
ref: 16
SCREW(6X20)
€ 2.50
17
1798112C00
ref: 17
HOSE,RESERVOIR TANK INLET
€ 27.00
18
0940108411
ref: 18
CLIP
€ 3.00
19
1798238810
ref: 19
HOSE,RESERVOIR TANK OUTLET
€ 16.00
20
0940718403
ref: 20
CLAMP L:165
€ 2.50
