FRAME

GSXR750 1999 (X)

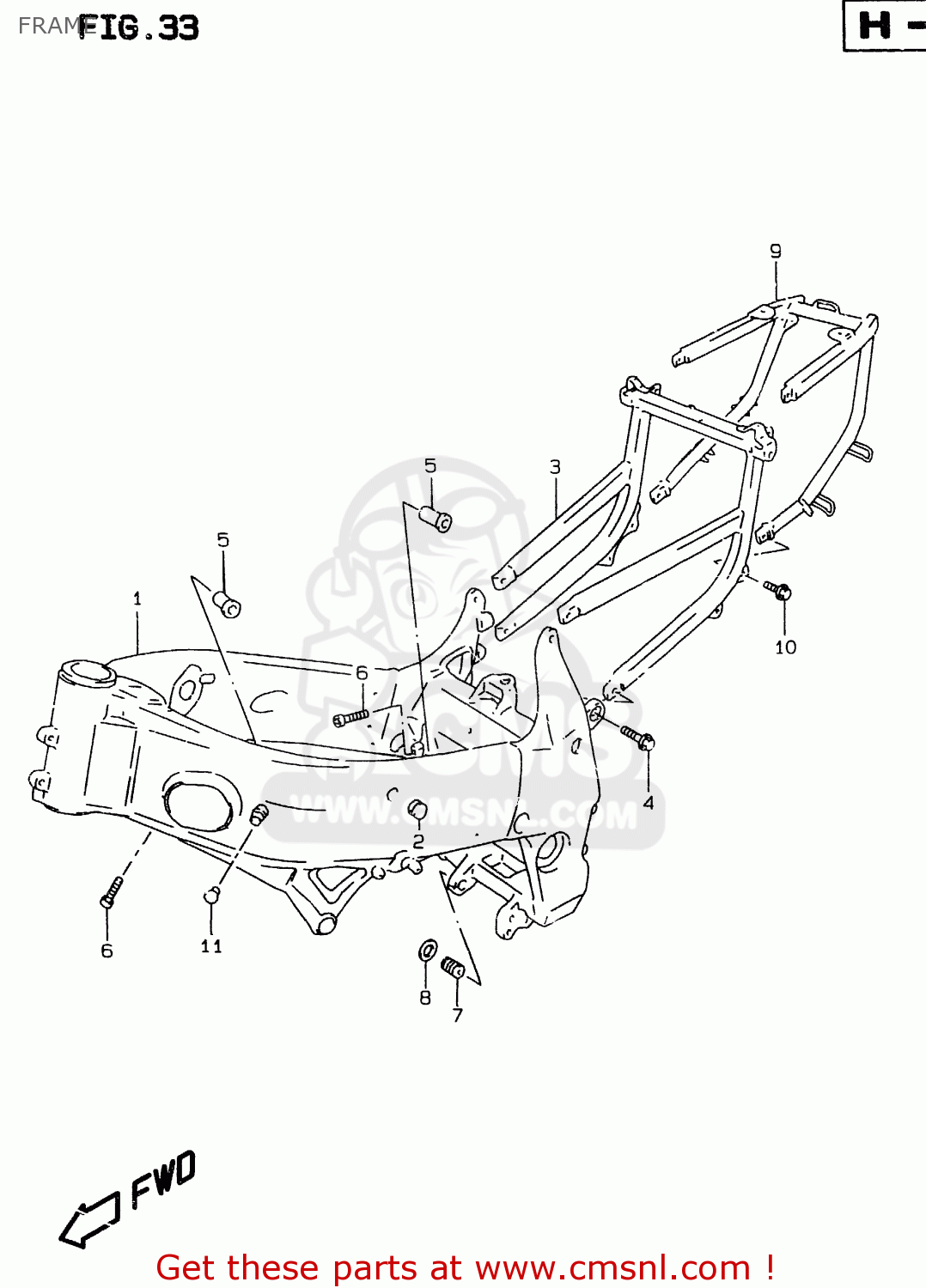

Frame diagram GSXR750 1999 (X)

FRAME GSXR750 1999 (X)

FRAME GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

4110033E00
ref: 1-1
MODEL T

FRAME COMP

€ 2,189.50

1-2

4110033E10
ref: 1-2
MODEL V

FRAME COMP

€ 1,556.00

1-3

4110033E20
ref: 1-3
MODEL W

FRAME

€ 1,556.00

2

4358533E00
ref: 2

CAP,TANK RAIL

€ 9.00

3-1

4120033E00
ref: 3-1
MODEL T/V

RAIL COMP,SEAT

€ 684.00

3-2

4120033E20
ref: 3-2
MODEL W

RAIL,SEAT

€ 684.00

4-1

5919933E00
ref: 4-1
MODEL T/V

BOLT,SEAT RAIL

€ 6.00

4-2

0910310296
ref: 4-2
MODEL W

BOLT(10X30)

€ 6.00

5

4191133E00
ref: 5

SPACER,ENGINE MOUNTING

€ 16.50

6

0713008303
ref: 6

BOLT

€ 3.00

7-1

4192133E00
ref: 7-1
MODEL T

BOLT,CRANKCASE ADJUST

€ 24.00

7-2

4192133E10
ref: 7-2
MODEL V

BOLT,CRANKCASE ADJUST

€ 46.00

7-3

4192133E11
ref: 7-3
MODEL W

BOLT,CRANKCASE ADJUST

€ 46.00

8-1

4192233E00
ref: 8-1
MODEL T

NUT,CRANK CASE ADJUST BOLT

€ 18.50

8-2

4192233E10
ref: 8-2
MODEL V/W

NUT,CRANKCASE ADJUST

€ 14.50

9-1

4398033E00
ref: 9-1
MODEL T/V

GRIP COMP,REAR

€ 372.00

9-2

4398033E20
ref: 9-2
MODEL W

GRIP,RR

€ 372.00

10

0155008203
ref: 10

BOLT

€ 3.00

11

0925006001
ref: 11
MODEL V/W

CAP

€ 2.00
