REAR WHEEL (MODEL T/V)

GSXR750 1999 (X)

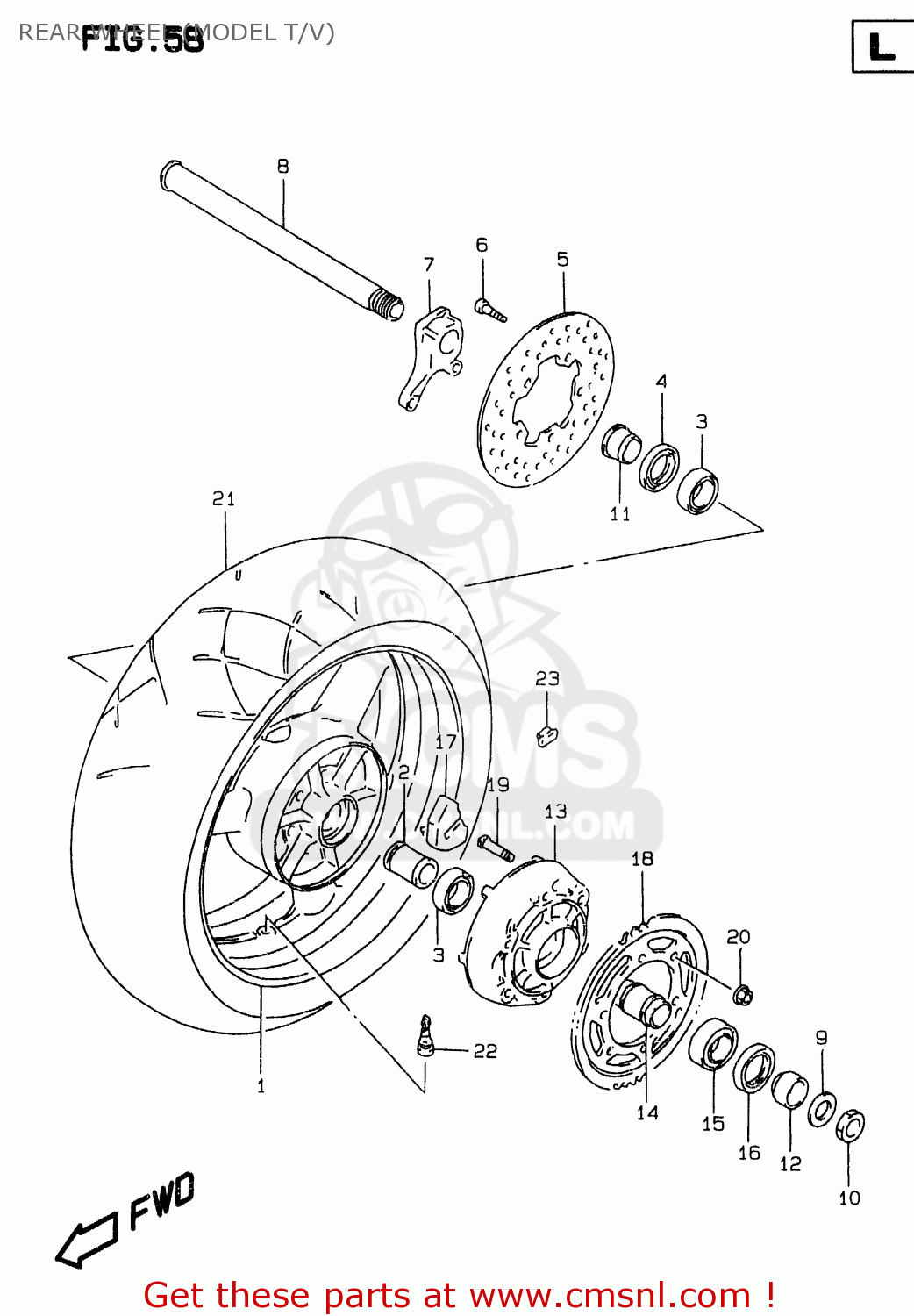

Rear wheel (model t/v) diagram GSXR750 1999 (X)

REAR WHEEL (MODEL T/V) GSXR750 1999 (X)

REAR WHEEL (MODEL T/V) GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

6411133E0012R
ref: 1-1
MODEL T FOR C3B, F1S

WHEEL,REAR (17XMT6.00)(S

€ 1,010.50

1-2

6411133E0028W
ref: 1-2
MODEL V FOR L99

WHEEL,REAR (17XMT6.00)(W

€ 617.00

2

6473033E00
ref: 2

SPACER COMP,REAR HUB B

€ 62.50

3

0926232008
ref: 3

BEARING(32X58X13)

€ 31.50

4

0928538001
ref: 4

SEAL,OIL(38X58X7)

€ 7.50

5

6921133E00
ref: 5

DISC,RR BRAKE

€ 160.00

6

0910608125
ref: 6

BOLT 8X33

€ 6.00

7

6972133E00
ref: 7

BRACKET,RR CALIPER

€ 82.00

8-1

6471133E00
ref: 8-1
MODEL T

AXLE,REAR

€ 129.00

8-2

6471133E20
ref: 8-2
MODEL V

AXLE,RR

€ 85.50

9

0916025070
ref: 9

WASHER(25.2X42X3.2)

€ 4.50

10

0915925001
ref: 10

NUT

€ 29.00

11

6474133E00
ref: 11

SPACER,RR AXLE,R

€ 18.50

12

6475133E00
ref: 12

SPACER,RR AXLE,L

€ 30.00

13-1

6461133E00
ref: 13-1
MODEL T

DRUM,REAR SPROCKET MOUNT

€ 189.00

13-2

6461033E00
ref: 13-2
MODEL V

DRUM,REAR SPROCKET MOUNT

€ 189.00

14

6473333E00
ref: 14

RETAINER,RR SPROCKET DRUM

€ 37.50

15

0926232007
ref: 15

BEARING

€ 49.00

16

0928539001
ref: 16

SEAL,OIL(39X65X7)

€ 9.00

17

6465117E00
ref: 17

ABSORBER,RR HUB SHOCK

€ 12.50

18

6451133E00
ref: 18

SPROCKET,RR(NT:43)

€ 93.00

19

0911910059
ref: 19

BOLT

€ 3.50

20

0831931107
ref: 20

NUT

€ 3.00

21-1

6511033E00
ref: 21-1
E18, E22, E25, E39 P

TIRE, REAR 190/50 ZR17 (73W) MEZ1 (METZE

€ 0.00

21-2

6511033E20
ref: 21-2
E2, E4, E34 PURCHASE

TIRE, REAR 190/50 ZR17 (73W) TX25 (MICHE

€ 0.00

21-3

6511033E10
ref: 21-3
E24, P37

TIRE,REAR 190/50 ZR17

€ 0.00

22

4313024A11
ref: 22

VALVE ASSEMBLY,WHEEL,TR412

€ 7.00

23-1

5541100A00
ref: 23-1

BALANCER,WHEEL (10G)

€ 6.50

23-2

5541200A01
ref: 23-2

BALANCER,WHEEL (20G)

€ 7.00
