FRONT WHEEL (MODEL W)

GSXR750 1999 (X)

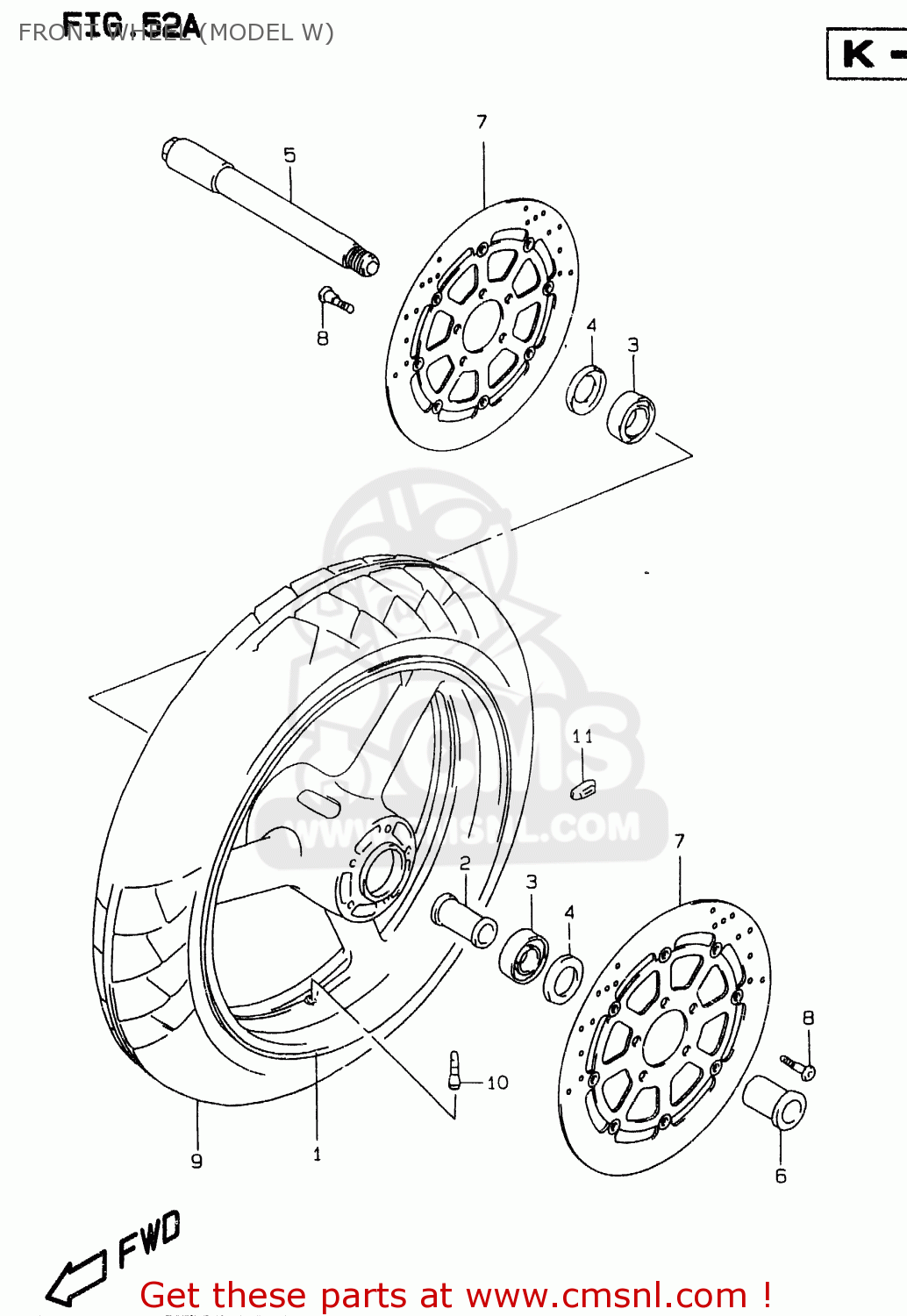

Front wheel (model w) diagram GSXR750 1999 (X)

FRONT WHEEL (MODEL W) GSXR750 1999 (X)
FRONT WHEEL (MODEL W) GSXR750 1999 (X)
FRONT WHEEL (MODEL W) GSXR750 1999 (X)
prices are in EUR
ref
part #
description
quantity
1-1
5411133E0012R
ref: 1-1
FOR 3CG, G7U
WHEEL,FRONT (17XMT3.50)(
€ 497.00
1-2
5411133E0028W
ref: 1-2
FOR L99
WHEEL,FRONT (17XMT3.50)(
€ 418.00
2
5473033E00
ref: 2
SPACER,FRONT HUB BEARING
€ 30.00
3
0926225061
ref: 3
BEARING(25X52X15)
0926225061
€ 27.50
4
0928532004
ref: 4
SEAL,OIL(32X52X7)
0928532004
€ 8.00
5
5471133E00
ref: 5
AXLE,FR
5471133E00
€ 151.00
6
5471233E00
ref: 6
NUT,FR AXLE
5471233E00
€ 66.50
7
5921033E30
ref: 7
DISC,FR BRAKE
5921033E30
€ 363.00
8
0910608125
ref: 8
BOLT 8X33
0910608125
€ 6.00
9-1
5511033E30
ref: 9-1
PURCHASE LOCALLY
TIRE, FRONT 120/70 ZR17 (58W) (METZELER)
€ 211.00
9-2
5511033E50
ref: 9-2
E24
TIRE,FRONT 120/70 ZR17
€ 0.00
10
4313024A11
ref: 10
VALVE ASSEMBLY,WHEEL,TR412
€ 7.00
11-1
5541100A00
ref: 11-1
BALANCER,WHEEL (10G)
€ 6.50
11-2
5541200A01
ref: 11-2
BALANCER,WHEEL (20G)
€ 7.00
