MUFFLER

GSXR750 1999 (X)

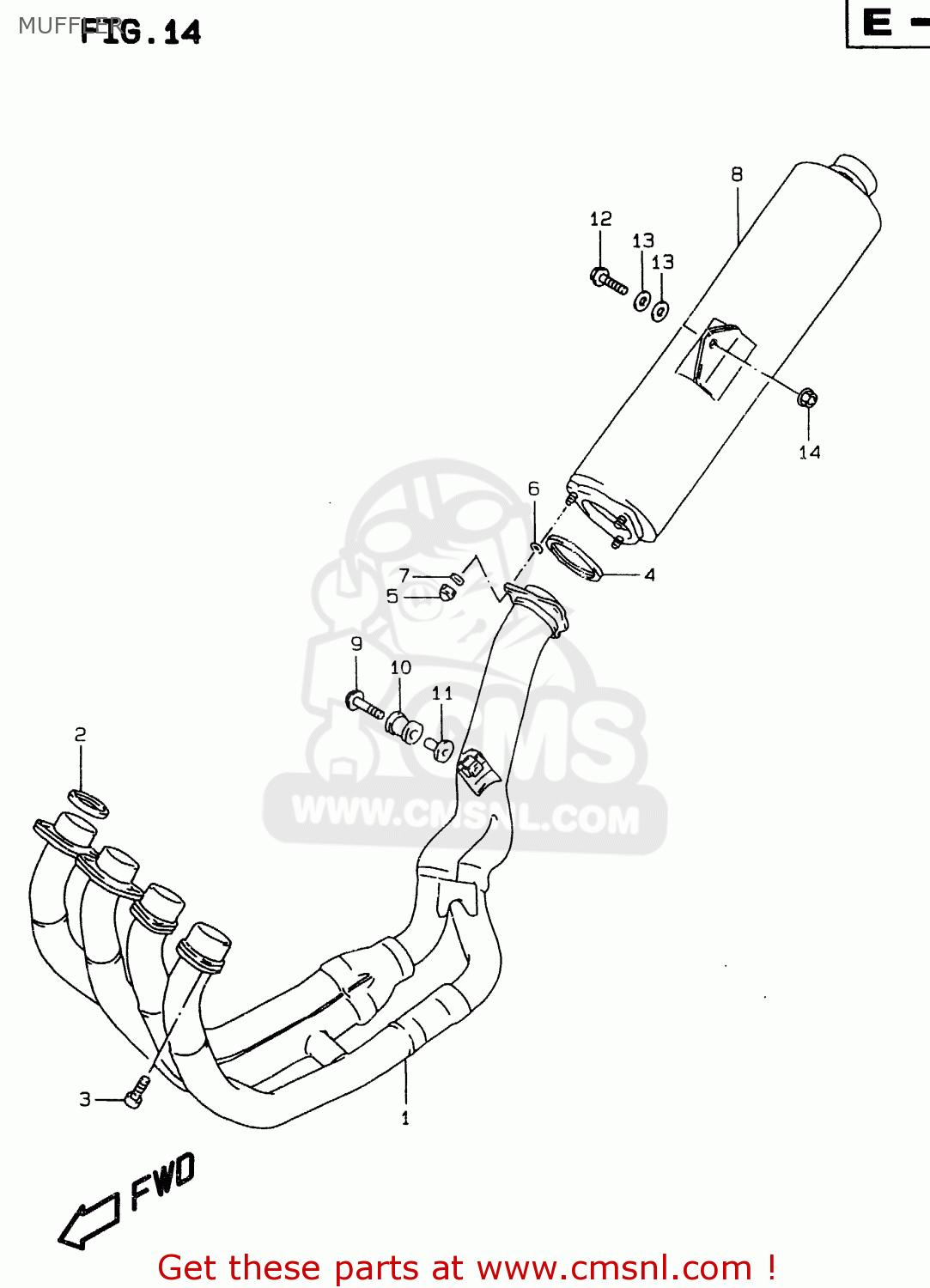

Muffler diagram GSXR750 1999 (X)

MUFFLER GSXR750 1999 (X)

MUFFLER GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

1410033E01
ref: 1-1
MODEL T/V

EXHAUST COMP

€ 919.00

1-2

1410034E00
ref: 1-2
MODEL W

EXHAUST COMP

€ 778.00

2

1418146E00
ref: 2

GASKET,EXHAUST PIPE

€ 6.50

3

0713008253
ref: 3

BOLT

€ 3.50

4

1418133E00
ref: 4

GASKET,MUFFLER JOINT

€ 6.50

5

0915908101
ref: 5

NUT

€ 7.50

6-1

0916008059
ref: 6-1
MODEL T/V

WASHER(8.5X18X1.6)

€ 2.00

6-2

0916008114
ref: 6-2
MODEL W

WASHER(8.5X18X1.6)

€ 2.50

7

0928008012
ref: 7

O RING(D:1.9,ID:7.8)

€ 4.00

8

1431033E00H01
ref: 8

BODY,MUFFLER

€ 673.50

9

0911808152
ref: 9

BOLT 8X45

€ 5.00

10

0932012048
ref: 10

CUSHION

€ 5.00

11

0918008152
ref: 11

SPACER(8.6X12X24.2)

€ 6.00

12

0155008357
ref: 12

BOLT

€ 3.50

13-1

0916008021
ref: 13-1
MODEL T/V

WASHER (8.2X24X1.6)

€ 2.00

13-2

0916008131
ref: 13-2
MODEL W

WASHER (8.5X24X1.6)

€ 2.00

14

0836125088
ref: 14

NUT

€ 2.50
