TAIL LAMP

GSXR750 1999 (X)

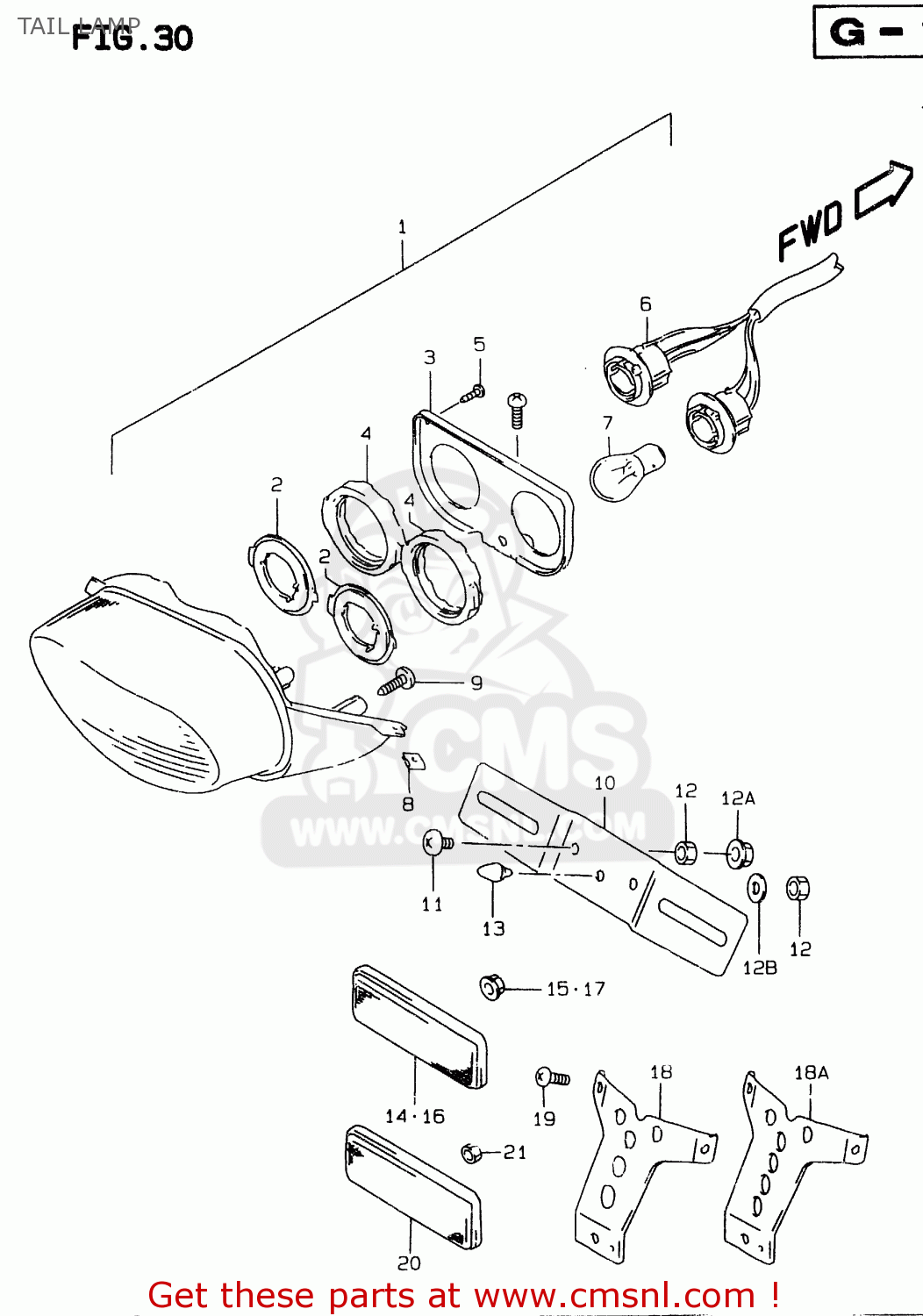

Tail lamp diagram GSXR750 1999 (X)

TAIL LAMP GSXR750 1999 (X)

TAIL LAMP GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1

3571033E00
ref: 1

LAMP ASSY,RR COMBINATION

€ 195.00

2

3571648B21
ref: 2

PLATE NO.1

€ 25.00

3

3573633E00
ref: 3

PLATE NO.2

€ 9.50

4

3576548B21
ref: 4

CUSHION

€ 10.50

5

0321104123
ref: 5

SCREW

€ 1.50

6

3571833E00
ref: 6

SOCKET & CORD

€ 61.00

7

0947112083
ref: 7

BULB(12V21/5W)

€ 6.00

8

0914805020
ref: 8

NUT

€ 2.00

9

0354115163
ref: 9

SCREW

€ 2.00

10

3592744110
ref: 10

PLATE,RR LICENSE

€ 22.50

11

0214206123
ref: 11

SCREW 6X12

€ 2.00

12

0831000063
ref: 12
MODEL T/W

NUT 6MM

€ 2.00

12A

0831610063
ref: 12A
MODEL V

NUT

€ 2.50

12B

0916006077
ref: 12B
MODEL W

WASHER(6.5X20X1.2)

€ 2.00

13

0932106023
ref: 13

CUSHION

€ 2.00

14

3597024D60
ref: 14
E2

REFLECTOR ASSY,RR

€ 19.50

15

0831000053
ref: 15
E2

NUT

€ 2.50

16

3597024D60
ref: 16
E18, E22, E24, E39

REFLECTOR ASSY,RR

€ 19.50

17

0831620053
ref: 17
E18, E22, E24, E39

NUT

€ 2.00

18

3597433E00
ref: 18
MODEL T/V

BRACKET,RR REFLECTOR

€ 12.00

18A

3597448E00
ref: 18A
MODEL W

BRACKET,RR REFLECTOR

€ 8.00

19

0912506092
ref: 19

SCREW(6X12)

€ 3.00

20

3595043431
ref: 20
E39

REFLEX REFLECTOR,FR SIDE

€ 12.00

21

0831000053
ref: 21
E39

NUT

€ 2.50
