TRANSMISSION
GSXR750 1999 (X)

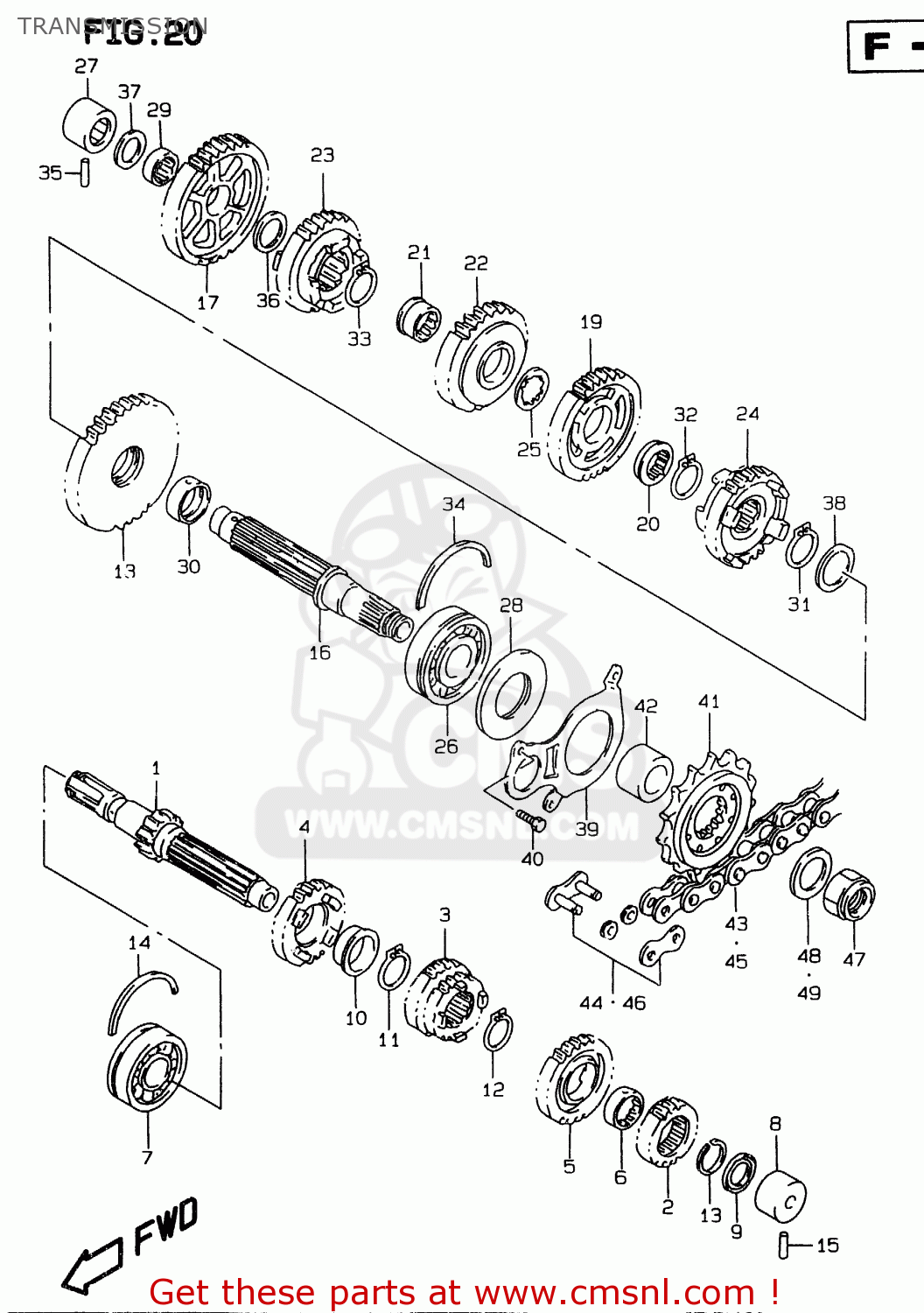

Transmission diagram GSXR750 1999 (X)
TRANSMISSION GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1-1
2412033E00
ref: 1-1
MODEL T/V
SHAFT,COUNTER
€ 193.00
1-2
2412033E10
ref: 1-2
MODEL W
SHAFT,COUNTER (NT:16)
€ 191.50
2-1
2422117E00
ref: 2-1
MODEL T/V
GEAR,SECOND DRIVE
€ 70.00
2-2
2422133E50
ref: 2-2
MODEL W
GEAR,2ND DRIVE(NT:20)
€ 65.00
3-1
2423133E00
ref: 3-1
MODEL T/V
GEAR,3RD & 4TH DRIVE
€ 132.00
3-2
2423133E50
ref: 3-2
MODEL W
GEAR,3RD & 4TH DRIVE(NT:23/22)
€ 174.50
4-1
2425133E00
ref: 4-1
MODEL T/V
GEAR,5TH DRIVE
€ 207.00
4-2
2425133E50
ref: 4-2
MODEL W
GEAR,5TH DRIVE(NT:22)
€ 98.50
5-1
2426133E00
ref: 5-1
MODEL T/V
GEAR,6TH DRIVE
€ 361.50
5-2
2426133E50
ref: 5-2
MODEL W
GEAR,6TH DRIVE(NT:25)
€ 127.50
6
2426217E10
ref: 6
BUSH,6TH DRIVE GEAR
€ 22.00
7
0926225105
ref: 7
25X62X17
BEARING(25X62X17)
€ 59.50
8
0926320082
ref: 8
20X34X17.5
BEARING
€ 50.50
9
0928520006
ref: 9
SEAL,OIL(20X31.2X2.7)
€ 7.00
10
0930128001
ref: 10
28X32X2
BUSH(28X32X2)
€ 19.50
11
0938027001
ref: 11
CIRCLIP
€ 2.00
12
0938027001
ref: 12
CIRCLIP
€ 2.00
13
0938027004
ref: 13
CIRCLIP
€ 3.50
14
0939062012
ref: 14
C RING
€ 5.00
15
0422107209
ref: 15
PIN
€ 1.50
16
2413133E00
ref: 16
SHAFT,DRIVE
€ 158.50
17-1
2431133E00
ref: 17-1
MODEL T/V
GEAR,1ST DRIVEN
€ 95.00
17-2
2431133E50
ref: 17-2
MODEL W
GEAR,1ST DRIVEN(NT:42)
€ 148.00
18-1
2432133E00
ref: 18-1
MODEL T/V
GEAR,2ND DRIVEN
€ 98.50
18-2
2432133E50
ref: 18-2
MODEL W
GEAR,2ND DRIVEN(NT:39)
€ 226.50
19-1
2433133E01
ref: 19-1
MODEL T/V, <-24331-3
GEAR,3RD DRIVEN(NT:33)
€ 106.00
19-2
2433133E50
ref: 19-2
MODEL W
GEAR,3RD DRIVEN(NT:36)
€ 212.50
20
2433217E10
ref: 20
BUSH
€ 37.00
21
2433217E10
ref: 21
BUSH
€ 37.00
22-1
2434133E01
ref: 22-1
MODEL T/V, <-24341-3
GEAR,4TH DRIVEN(NT:30)
€ 87.00
22-2
2434133E50
ref: 22-2
MODEL W
GEAR,4TH DRIVEN(NT:30)
€ 205.00
23-1
2435133E01
ref: 23-1
MODEL T/V, <-24351-3
GEAR,5TH DRIVEN(NT:29)
€ 95.00
23-2
2435133E50
ref: 23-2
MODEL W
GEAR,FIFTH DRIVEN (NT:27)
€ 114.00
24-1
2436133E00
ref: 24-1
MODEL T/V
GEAR,6TH DRIVEN(NT:28)
€ 105.00
24-2
2436133E50
ref: 24-2
MODEL W
GEAR,6TH DRIVEN(NT:28)
€ 109.50
25
0916727002
ref: 25
WASHER,LOCK
€ 5.00
26
0926228025
ref: 26
28X70X18
BEARING(28X70X18)
€ 97.50
27
0926320040
ref: 27
20X34X20
BEARING(20X34X20)
€ 42.50
28
0928336008
ref: 28
36X70X6
SEAL,OIL(34.8X70X6)
€ 16.50
29
0930022008
ref: 29
22X26X9
BUSH(22X26X9)
€ 10.50
30
0930028003
ref: 30
28X32X9.5
BUSH(28X32X9.5)
€ 19.50
31
0938027001
ref: 31
CIRCLIP
€ 2.00
32
0938027001
ref: 32
CIRCLIP
€ 2.00
33
0938027001
ref: 33
CIRCLIP
€ 2.00
34
0939070001
ref: 34
C RING
€ 5.50
35
0422107209
ref: 35
PIN
€ 1.50
36-1
0821120341
ref: 36-1
MODEL T
WASHER
€ 2.00
36-2
0918120251
ref: 36-2
MODEL V/W
SHIM(20X34X1)
€ 3.00
37-1
0821122341
ref: 37-1
MODEL T
WASHER
€ 3.00
37-2
0918122223
ref: 37-2
MODEL V/W
SHIM(22X34X1)
€ 3.00
38-1
0821128381
ref: 38-1
MODEL T
WASHER, THRUST
€ 3.50
38-2
0918128195
ref: 38-2
MODEL V/W
SHIM(28X38X1)
€ 3.50
39-1
2475133E00
ref: 39-1
MODEL T/V
RETAINER,DRIVE SHAFT OIL SEAL
€ 8.50
39-2
2475133E10
ref: 39-2
MODEL W
RETAINER,CL PUSH ROD OIL SEAL
€ 3.50
40
0150006123
ref: 40
BOLT
€ 2.00
41-1
2751021A00
ref: 41-1
MODEL T
SPROCKET,ENGINE
€ 62.50
41-2
2751021A10
ref: 41-2
MODEL V
SPROCKET,ENGINE(16T)
€ 62.50
41-3
2751020A10
ref: 41-3
MODEL W
SPROCKET,ENGINE(16T)
€ 38.00
42
2753133E00
ref: 42
SPACER,ENG SPROCKET
€ 19.00
43
2760021E10108
ref: 43
MODEL T/V
CHAIN ASSEMBLY RK50MFOZ1.1
€ 199.00
44
2762021E10
ref: 44
MODEL T/V
JOINT SET,DRIVE CHAIN
€ 12.00
45
2760033E00108
ref: 45
MODEL W
CHAIN ASSEMBLY RK525R0Z2.1
€ 195.00
46
2762033E00
ref: 46
MODEL W
JOINT SET,DRIVE CHAIN
€ 15.00
47
0915920004
ref: 47
NUT
€ 12.00
48-1
0821125402
ref: 48-1
MODEL T
WASHER,THRUST
€ 3.00
48-2
0918125268
ref: 48-2
MODEL V
SHIM(25X40X1.5)
€ 3.00
48-3
0916025009
ref: 48-3
MODEL W
WASHER(25X41X3)
€ 5.00
