CAM SHAFT - VALVE
GSXR750 1999 (X)

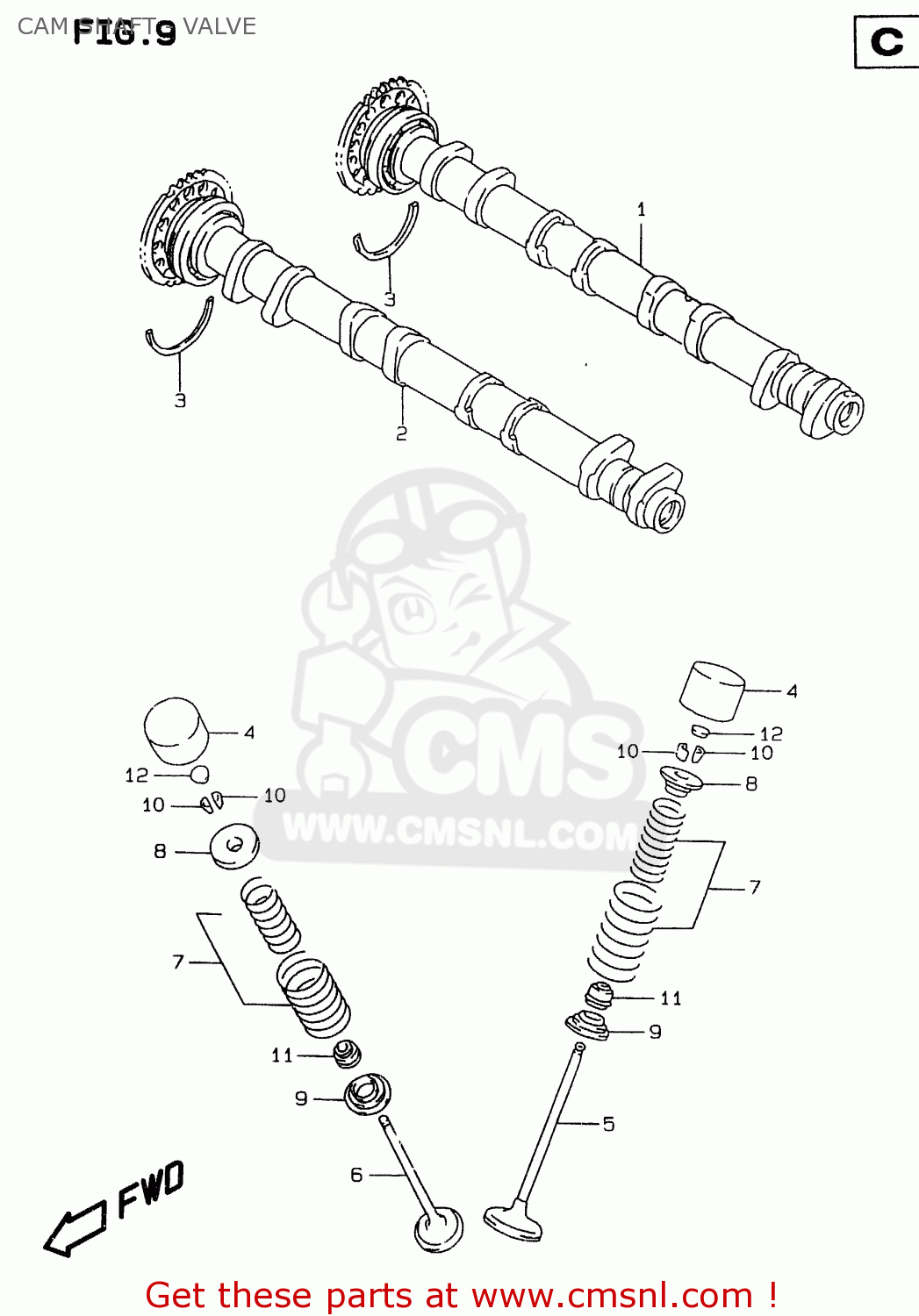

Cam shaft - valve diagram GSXR750 1999 (X)
CAM SHAFT - VALVE GSXR750 1999 (X)
×
prices are in EUR
ref
part #
description
quantity
1-1
1271033E00
ref: 1-1
MODEL T/V
CAMSHAFT,INTAKE
€ 330.00
1-2
1271033E10
ref: 1-2
MODEL T/V E4, E18
CAMSHAFT COMP,INTAKE
€ 0.00
1-3
1271033E40
ref: 1-3
MODEL W
CAMSHAFT,INTAKE
€ 361.00
2-1
1272033E00
ref: 2-1
MODEL T/V
CAMSHAFT COMP,EXHAUST
€ 170.50
2-2
1272033E40
ref: 2-2
MODEL W
CAMSHAFT COMP,EXHAUST
€ 265.50
3
0939047002
ref: 3
C RING
€ 2.50
4
1289117E00
ref: 4
TAPPET
€ 55.00
5
1291133E00
ref: 5
VALVE,INTAKE
€ 81.00
6
1291217E01
ref: 6
VALVE,EXHAUST
€ 77.50
7
1292033E00
ref: 7
SPRING SET,VALVE
€ 14.00
8
1293133E00
ref: 8
RETAINER,VALVE SPRING
€ 15.50
9
1293339E00
ref: 9
SEAT,VALVE SPRING
€ 5.50
10
1293217E50
ref: 10
COTTER VALVE
€ 2.50
11
0928904002
ref: 11
SEAL,OIL(4.5X10X8)
€ 7.50
12-1
1289205C00120
ref: 12-1
SHIM,TAPPET
€ 7.00
12-2
1289205C00125
ref: 12-2
SHIM,TAPPET
€ 7.00
12-3
1289205C00130
ref: 12-3
SHIM,TAPPET
€ 7.00
12-4
1289205C00135
ref: 12-4
SHIM,TAPPET
€ 7.50
12-5
1289205C00140
ref: 12-5
SHIM,TAPPET
€ 7.50
12-6
1289205C00145
ref: 12-6
SHIM,TAPPET
€ 7.50
12-7
1289205C00150
ref: 12-7
SHIM,TAPPET
€ 7.50
12-8
1289205C00155
ref: 12-8
SHIM,TAPPET
€ 7.50
12-9
1289205C00160
ref: 12-9
SHIM,TAPPET
€ 7.50
12-10
1289205C00165
ref: 12-10
SHIM,TAPPET
€ 7.50
12-11
1289205C00170
ref: 12-11
SHIM,TAPPET
€ 7.50
12-12
1289205C00175
ref: 12-12
SHIM,TAPPET
€ 7.00
12-13
1289205C00180
ref: 12-13
SHIM,TAPPET
€ 7.50
12-14
1289205C00185
ref: 12-14
SHIM,TAPPET
€ 7.00
12-15
1289205C00190
ref: 12-15
SHIM,TAPPET
€ 7.00
12-16
1289205C00195
ref: 12-16
SHIM,TAPPET
€ 7.00
12-17
1289205C00200
ref: 12-17
SHIM,TAPPET
€ 7.00
12-18
1289205C00205
ref: 12-18
SHIM,TAPPET
€ 7.00
12-19
1289205C00210
ref: 12-19
SHIM,TAPPET
€ 7.00
12-20
1289205C00215
ref: 12-20
SHIM,TAPPET
€ 7.00
12-21
1289205C00220
ref: 12-21
SHIM,TAPPET
€ 7.00
13
1280005820
ref: 13
OPT NOT SHOWN
SHIM SET,TAPPET
€ 846.50
14
9900069491
ref: 14
OPT NOT SHOWN
CASE,TAPPET SHIM
€ 89.00
