COWLING BODY (MODEL V)

GSXR750 1999 (X)

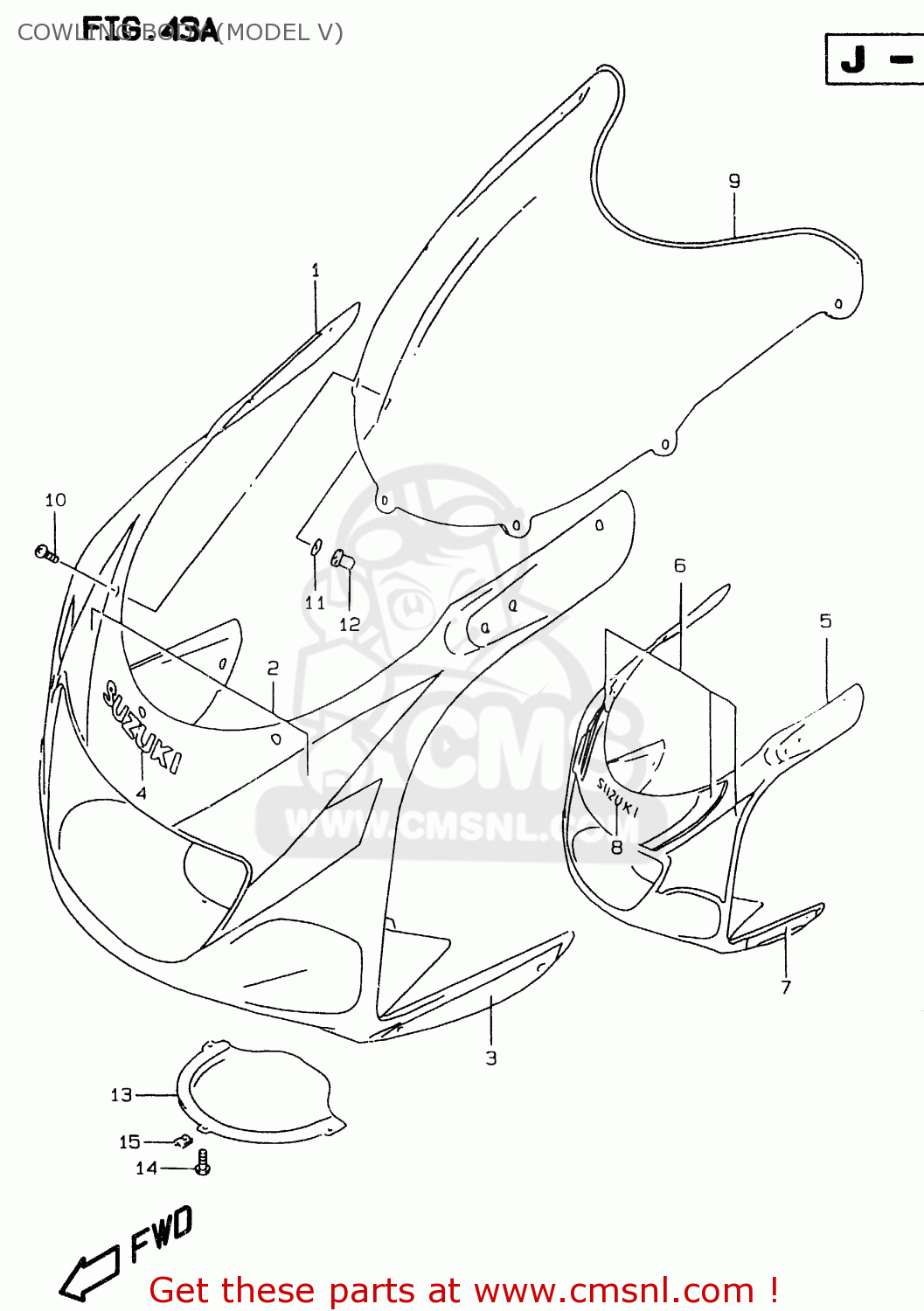

Cowling body (model v) diagram GSXR750 1999 (X)

COWLING BODY (MODEL V) GSXR750 1999 (X)

COWLING BODY (MODEL V) GSXR750 1999 (X)

prices are in EUR

ref

part #

description

quantity

1-1

9440033E40Y0W
ref: 1-1
FOR G7U

COWLING ASSY,BODY

€ 424.00

1-2

9440033E40Y2D
ref: 1-2
FOR G7V

COWLING ASSY,BODY(SILVER)

€ 424.00

2-1

6827033E30G8T
ref: 2-1
FOR Y0W

TAPE SET,COWL BODY FR

€ 75.50

2-2

6827033E30G8U
ref: 2-2
FOR Y2D

TAPE SET,COWL BODY FR

€ 75.50

3-1

6828033E3033J
ref: 3-1
FOR Y0W

TAPE SET,COWLING BODY SIDE

€ 22.00

3-2

6828033E3035W
ref: 3-2
FOR Y2D

TAPE SET,COWL BODY SIDE

€ 16.00

4

6827134A00Y2U
ref: 4

EMBLEM,SUZUKI

€ 7.00

5

9440033E300JW
ref: 5
FOR L99

COWLING ASSY,BODY

€ 424.00

6

6827033E40G9C
ref: 6

TAPE SET,COWL BODY FR

€ 67.00

7

6828033E201LF
ref: 7

TAPE SET,COWLING BODY SIDE

€ 22.00

8

6818505C101LF
ref: 8

EMBLEM,SUZUKI

€ 13.50

9

9461133E00
ref: 9

WINDSCREEN

€ 148.00

10

0913905025
ref: 10

SCREW(5X14)

€ 2.00

11

0832201053
ref: 11

WASHER

€ 2.50

12

0915905019
ref: 12

NUT

€ 5.50

13

9441933E00
ref: 13

LID,BODY COWLING,LOWER

€ 17.00

14

0324115123
ref: 14

SCREW

€ 2.50

15

0914805038
ref: 15

NUT

€ 2.50
