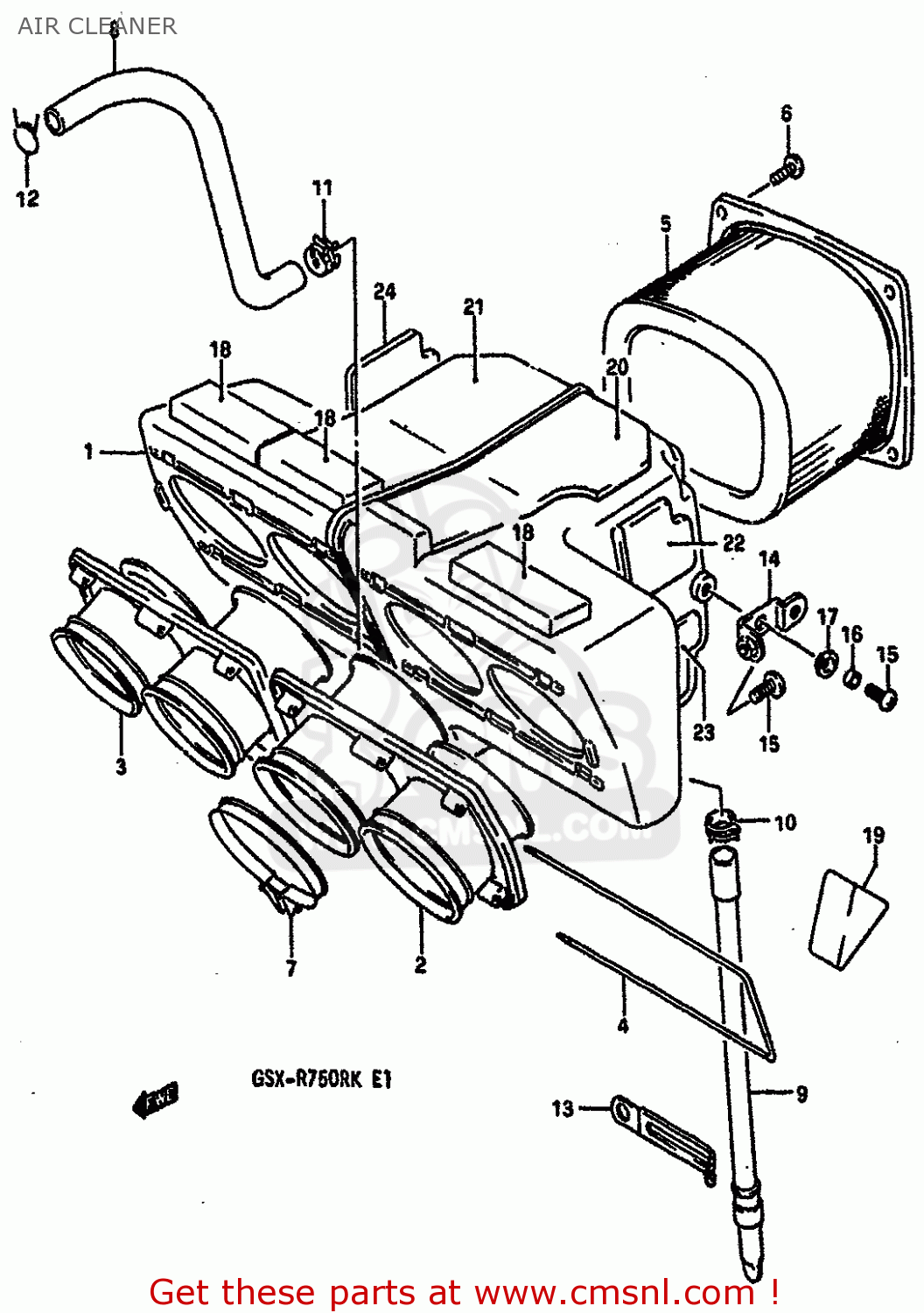

AIR CLEANER

ref

part #

description

quantity

1

1372007D00
ref: 1

CASE,AIR CLEANER

€ 147.00

2

1388007D00
ref: 2

TUBE,OUTLET,L

€ 86.00

3

1389007D00
ref: 3

TUBE,OUTLET,R

€ 86.00

4

1389917C00
ref: 4

SHAFT,OUTLET TUBE

€ 10.50

5

1378017C00
ref: 5

FILTER ASSY,AIR CLEANER

€ 49.50

6

0214205164
ref: 6

SCREW

€ 2.50

7

0940264205
ref: 7

CLAMP

€ 6.00

8

1385417C01
ref: 8

TUBE,BREATHER

€ 15.00

9

1387011417
ref: 9

DRAIN TUBE

€ 13.50

10

0940113406
ref: 10

CLIP

€ 2.50

11

0940114301
ref: 11

CLIP

€ 2.00

12

0940116402
ref: 12

CLIP

€ 2.00

13

0940410404
ref: 13

CLAMP

€ 2.50

14

1376017C01
ref: 14

BRACKET,AIR CLEANER CASE

€ 7.00

15

0214206166
ref: 15

SCREW

€ 2.50

16

0918006142
ref: 16

SPACER

€ 1.50

17

0916109003
ref: 17

WASHER

€ 2.50

18

1384817C00
ref: 18

CUSHION,AIR CLEANER CASE

€ 3.50

19

1389717C00
ref: 19

CUSHION,AIR VENT HOSE

€ 9.00

20

1384217C10
ref: 20

SHEET,AIR CLEANER NO.1

€ 14.50

21

1384317C10
ref: 21

SHEET,AIR CLEANER NO.2

€ 13.00

22

1384417C10
ref: 22

SHEET,AIR CLEANER NO.3

€ 6.50

23

1384517C10
ref: 23

SHEET,AIR CLEANER NO.4

€ 6.50

24

1384617C10
ref: 24

SHEET,AIR CLEANER NO.5

€ 0.00

all assemblies
