FRONT FENDER

GSXR750R 1989 (K) (E01 E02 E04 E22)

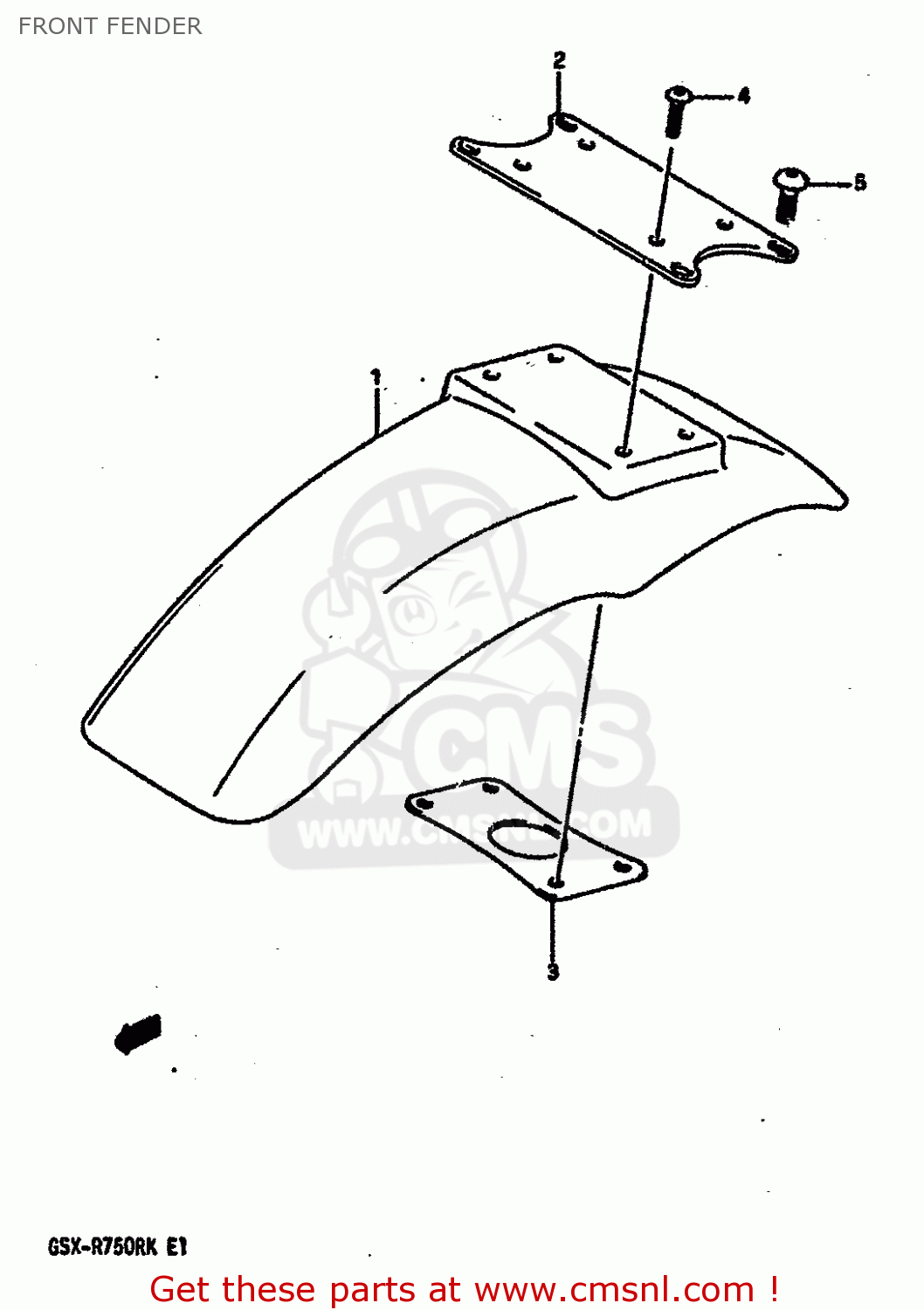

Front fender diagram GSXR750R 1989 (K) (E01 E02 E04 E22)

FRONT FENDER GSXR750R 1989 (K) (E01 E02 E04 E22)

FRONT FENDER GSXR750R 1989 (K) (E01 E02 E04 E22)

prices are in EUR

ref

part #

description

quantity

1

5311107D1033N
ref: 1

FENDER,FR

€ 225.50

2

5311417C01
ref: 2

BRACE,FRONT FENDER

€ 49.50

3

5321017C00
ref: 3

BRACE,FR FENDER INNER

€ 9.00

4

0913905032
ref: 4

SCREW(5X18)

€ 2.50

5

0913908007
ref: 5

SCREW(8X16)

€ 4.50
