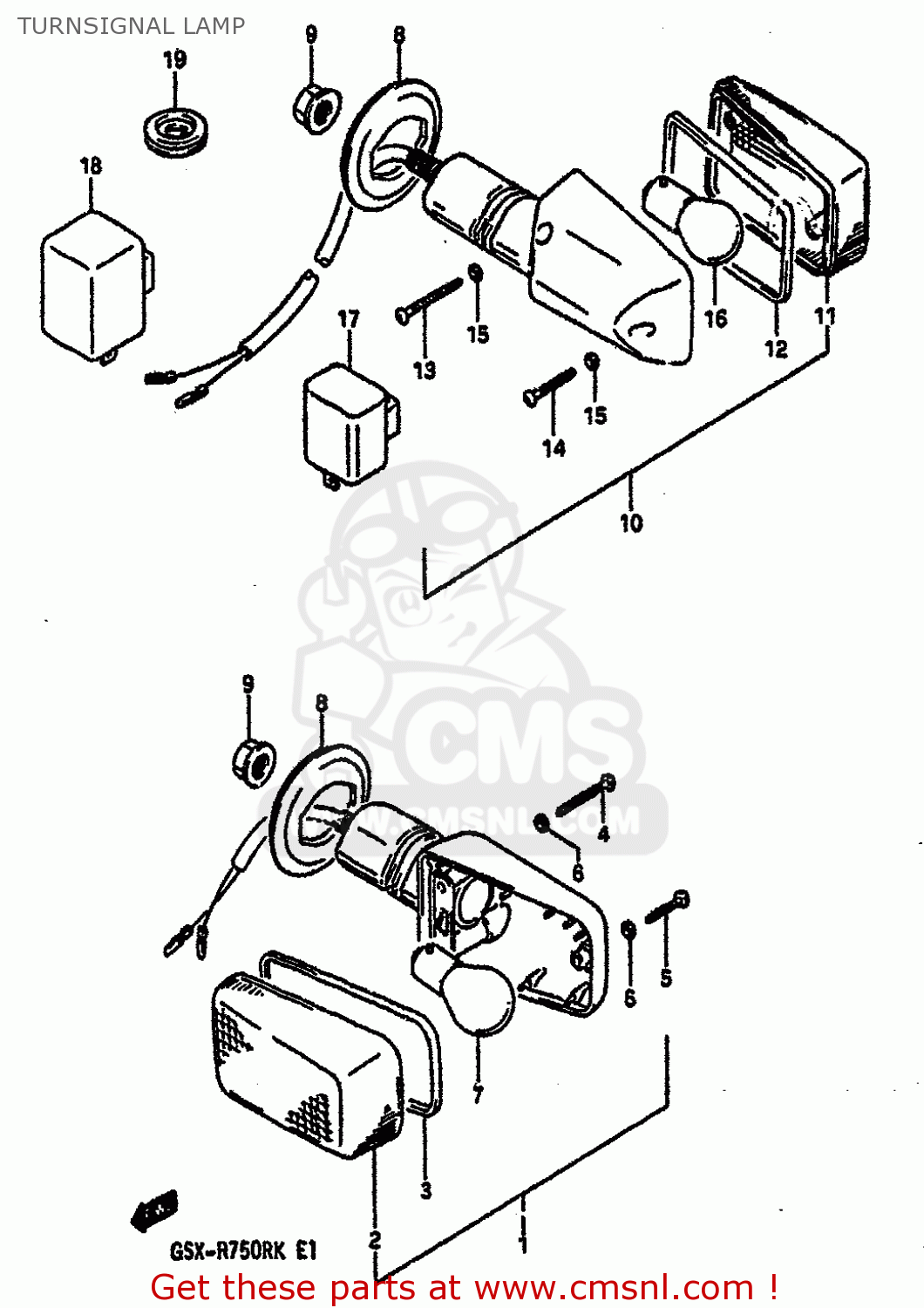

TURNSIGNAL LAMP

ref

part #

description

quantity

1-1

3560112C11
ref: 1-1

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 81.00

1-2

3560117C21
ref: 1-2
E4,E22

LAMP ASSEMBLY,FRONT TURN SIGNAL

€ 70.50

2

3561217C20
ref: 2

LENS

€ 6.50

3

3561327A00
ref: 3

GASKET (NAS)

€ 3.00

4

3562327A00
ref: 4

SCREW(3X30)

€ 1.50

5

3572540511
ref: 5

SCREW

€ 1.50

6

3562727A02
ref: 6

GASKET (NAS)

€ 1.50

7

0947112045
ref: 7

BULB(12V21W)

€ 5.00

8

3567427A01
ref: 8

GROMMET

€ 13.50

9

0831626105
ref: 9

NUT

€ 3.50

10-1

3560317C41999
ref: 10-1

LAMP ASSY,RR TURNSIGNAL

€ 76.00

10-2

3560317C51999
ref: 10-2
E2,E22

LAMP ASSY,RR TURNSIGNAL

€ 68.00

11

3565217C20
ref: 11

LENS

€ 6.50

12

3561327A00
ref: 12

GASKET (NAS)

€ 3.00

13

3562327A00
ref: 13

SCREW(3X30)

€ 1.50

14

3572540511
ref: 14

SCREW

€ 1.50

15

3562727A02
ref: 15

GASKET (NAS)

€ 1.50

16

0947112045
ref: 16

BULB(12V21W)

€ 5.00

17

3861031310
ref: 17

RELAY ASSEMBLY,TURN SIGNAL

€ 54.50

18

3861045091
ref: 18
E22

RELAY ASSY,TUR

€ 67.50

19

0930807013
ref: 19

GROMMET

€ 3.50

all assemblies
